WorkCentre Pro 665/685/765/785

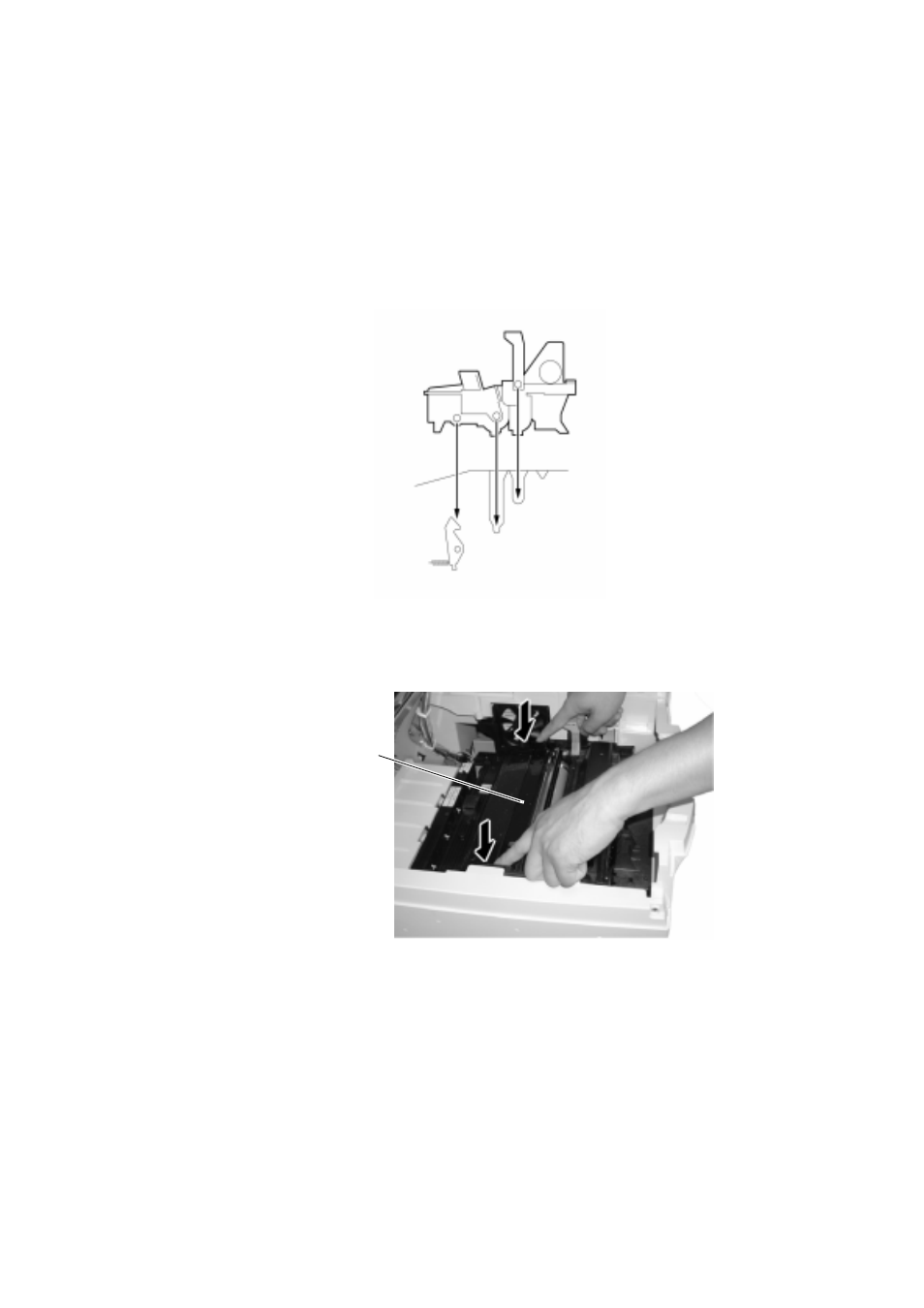

The following figure shows how the shafts on the Developer
Assembly align with the slots.

7.

Press firmly on the green squares on the Drum Unit until the
Drum Unit clicks into place. The following figure shows how to
press the Drum Unit into place.

028

Drum Unit

029
