Chapter 6 Tutorials
XGS-4728F User’s Guide
70
8
Click the VLAN Status link in the Static VLAN screen and then the VLAN Port
Setting link in the VLAN Status screen.

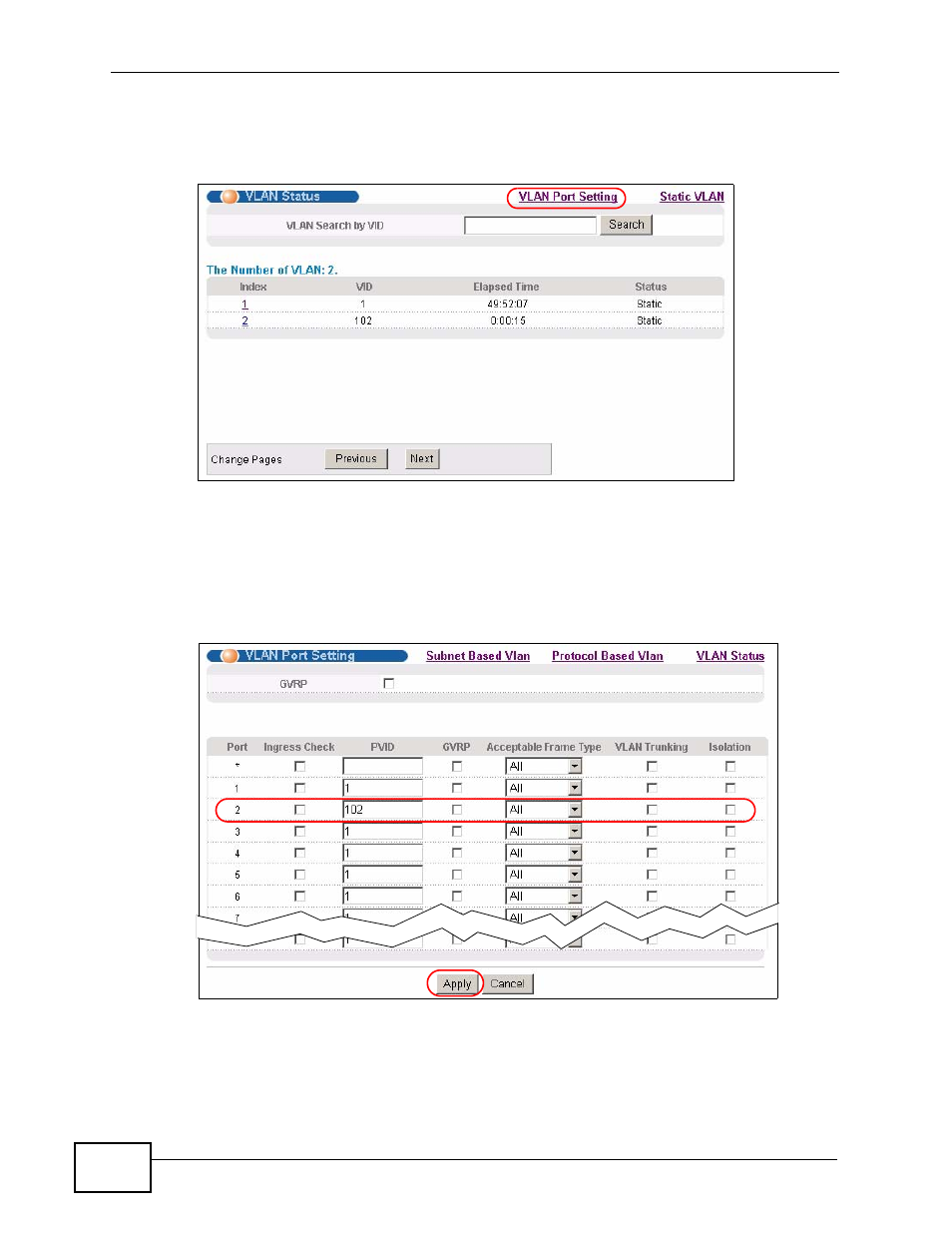

Figure 34 Tutorial: Click the VLAN Port Setting Link
9
Enter 102 in the PVID field for port 2 to add a tag to incoming untagged frames
received on that port so that the frames are forwarded to the VLAN group that the
tag defines.
10
Click Apply to save your changes back to the run-time memory.
Figure 35 Tutorial: Add Tag for Frames Received on Port 2
11
Click the Save link in the upper right corner of the web configurator to save your
configuration permanently.
