Click Advanced Applications > Static MAC Forwarding in the navigation panel
to display the configuration screen as shown.

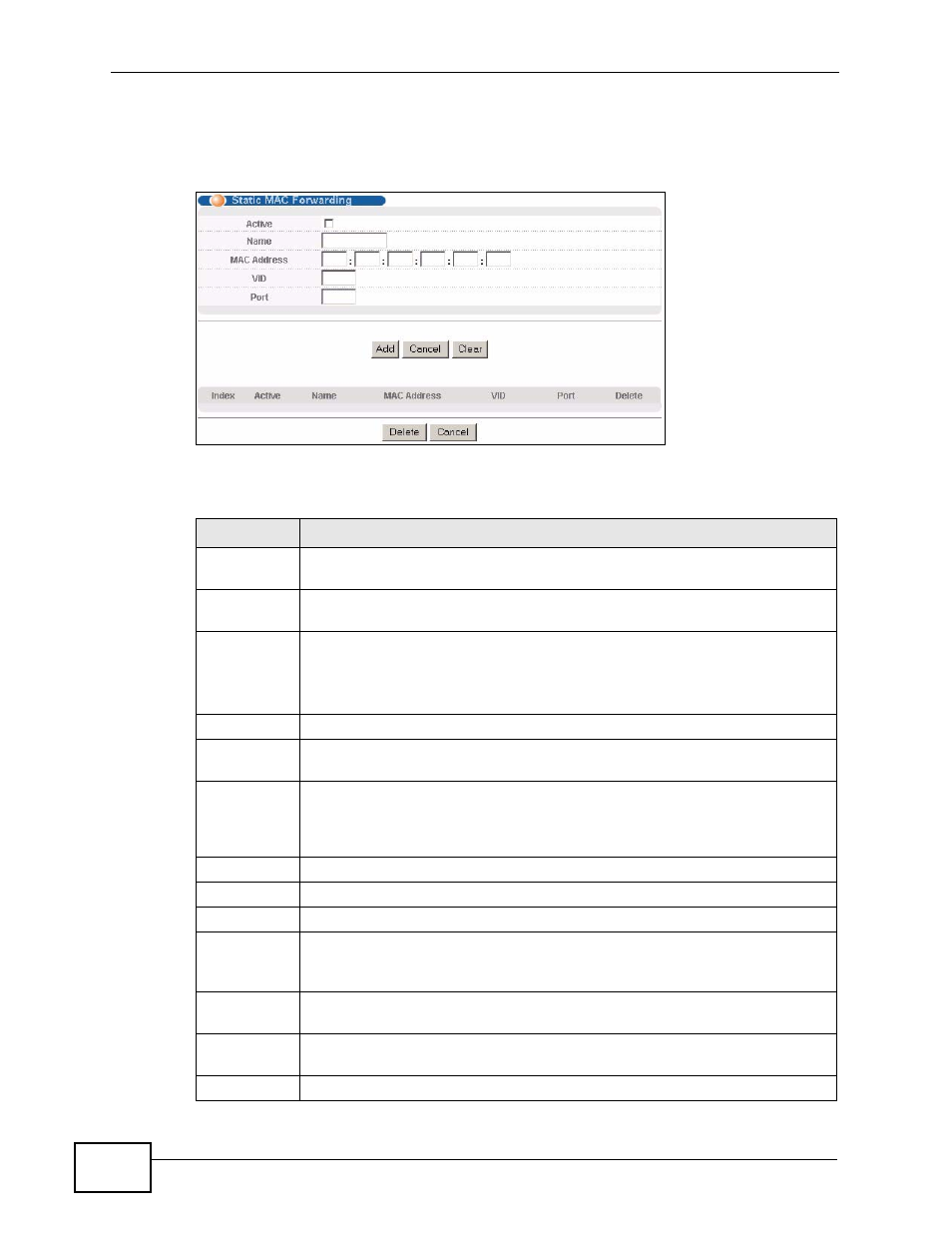

Figure 57 Advanced Application > Static MAC Forwarding
The following table describes the labels in this screen.
Table 24 Advanced Application > Static MAC Forwarding
LABEL DESCRIPTION
Active Select this check box to activate your rule. You may temporarily deactivate
a rule without deleting it by clearing this check box.
Name Enter a descriptive name for identification purposes for this static MAC
address forwarding rule.
MAC Address Enter the MAC address in valid MAC address format, that is, six
hexadecimal character pairs.
Note: Static MAC addresses do not age out.
VID Enter the VLAN identification number.
Port Enter the port where the MAC address entered in the previous field will be
automatically forwarded.
Add Click Add to save your rule to the Switch’s run-time memory. The Switch
loses this rule if it is turned off or loses power, so use the Save link on the
top navigation panel to save your changes to the non-volatile memory
when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Clear Click Clear to reset the fields to the factory defaults.
Index Click an index number to modify a static MAC address rule for a port.
Active This field displays whether this static MAC address forwarding rule is active
(Yes) or not (No). You may temporarily deactivate a rule without deleting
it.
Name This field displays the descriptive name for identification purposes for this
static MAC address-forwarding rule.
MAC Address This field displays the MAC address that will be forwarded and the VLAN
identification number to which the MAC address belongs.
VID This field displays the ID number of the VLAN group.
