Chapter 37 VRRP
XGS-4728F User’s Guide
319
37.3.4 Configuring VRRP Parameters
View the VRRP configuration summary at the bottom of the screen.

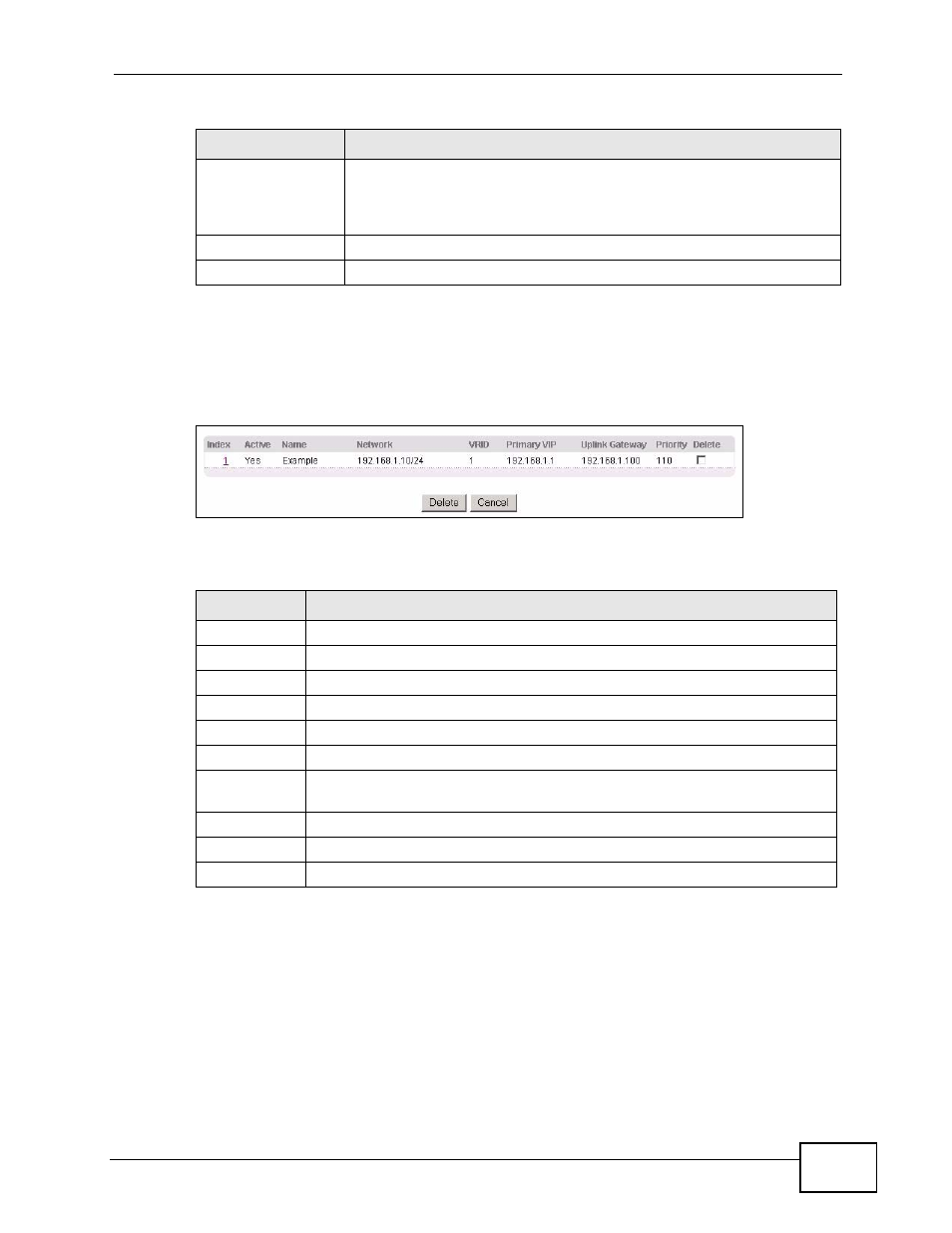

Figure 184 VRRP Configuration: Summary
The following table describes the labels in this screen.
37.4 VRRP Configuration Examples
The following sections show two VRRP configuration examples on the Switch.
Add Click Add to save your changes to the Switch’s run-time memory.
The Switch loses these changes if it is turned off or loses power, so
use the Save link on the top navigation panel to save your changes
to the non-volatile memory when you are done configuring.
Cancel Click Cancel to discard all changes made in this table.
Clear Click Clear to set the above fields back to the factory defaults.
Table 118 IP Application > VRRP Configuration > VRRP Parameters (continued)
LABEL DESCRIPTION
Table 119 VRRP Configuring: VRRP Parameters
LABEL DESCRIPTION
Index This field displays the index number of an entry.
Active This field shows whether a VRRP entry is enabled (Yes) or disabled (No).
Name This field displays a descriptive name of an entry.
Network This field displays the IP address and subnet mask of an interface.
VRID This field displays the ID number of a virtual router.
Primary VIP This field displays the IP address of the primary virtual router.
Uplink
Gateway This field displays the IP address of the uplink gateway.
Priority This field displays the priority level (1 to 255) of the entry.
Delete Click Delete to remove the selected entry from the summary table.
Cancel Click Cancel to clear the Delete check boxes.
