Chapter 24 Multicast
XGS-4728F User’s Guide
204
screen as shown. See
for more information on IGMP
Snooping VLAN.

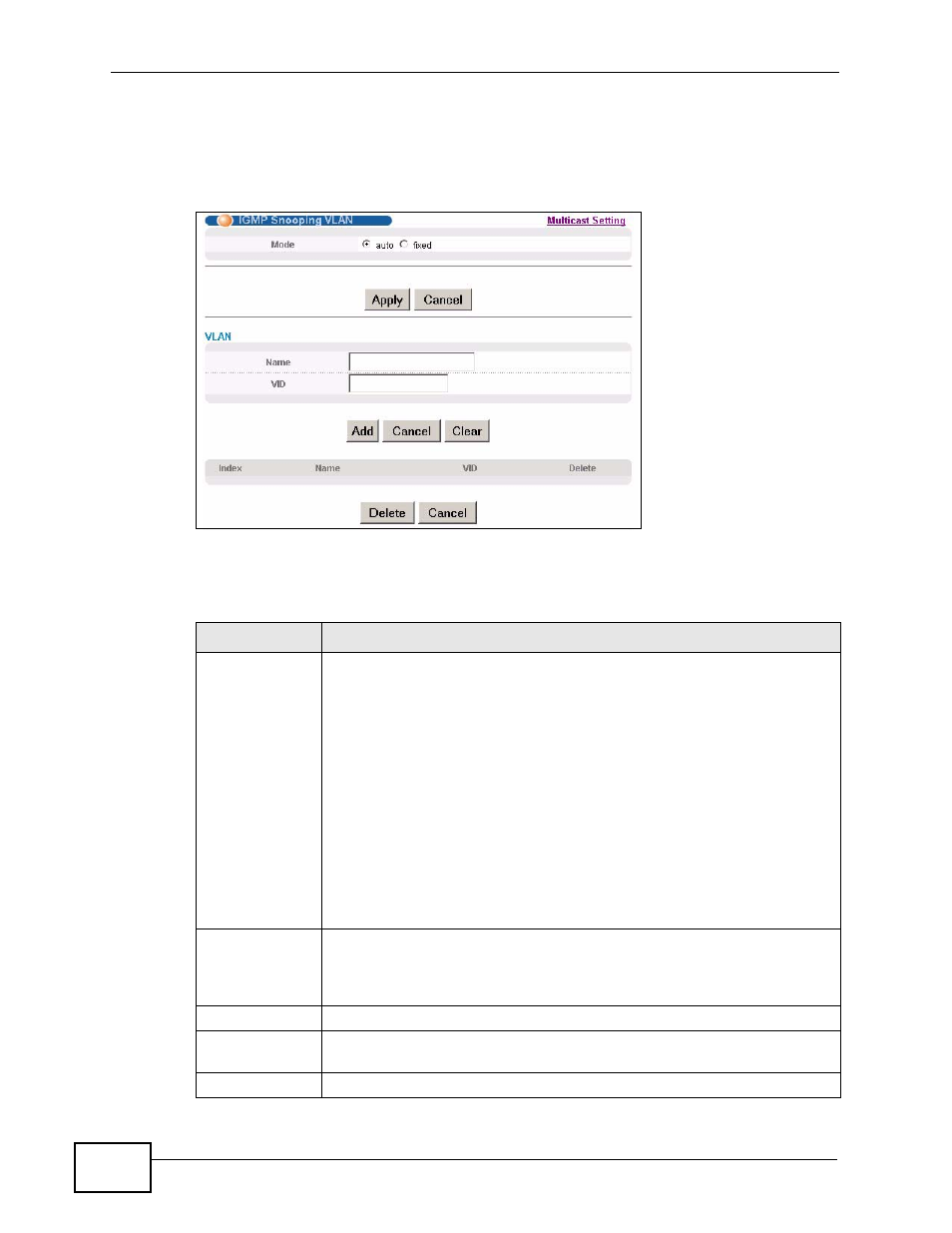

Figure 104 Advanced Application > Multicast > Multicast Setting > IGMP Snooping
VLAN
The following table describes the labels in this screen.
Table 63 Advanced Application > Multicast > Multicast Setting > IGMP Snooping
VLAN
LABEL
DESCRIPTION
Mode Select
auto to have the Switch learn multicast group membership
information of any VLANs automatically.
Select fixed to have the Switch only learn multicast group membership
information of the VLAN(s) that you specify below.
In either auto or fixed mode, the Switch can learn up to 16 VLANs
(including up to five VLANs you configured in the MVR screen). For
example, if you have configured one multicast VLAN in the MVR screen,
you can only specify up to 15 VLANs in this screen.
The Switch drops any IGMP control messages which do not belong to
these 16 VLANs.
Note: You must also enable IGMP snooping in the Multicast
Setting screen first.
Apply
Click Apply to save your changes to the Switch’s run-time memory. The
Switch loses these changes if it is turned off or loses power, so use the
Save link on the top navigation panel to save your changes to the non-
volatile memory when you are done configuring.
Cancel
Click Cancel to begin configuring this screen afresh.
VLAN
Use this section of the screen to add VLANs upon which the Switch is to
perform IGMP snooping.
Name
Enter the descriptive name of the VLAN for identification purposes.
