9.10 Create an IP-based VLAN Example
This example shows you how to create an IP VLAN which includes ports 1, 4 and
8. Follow these steps using the screen below:
1
Activate this protocol based VLAN.
2
Type the port number you want to include in this protocol based VLAN. Type 1.
3
Give this protocol-based VLAN a descriptive name. Type IP-VLAN.
4
Select the protocol. Leave the default value IP.
5
Type the VLAN ID of an existing VLAN. In our example we already created a static
VLAN with an ID of 5. Type 5.
6
Leave the priority set to 0 and click Add.

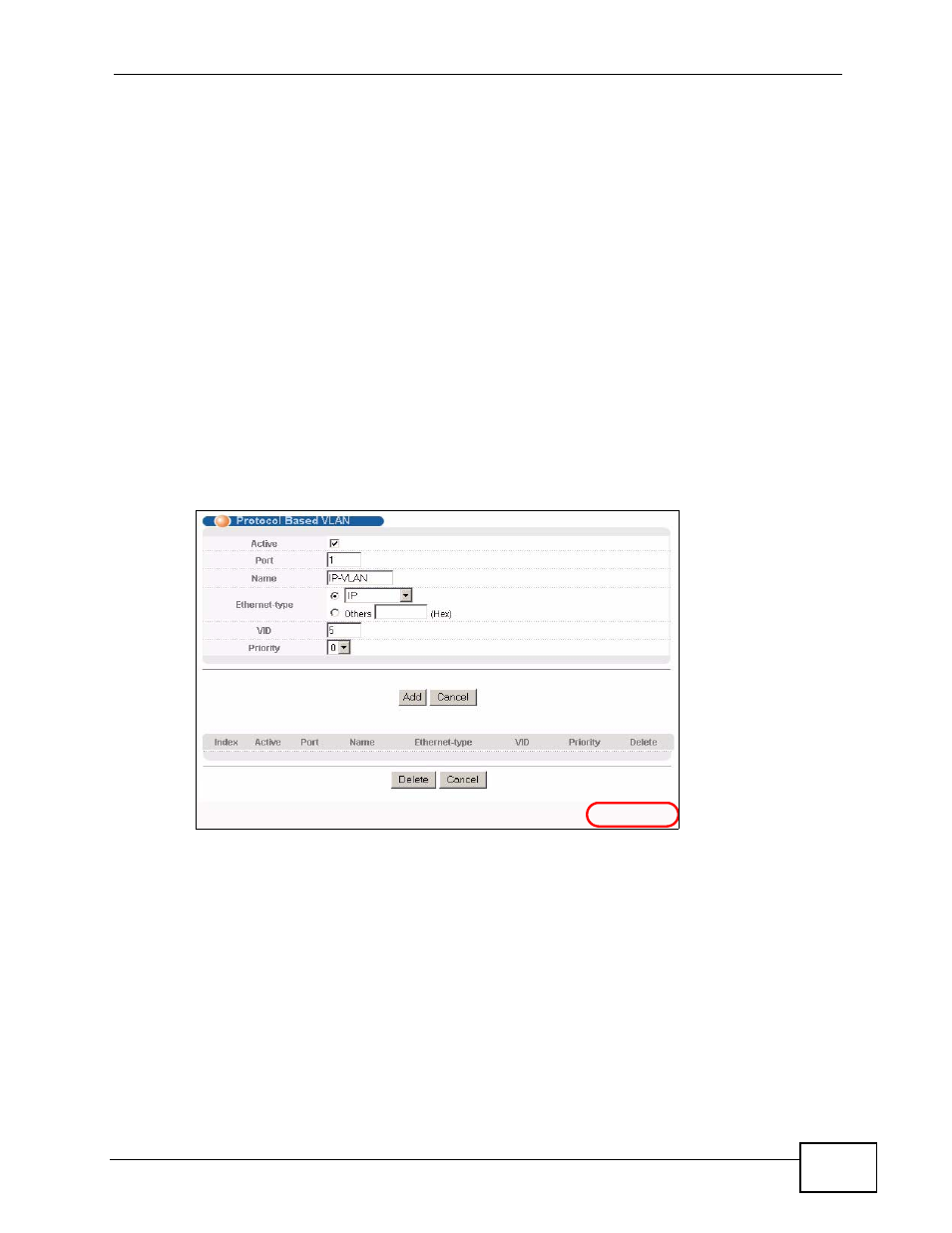

Figure 54 Protocol Based VLAN Configuration Example
To add more ports to this protocol based VLAN.
1
Click the index number of the protocol based VLAN entry. Click 1
2
Change the value in the Port field to the next port you want to add.
3
Click Add.
EXAMPLE
