XGS-4728F User’s Guide
35
C
H A P T E R
3
Hardware Overview
This chapter describes the front panel and rear panel of the Switch and shows you
how to make the hardware connections.
3.1 Front Panel Connections

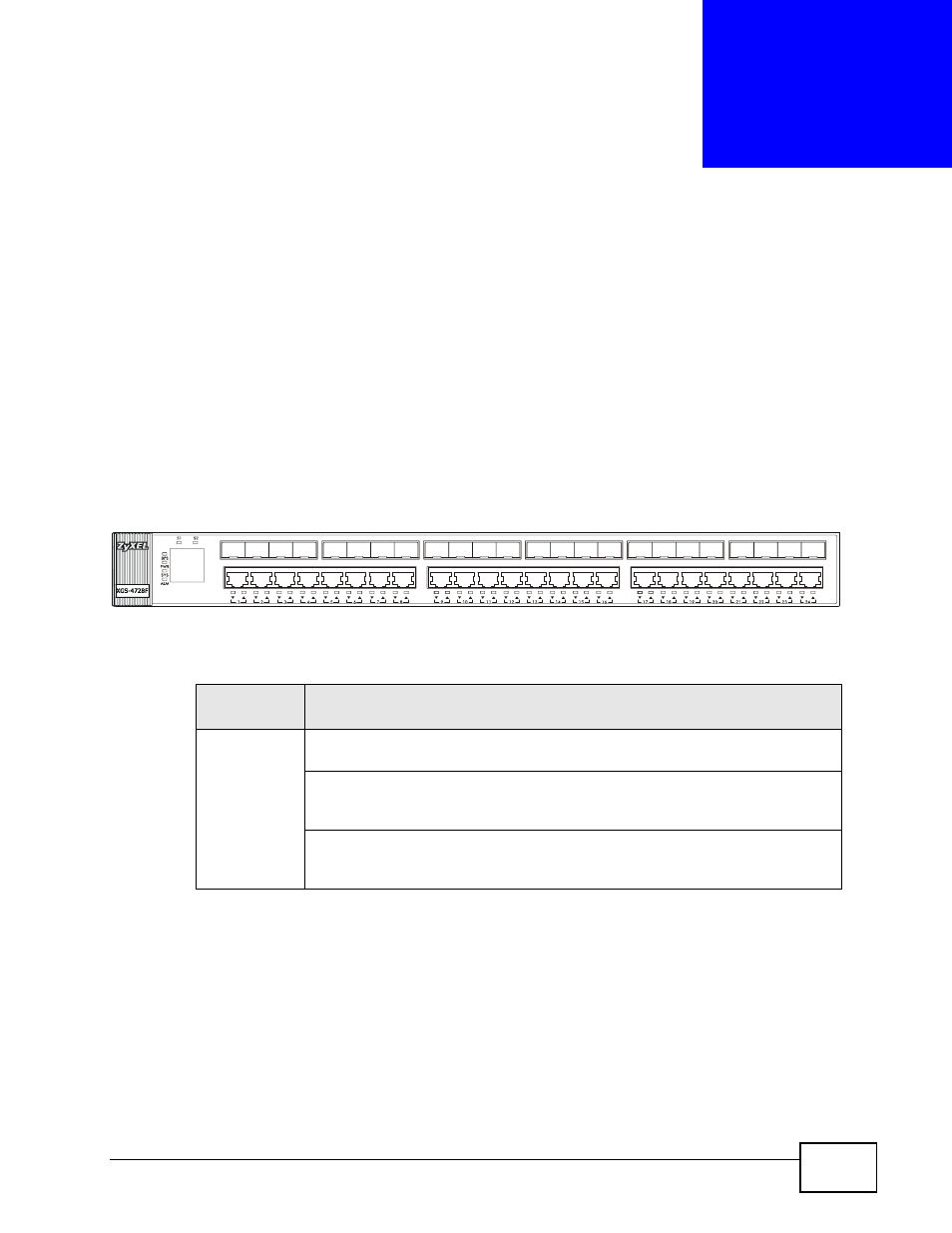

The figure below shows the front panel of the Switch.
Figure 8 Front Panel
The following table describes the ports.
3.1.1 Dual Personality Interfaces
There are 24 Dual Personality interfaces, comprising 24 1000Base-T/mini-GBIC
combo ports. For each interface you can connect either to the 1000Base-T port or
the mini-GBIC port. The mini-GBIC ports have priority over the 1000Base-T ports.
This means that if a mini-GBIC port and the corresponding 1000Base-T port are
connected at the same time, the 1000Base-T port will be disabled.
Table 1 Panel Connections
CONNECTO
R
DESCRIPTION
24 Dual
Personality
Interfaces Each interface has one 1000Base-T copper RJ-45 port and one mini-GBIC
(Gigabit Interface Converter) fiber port, with one port active at a time.
• 24 1000Base-T Ports:
Connect these ports to high-bandwidth backbone network Ethernet
switches using Category 5/5e/6 1000Base-T Ethernet cables.
• 24 Mini-GBIC Ports:
Use Small Form-Factor Pluggable (SFP) transceivers in these ports for
1000Base-X fiber-optic connections to backbone Ethernet switches.
