VLAN Mapping
This chapter shows you how to configure VLAN mapping on the Switch.
28.1 VLAN Mapping Overview
With VLAN mapping enabled, the Switch can map the VLAN ID and priority level of
packets received from a private network to those used in the service provider’s
network.
The Switch checks incoming traffic from the switch ports (non-management ports)
against the VLAN mapping table first, the MAC learning table and then the VLAN
table before forwarding them through the Gigabit uplink port. When VLAN
mapping is enabled, the Switch discards the tagged packets that do not match an
entry in the VLAN mapping table. If the incoming packets are untagged, the
Switch adds a PVID based on the VLAN setting.
Note: You can not enable VLAN mapping and VLAN stacking at the same time.
28.1.1 VLAN Mapping Example
In the following example figure, packets that carry VLAN ID 12 and are received
on port 3 match a pre-configured VLAN mapping rule. The Switch translates the
VLAN ID from 12 into 123 before forwarding the packets. Any packets carrying a
VLAN tag other than 12 (such as 10) and received on port 3 will be dropped.

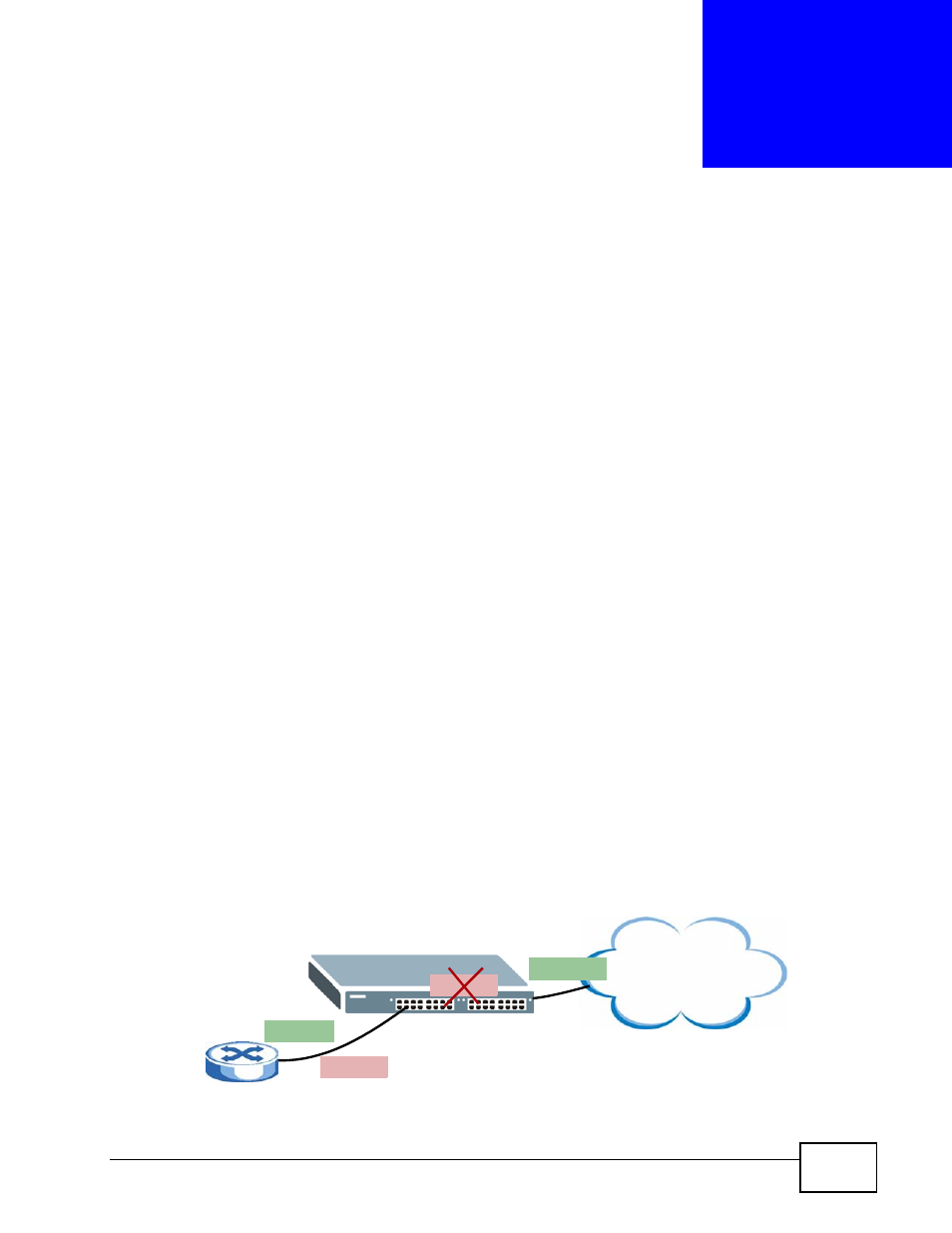

Figure 138 VLAN mapping example
Port 3 VLAN 12
VLAN 123
VLAN 10
VLAN 10
Service Provider
Network
