Chapter 2 Hardware Installation and Connection
XGS-4728F User’s Guide
33
2
Using a #2 Philips screwdriver, install the M3 flat head screws through the
mounting bracket holes into the Switch.
3
Repeat steps 1 and 2 to install the second mounting bracket on the other side of
the Switch.
4
You may now mount the Switch on a rack. Proceed to the next section.
2.2.3 Mounting the Switch on a Rack
1
Position a mounting bracket (that is already attached to the Switch) on one side of
the rack, lining up the two screw holes on the bracket with the screw holes on the
side of the rack.

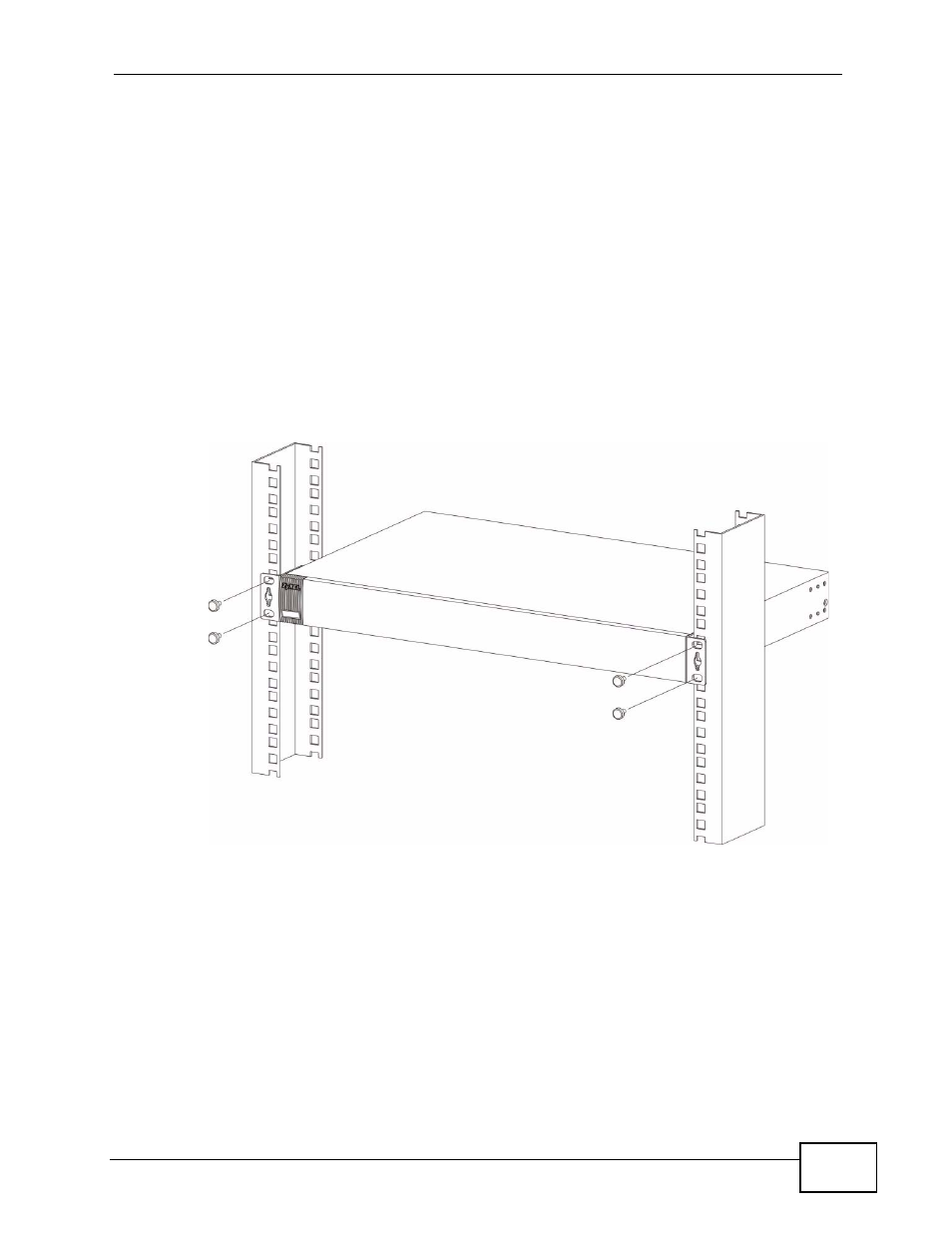

Figure 7 Mounting the Switch on a Rack
2
Using a #2 Philips screwdriver, install the M5 flat head screws through the
mounting bracket holes into the rack.
3
Repeat steps 1 and 2 to attach the second mounting bracket on the other side of
the rack.
