VR1 (refer to Section 37.4.2 on page 321 ). Configure the VRRP parameters on the
switches as shown in the figures below.

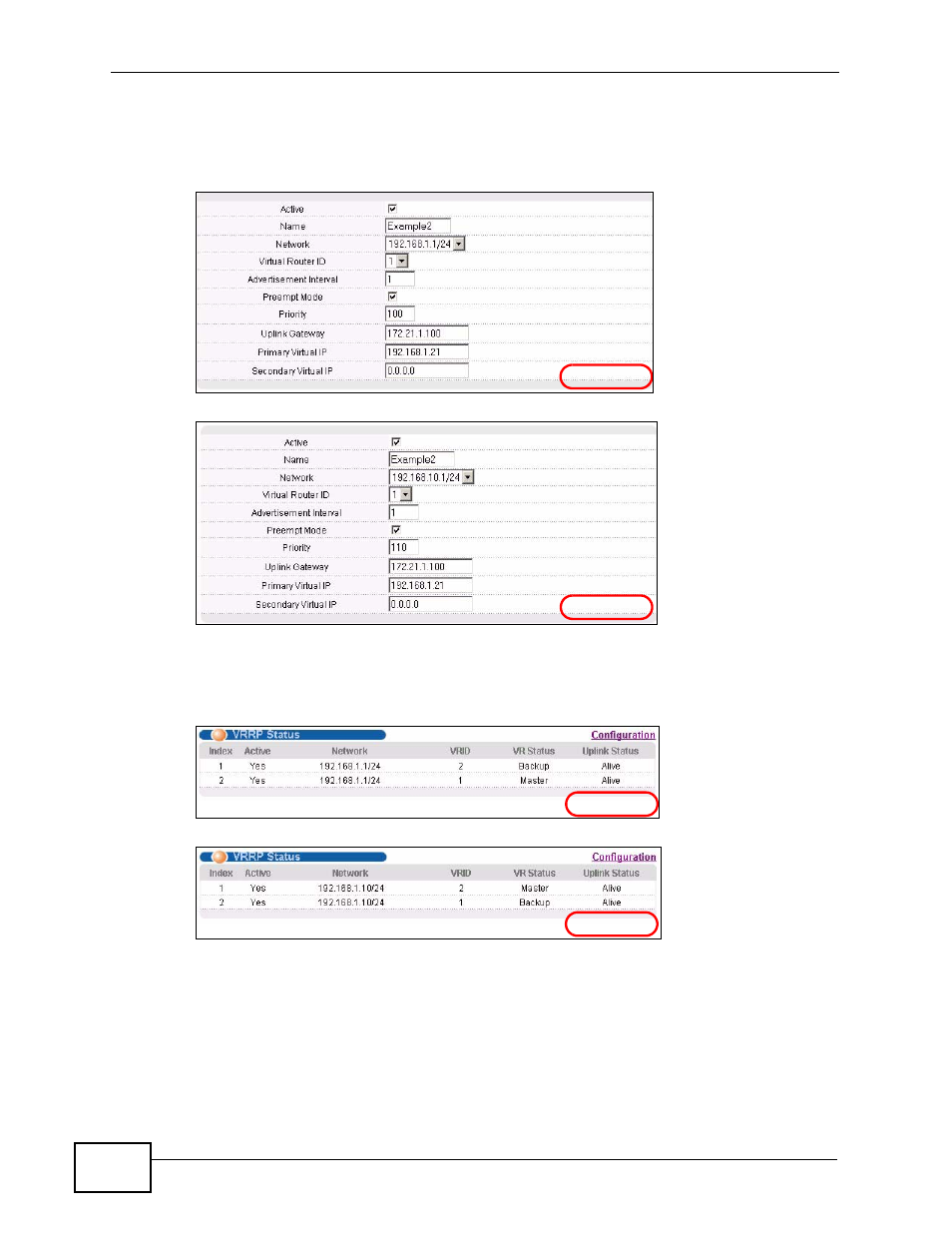

Figure 191 VRRP Example 2: VRRP Parameter Settings for VR2 on Switch A
Figure 192 VRRP Example 2: VRRP Parameter Settings for VR2 on Switch B
After configuring and saving the VRRP configuration, the VRRP Status screens for
both switches are shown next.
Figure 193 VRRP Example 2: VRRP Status on Switch A
Figure 194 VRRP Example 2: VRRP Status on Switch B
