Chapter 13 Spanning Tree Protocol
XGS-4728F User’s Guide
143
13.9 Multiple Spanning Tree Protocol Status
Click Advanced Application > Spanning Tree Protocol in the navigation panel
to display the status screen as shown next. See
Section 13.1.5 on page 128 for
more information on MSTP.
Note: This screen is only available after you activate MSTP on the Switch.

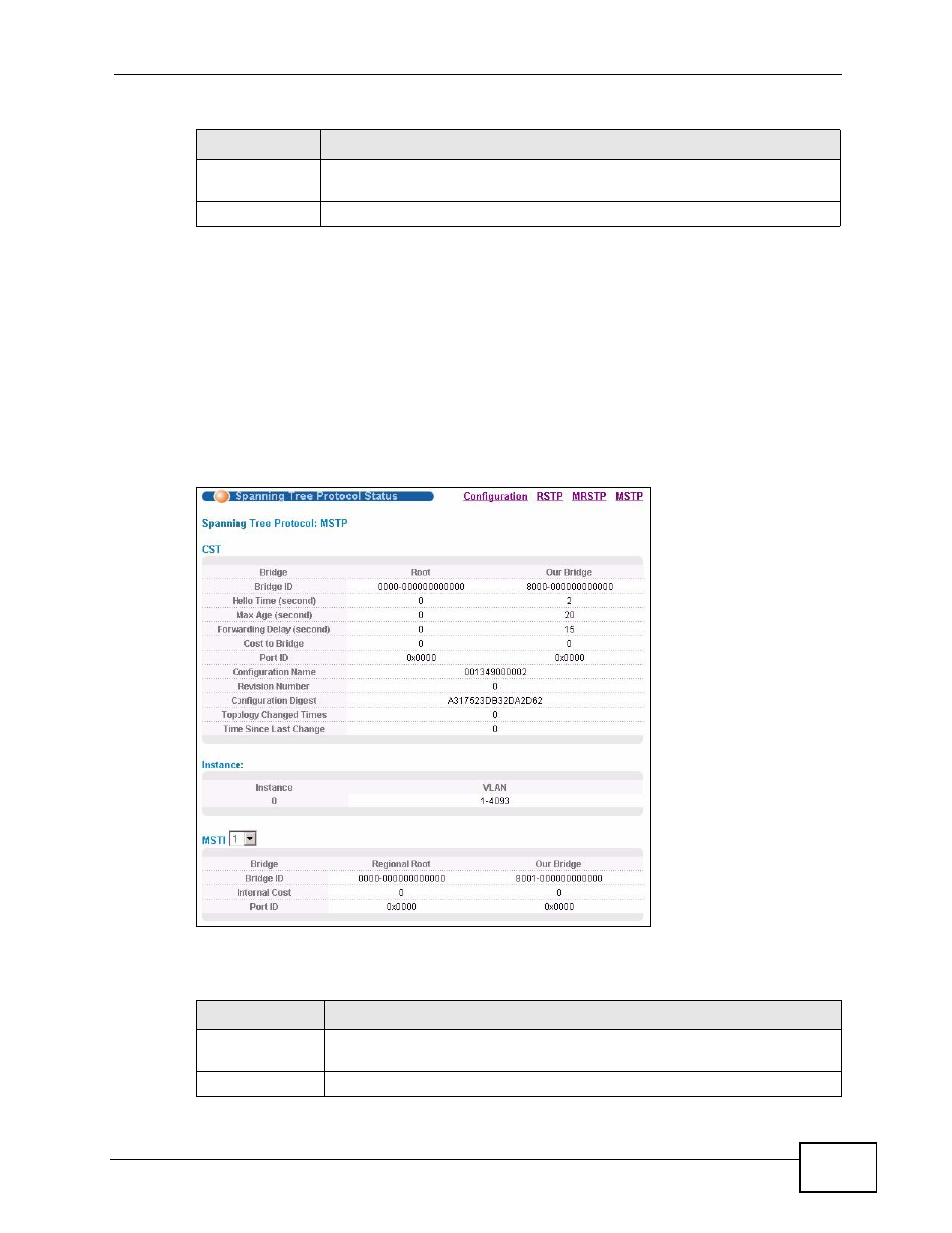

Figure 75 Advanced Application > Spanning Tree Protocol > Status: MSTP
The following table describes the labels in this screen.
Delete Check the rule(s) that you want to remove in the Delete column and
then click the Delete button.
Cancel Click Cancel to begin configuring this screen afresh.
Table 34 Advanced Application > Spanning Tree Protocol > MSTP (continued)
LABEL DESCRIPTION
Table 35 Advanced Application > Spanning Tree Protocol > Status: MSTP
LABEL DESCRIPTION
Configuration Click Configuration to specify which STP mode you want to activate.
Click MSTP to edit MSTP settings on the Switch.
CST This section describes the Common Spanning Tree settings.
