24.8 MVR Group Configuration
All source ports and receiver ports belonging to a multicast group can receive
multicast data sent to this multicast group.
Configure MVR IP multicast group address(es) in the Group Configuration
screen. Click Group Configuration in the MVR screen.
Note: A port can belong to more than one multicast VLAN. However, IP multicast
group addresses in different multicast VLANs cannot overlap.

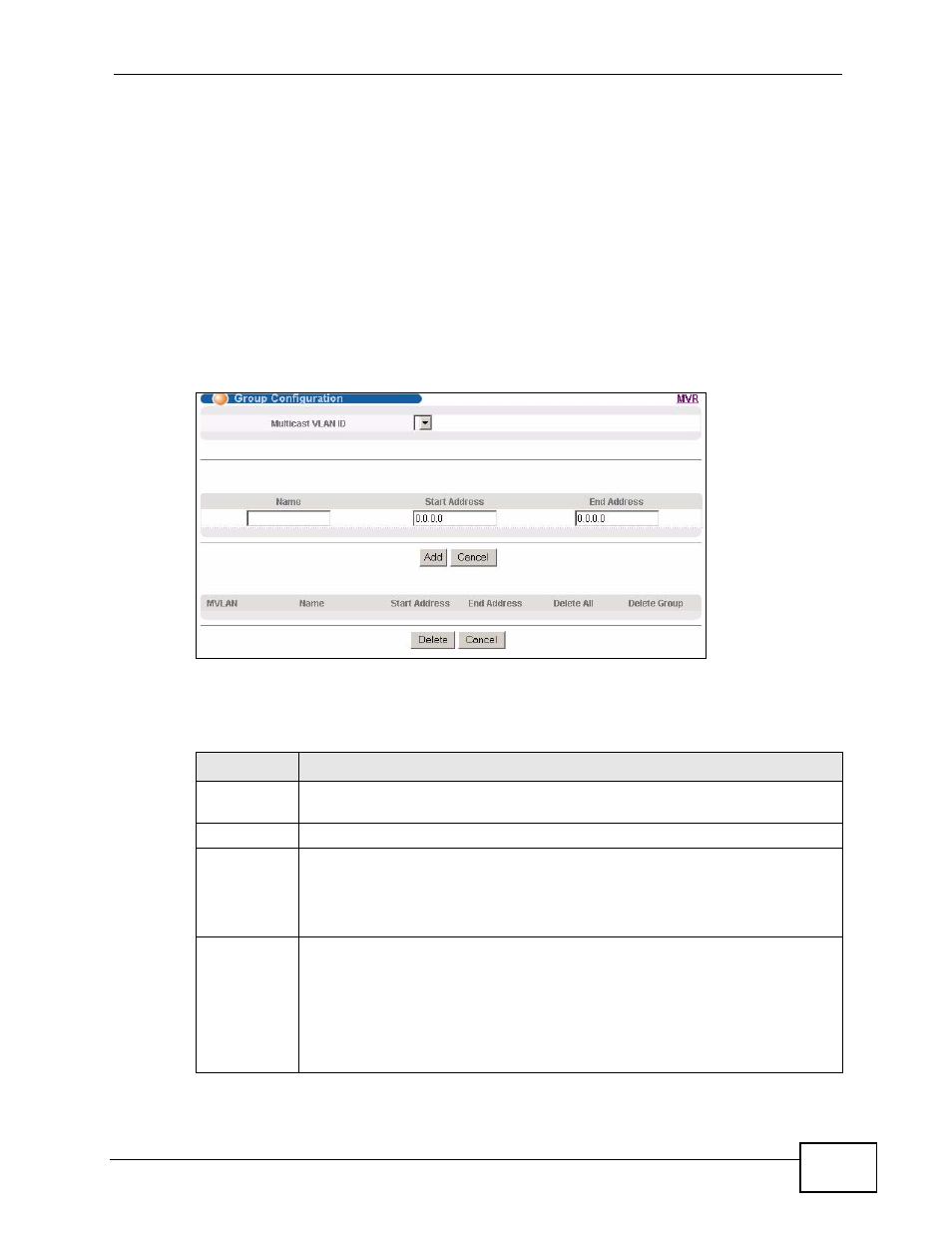

Figure 109 Advanced Application > Multicast > Multicast Setting > MVR: Group
Configuration
The following table describes the labels in this screen.
Table 66 Advanced Application > Multicast > Multicast Setting > MVR: Group
Configuration
LABEL
DESCRIPTION
Multicast
VLAN ID
Select a multicast VLAN ID (that you configured in the MVR screen) from
the drop-down list box.
Name
Enter a descriptive name for identification purposes.
Start
Address
Enter the starting IP multicast address of the multicast group in dotted
decimal notation.
for more information on IP multicast
addresses.
End Address Enter the ending IP multicast address of the multicast group in dotted
decimal notation.
Enter the same IP address as the Start Address field if you want to
configure only one IP address for a multicast group.
for more information on IP multicast
addresses.
