Chapter 24 Multicast

XGS-4728F User’s Guide

209

24.7 General MVR Configuration

Use the MVR screen to create multicast VLANs and select the receiver port(s) and
a source port for each multicast VLAN. Click Advanced Applications >
Multicast > Multicast Setting > MVR link to display the screen as shown next.

Note: You can create up to five multicast VLANs and up to 256 multicast rules on the

Switch.

Note: Your Switch automatically creates a static VLAN (with the same VID) when you

create a multicast VLAN in this screen.

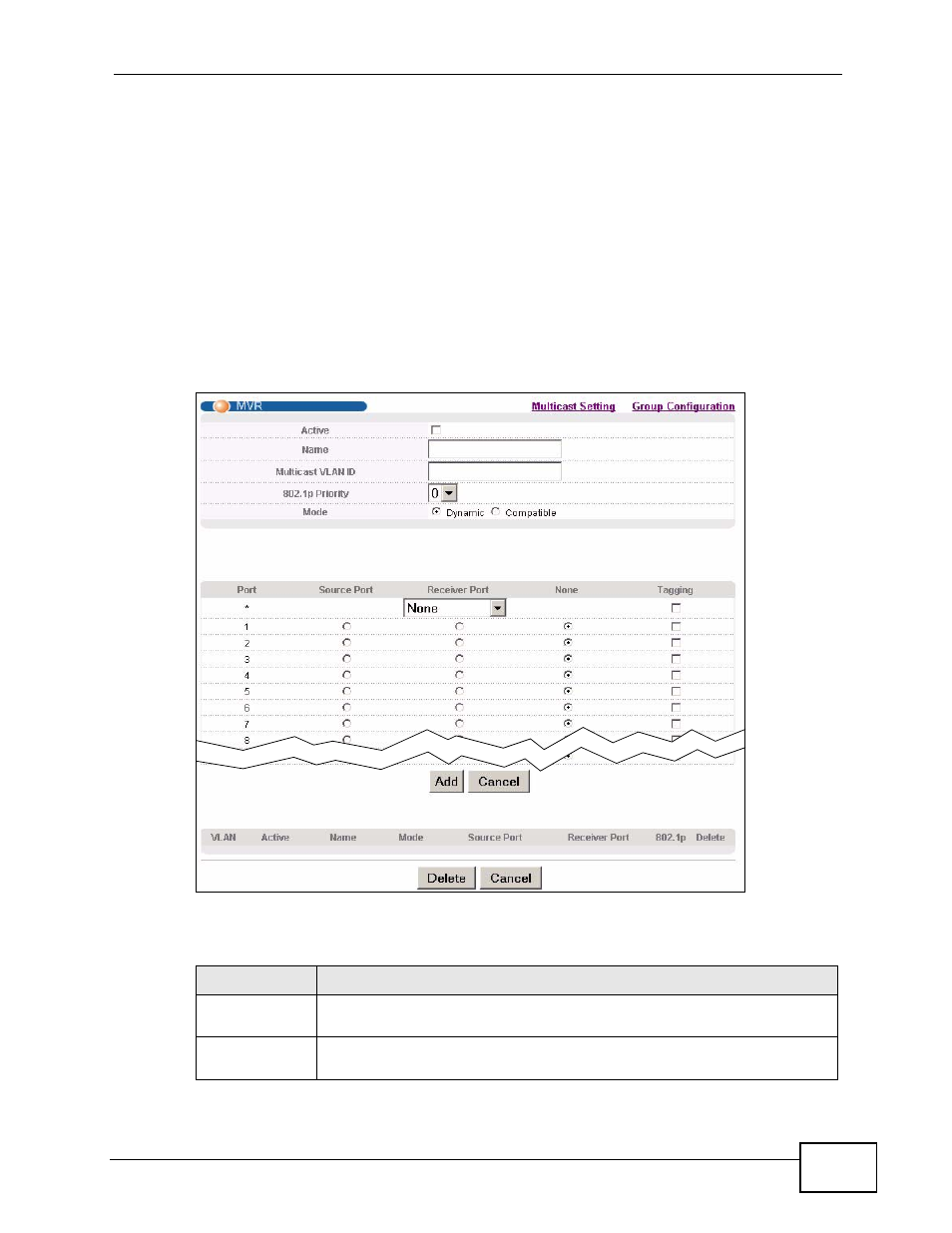

Figure 108 Advanced Application > Multicast > Multicast Setting > MVR

The following table describes the related labels in this screen.

Table 65 Advanced Application > Multicast > Multicast Setting > MVR

LABEL

DESCRIPTION

Active

Select this check box to enable MVR to allow one single multicast VLAN
to be shared among different subscriber VLANs on the network.

Name

Enter a descriptive name (up to 32 printable ASCII characters) for
identification purposes.
