Chapter 13 Spanning Tree Protocol
XGS-4728F User’s Guide
131
13.2 Spanning Tree Protocol Status Screen
The Spanning Tree Protocol status screen changes depending on what standard
you choose to implement on your network. Click Advanced Application >
Spanning Tree Protocol to see the screen as shown.

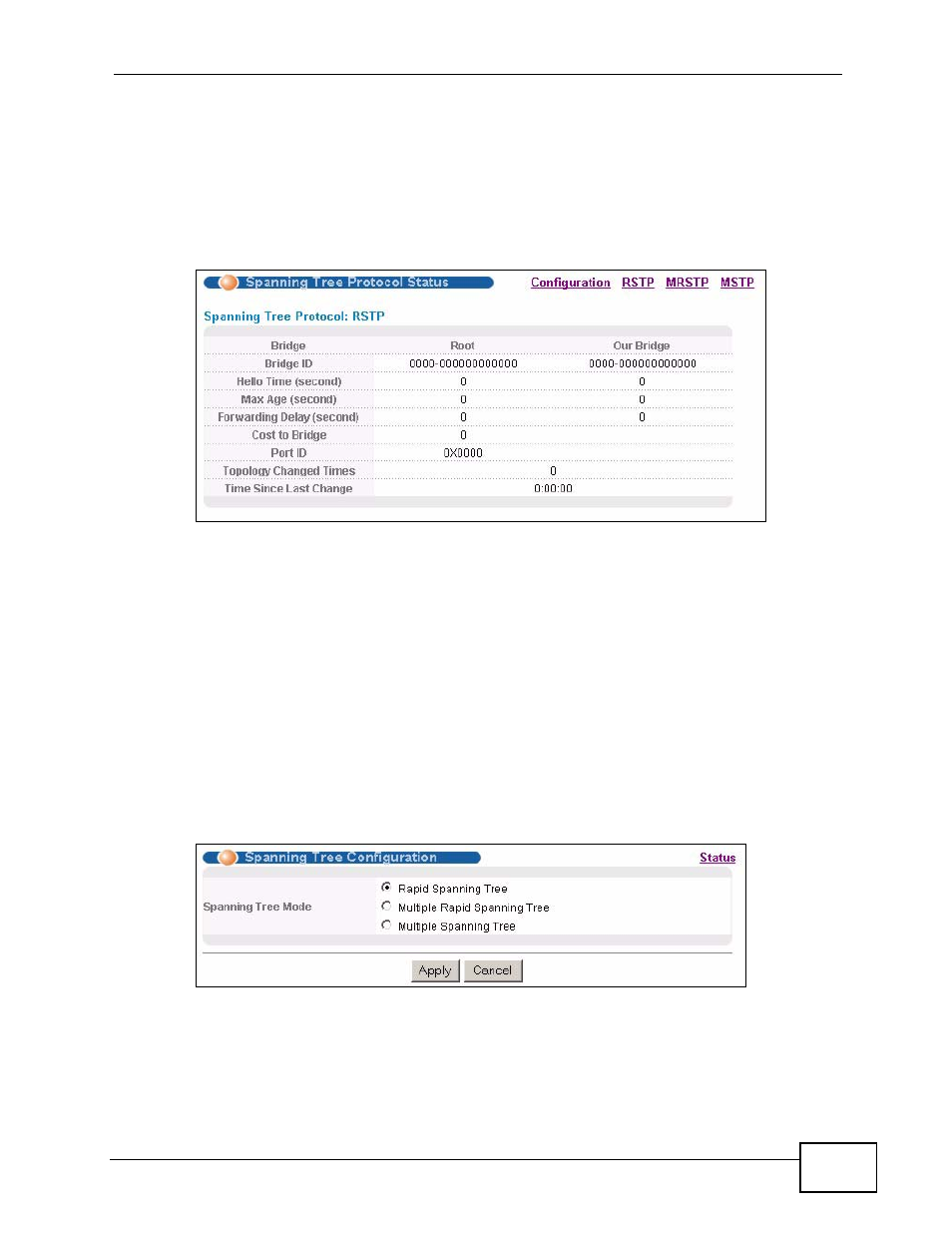

Figure 68 Advanced Application > Spanning Tree Protocol
This screen differs depending on which STP mode (RSTP, MRSTP or MSTP) you
configure on the Switch. This screen is described in detail in the section that
follows the configuration section for each STP mode. Click Configuration to
activate one of the STP standards on the Switch.
13.3 Spanning Tree Configuration
Use the Spanning Tree Configuration screen to activate one of the STP modes
on the Switch. Click Configuration in the Advanced Application > Spanning
Tree Protocol.
Figure 69 Advanced Application > Spanning Tree Protocol > Configuration
