Page 372

Chapter 44 IP Table
XGS-4728F User’s Guide
372
• If the Switch has already learned the port for this IP address, but the
destination port is the same as the port it came in on, then it filters the
packet.

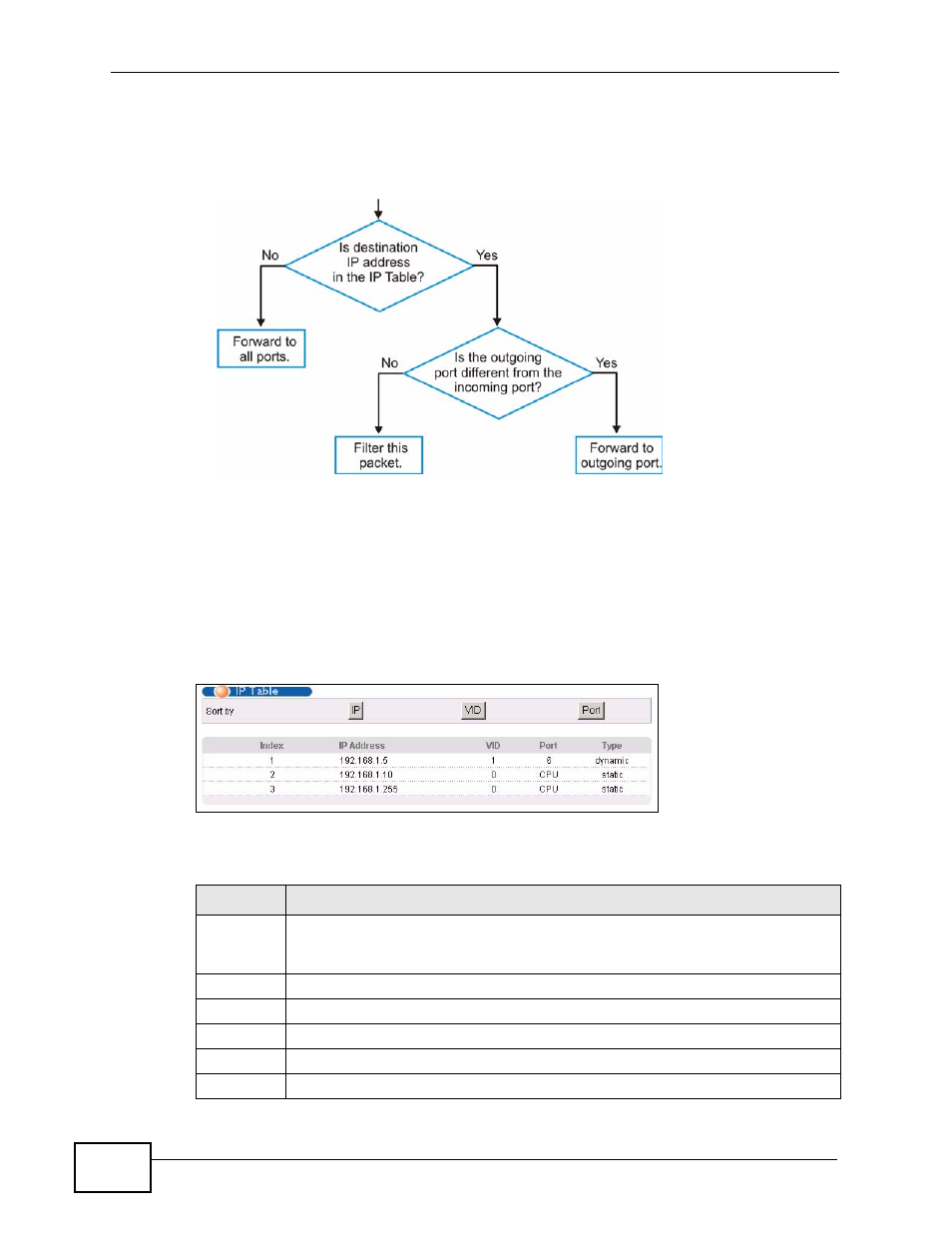

Figure 225 IP Table Flowchart
44.2 Viewing the IP Table
Click Management > IP Table in the navigation panel to display the following
screen.
Figure 226 Management > IP Table
The following table describes the labels in this screen.
Table 144 Management > IP Table
LABEL
DESCRIPTION
Sort by
Click one of the following buttons to display and arrange the data according
to that button type. The information is then displayed in the summary table
below.
IP
Click this button to display and arrange the data according to IP address.
VID
Click this button to display and arrange the data according to VLAN group.
Port
Click this button to display and arrange the data according to port number.
Index
This field displays the index number.
IP Address This is the IP address of the device from which the incoming packets came.
