Chapter 28 VLAN Mapping
XGS-4728F User’s Guide
261
28.3 Configuring VLAN Mapping
Click the VLAN Mapping Configure link in the VLAN Mapping screen to display
the screen as shown. Use this screen to enable and edit the VLAN mapping
rule(s).

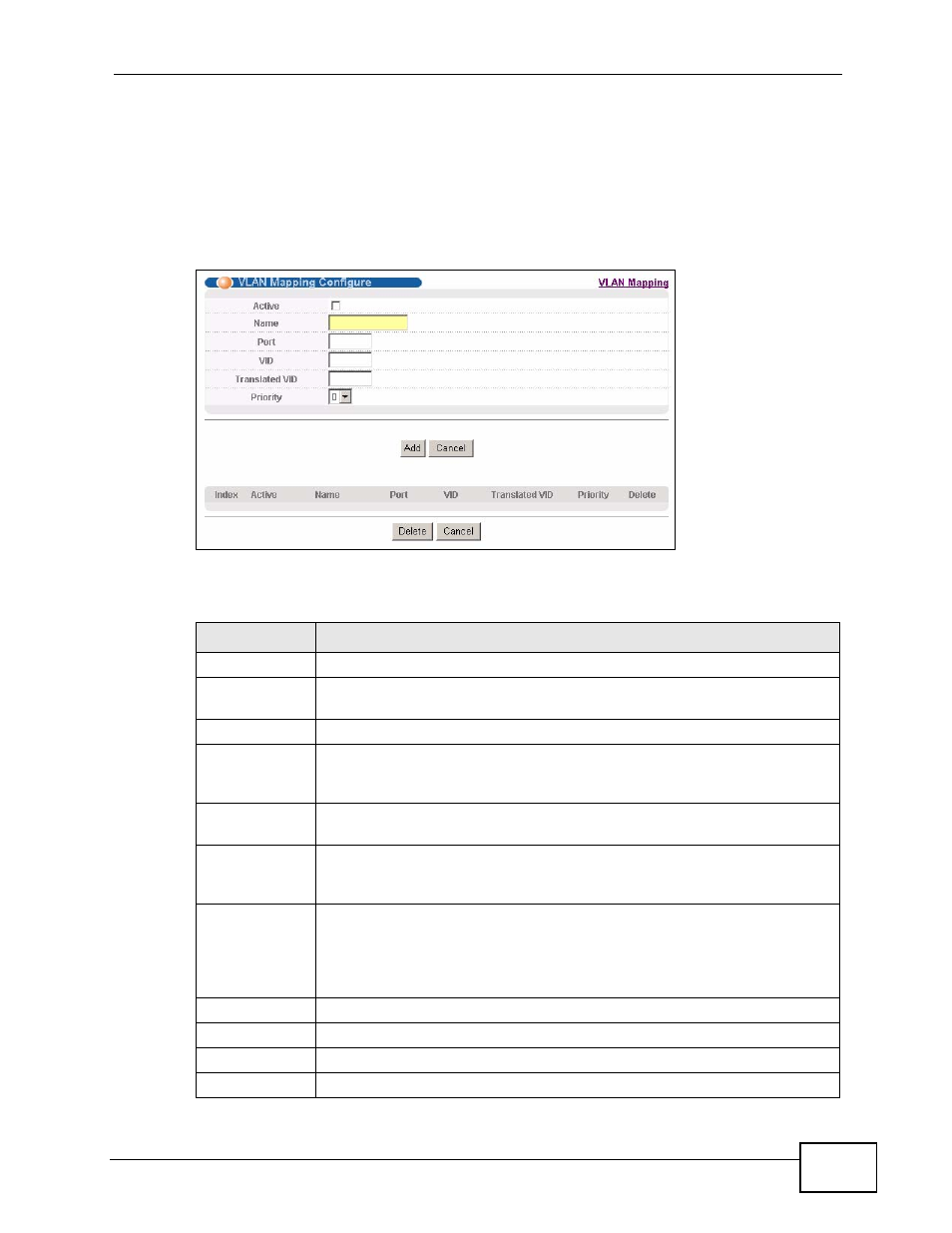

Figure 140 VLAN Mapping Configuration
The following table describes the labels in this screen.
Table 90 VLAN Mapping Configuration
LABEL DESCRIPTION
Active Check this box to activate this rule.
Name Enter a descriptive name (up to 32 printable ASCII characters) for
identification purposes.
Port Type a port to be included in this rule.
VID Enter a VLAN ID from 1 to 4094. This is the VLAN tag carried in the
packets and will be translated into the VID you specified in the
Translated VID field.
Translated VID Enter a VLAN ID (from 1 to 4094) into which the customer VID carried in
the packets will be translated.
Priority Select a priority level (from 0 to 7). This is the priority level that replaces
the customer priority level in the tagged packets or adds to the
untagged packets.
Add Click Add to insert the entry in the summary table below and save your
changes to the Switch’s run-time memory. The Switch loses these
changes if it is turned off or loses power, so use the Save link on the top
navigation panel to save your changes to the non-volatile memory when
you are done configuring.
Cancel Click Cancel to reset the fields to your previous configuration.
Index This is the number of the VLAN mapping entry in the table.
Active This shows whether this entry is activated or not.
Name This is the descriptive name for this rule.
