Chapter 26 IP Source Guard
XGS-4728F User’s Guide
247
26.6.1 ARP Inspection VLAN Status
Use this screen to look at various statistics about ARP packets in each VLAN. To
open this screen, click Advanced Application > IP Source Guard > ARP
Inspection > VLAN Status.

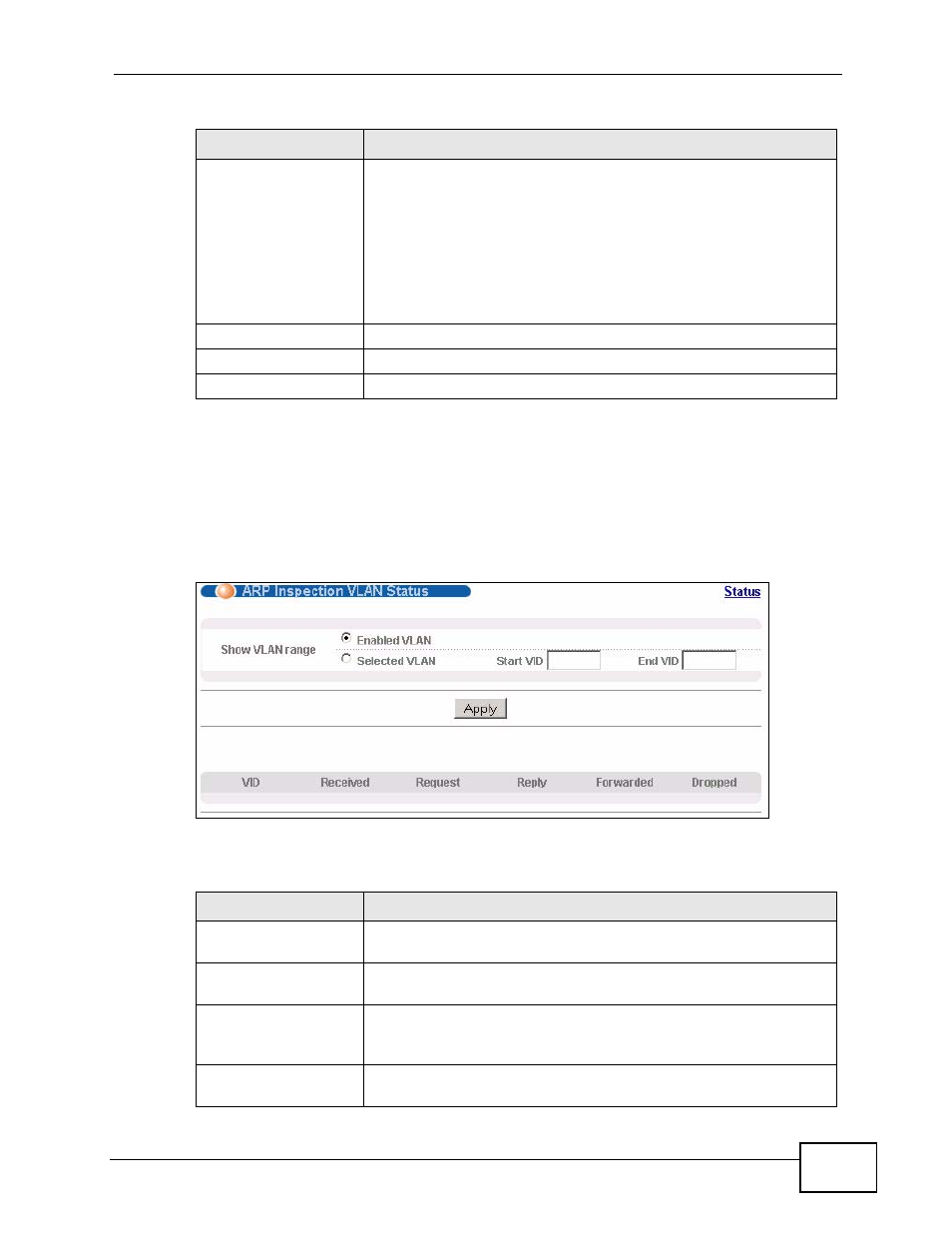

Figure 128 ARP Inspection VLAN Status
The following table describes the labels in this screen.
Reason This field displays the reason the ARP packet was discarded.
MAC+VLAN: The MAC address and VLAN ID were not in the
binding table.
IP: The MAC address and VLAN ID were in the binding table, but
the IP address was not valid.
Port: The MAC address, VLAN ID, and IP address were in the
binding table, but the port number was not valid.
Delete Select this and click Delete to remove the specified entry.
Delete Click this to remove the selected entries.
Cancel Click this to clear the Delete check boxes above.
Table 82 ARP Inspection Status (continued)
LABEL DESCRIPTION
Table 83 ARP Inspection VLAN Status
LABEL DESCRIPTION
Show VLAN range Use this section to specify the VLANs you want to look at in the
section below.
Enabled VLAN Select this to look at all the VLANs on which ARP inspection is
enabled in the section below.
Selected VLAN Select this to look at all the VLANs in a specific range in the
section below. Then, enter the lowest VLAN ID (Start VID) and
the highest VLAN ID (End VID) you want to look at.
Apply Click this to display the specified range of VLANs in the section
below.
