Page 321

Chapter 37 VRRP
XGS-4728F User’s Guide
321

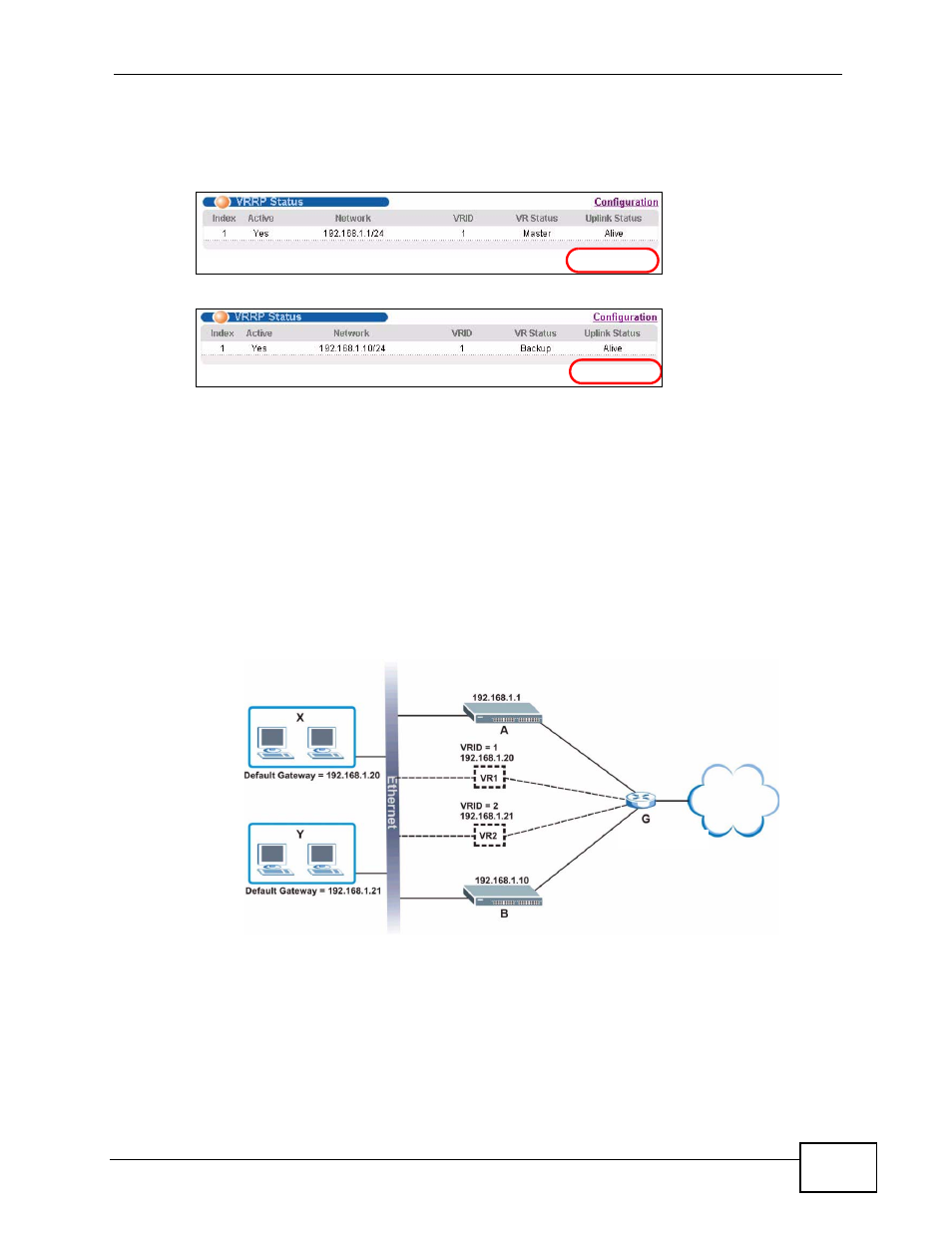

After configuring and saving the VRRP configuration, the VRRP Status screens for
both switches are shown next.
Figure 188 VRRP Example 1: VRRP Status on Switch A
Figure 189 VRRP Example 1: VRRP Status on Switch B
37.4.2 Two Subnets Example
The following figure depicts an example in which two switches share the network
traffic. Hosts in the two network groups use different default gateways. Each
switch is configured to backup a virtual router using VRRP.
You wish to configure switch A as the master router for virtual router VR1 and as
a backup for virtual router VR2. On the other hand, switch B is the master for
VR2 and a backup for VR1.
Figure 190 VRRP Configuration Example: Two Virtual Router Network
You need to configure the VRRP Configuration screen for virtual router VR2 on
each switch, while keeping the VRRP configuration in example 1 for virtual router
EXAMPLE
EXAMPLE
172.21.1.
172.21.1.
172.21.1.1
