28.2 Enabling VLAN Mapping
Click Advanced Application and then VLAN Mapping in the navigation panel to
display the screen as shown.

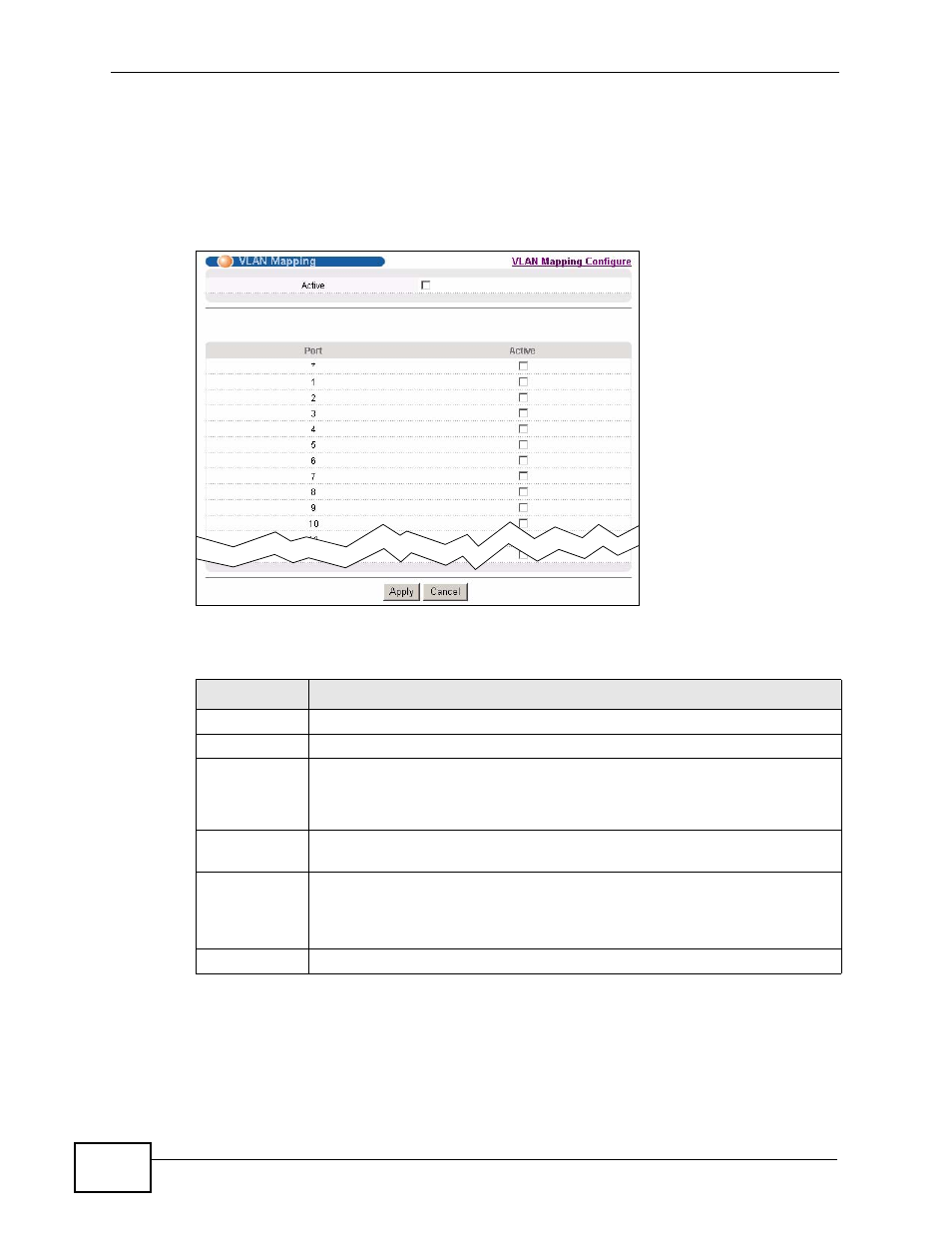

Figure 139 VLAN Mapping
The following table describes the labels in this screen.
Table 89 VLAN Mapping
LABEL DESCRIPTION
Active Select this option to enable VLAN mapping on the Switch.
Port This field displays the port number.
* Use this row to make the setting the same for all ports. Use this row first
and then make adjustments on a port-by-port basis.
Changes in this row are copied to all the ports as soon as you make them.
Active Select this check box to enable the VLAN mapping feature on this port.
Clear this check box to disable the VLAN mapping feature.
Apply Click Apply to save your changes to the Switch’s run-time memory. The
Switch loses these changes if it is turned off or loses power, so use the
Save link on the top navigation panel to save your changes to the non-
volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
