Chapter 6 Tutorials
XGS-4728F User’s Guide
65
3

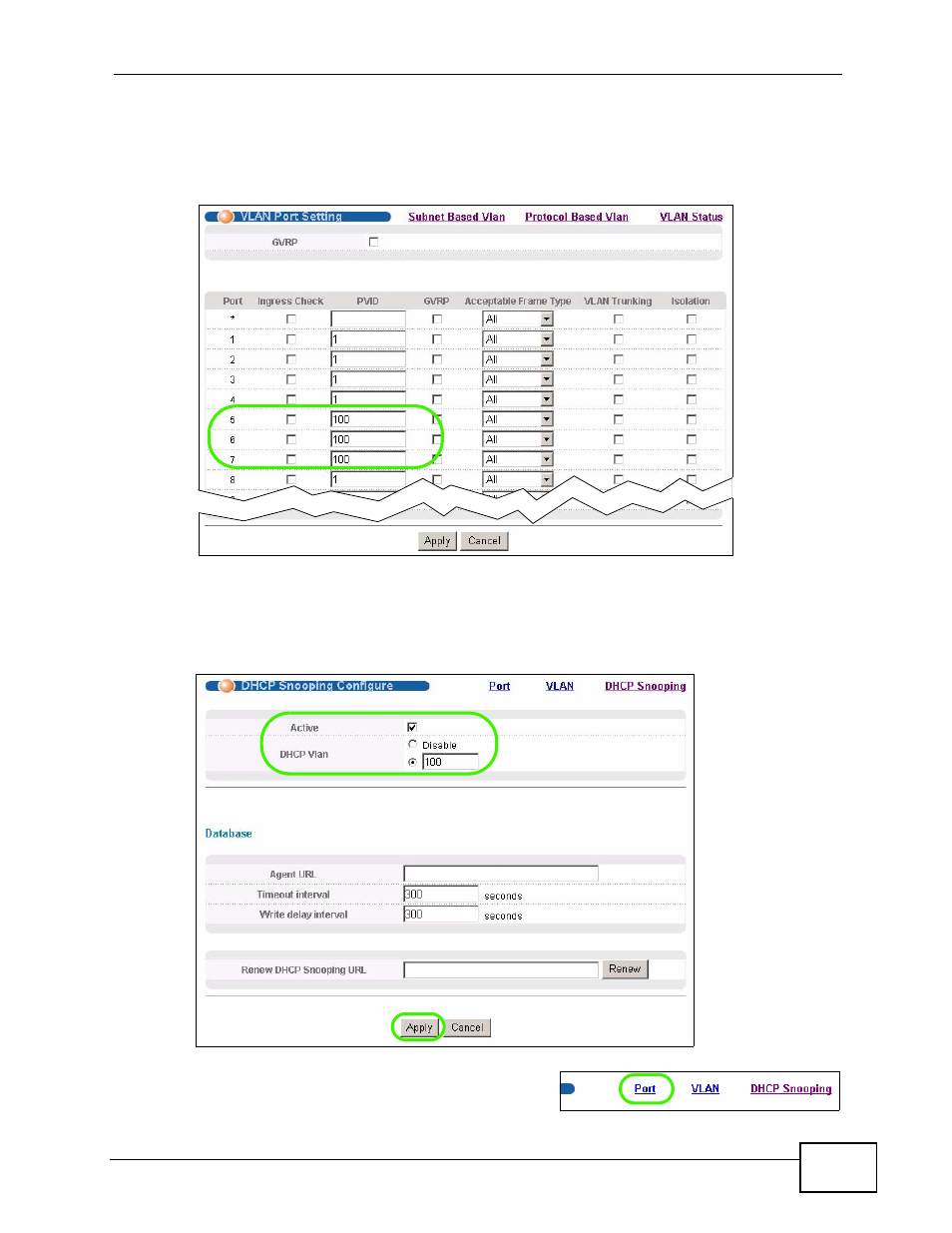

Go to Advanced Application > VLAN > VLAN Port Setting, and set the PVID
of the ports 5, 6 and 7 to 100. This tags untagged incoming frames on ports 5, 6
and 7 with the tag 100.
Figure 26 Tutorial: Tag Untagged Frames
4
Go to Advanced Application > IP Source Guard > DHCP snooping >
Configure, activate and specify VLAN 100 as the DHCP VLAN as shown. Click
Apply.
Figure 27 Tutorial: Specify DHCP VLAN
5
Click the Port link at the top right corner.
