4 Replacement Procedures
4.34 TFT FL (Model 15.0 UXGA SHARP LQ150U1LW13)
4-164
Satellite Pro M10 Series Maintenance Manual (960-431)

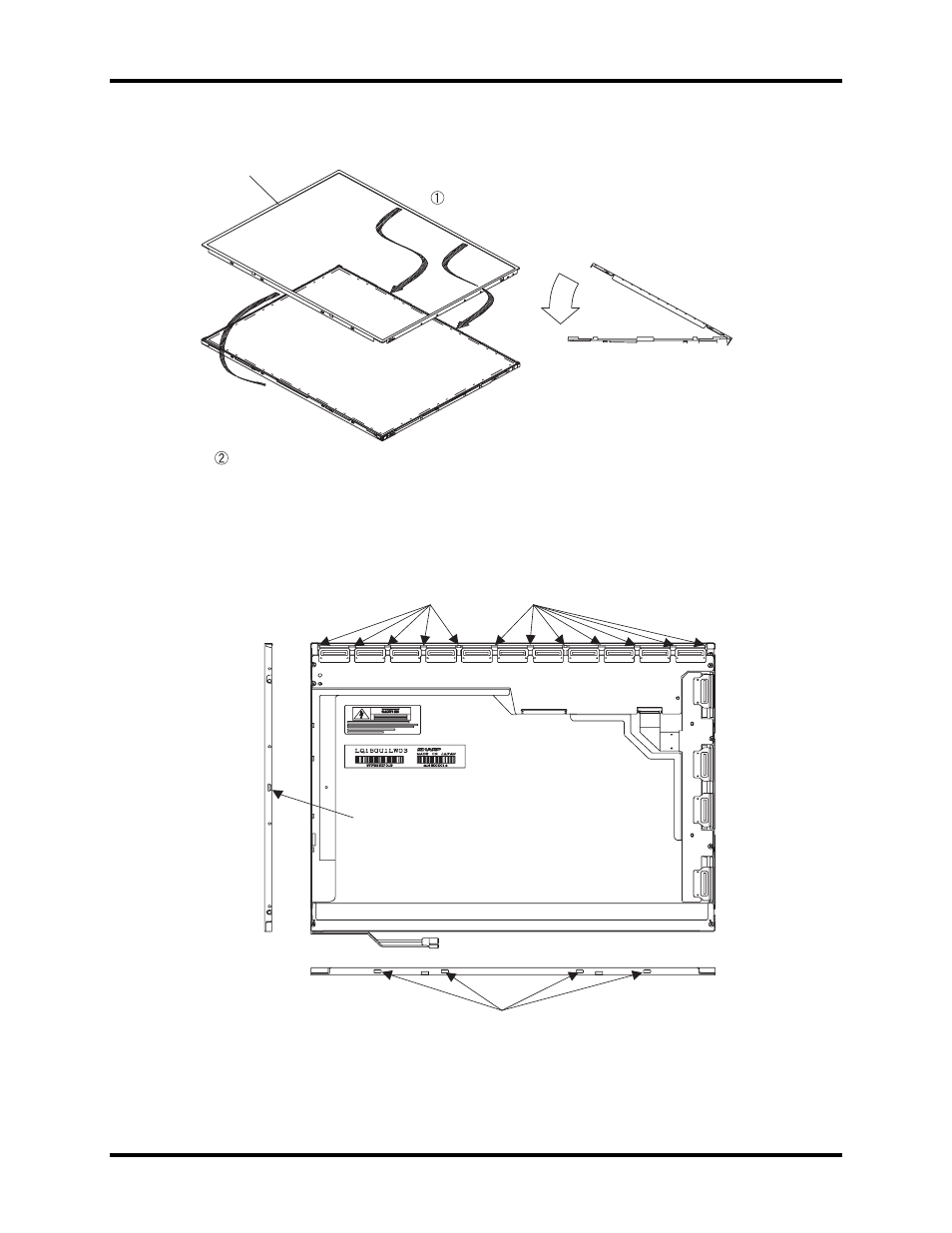

10. Install the top frame.
Top frame
Hook the U-shaped side of the top frame to the P-chassis.
Lay the top frame on the lamp cover. Be sure
the top frame does not interfere with the TCP.
Figure 4-143 Installing the top frame
11. Secure the top frame and the lamp cover with four latches.
Make sure the top frame meshes with the P-chassis
Make sure the top frame fixes
with the P-chassis
Make sure the latches on the top frame mesh with the lamp cover
Figure 4-144 Installing the top frame
