4.34 TFT FL (Model 15.0 UXGA SHARP LQ150U1LW13) 4 Replacement Procedures
Satellite Pro M10 Series Maintenance Manual (960-431) 4-159
Installing the TFT FL (Model 15.0 UXGA SHARP LQ150U1LW13)
To install the TFT FL (Model 15.0 UXGA SHARP LQ150U1LW13), follow the steps below and
refer to Figures 4-136 to 4-147.

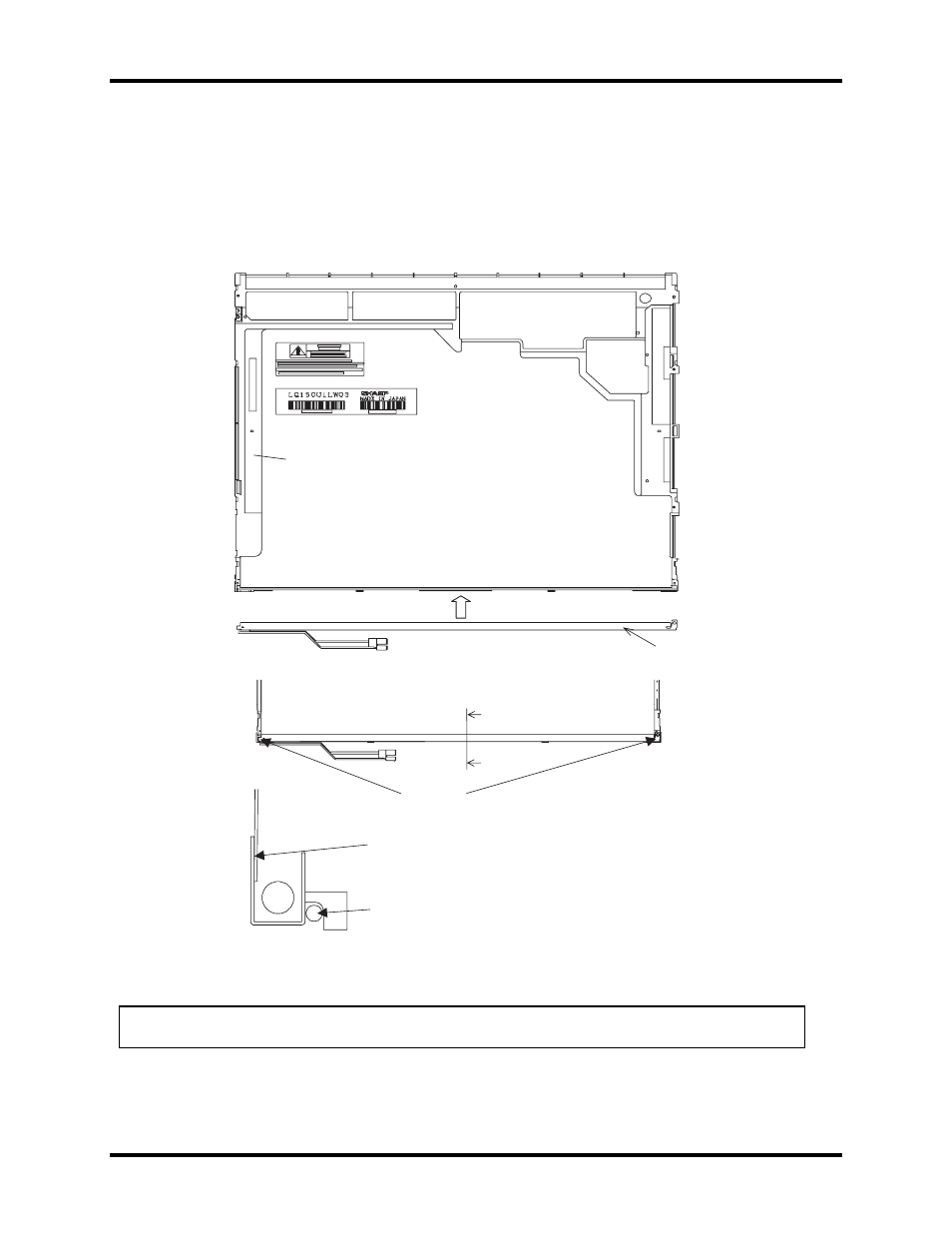

1. Install a new FL unit into the frame.
Z
Z
FL
Frame
Cross section of Z—Z
Install the FL into the frame making sure
it does not stick out from the frame.
Let the reflective sheet inside the reflector
Fit the wire firmly into the groove
Figure 4-136 Installing the FL
NOTE: Be careful not to crease the reflective sheet when you install the FL unit.
