4 Replacement Procedures

4.34 TFT FL (Model 15.0 UXGA SHARP LQ150U1LW13)

4-160

Satellite Pro M10 Series Maintenance Manual (960-431)

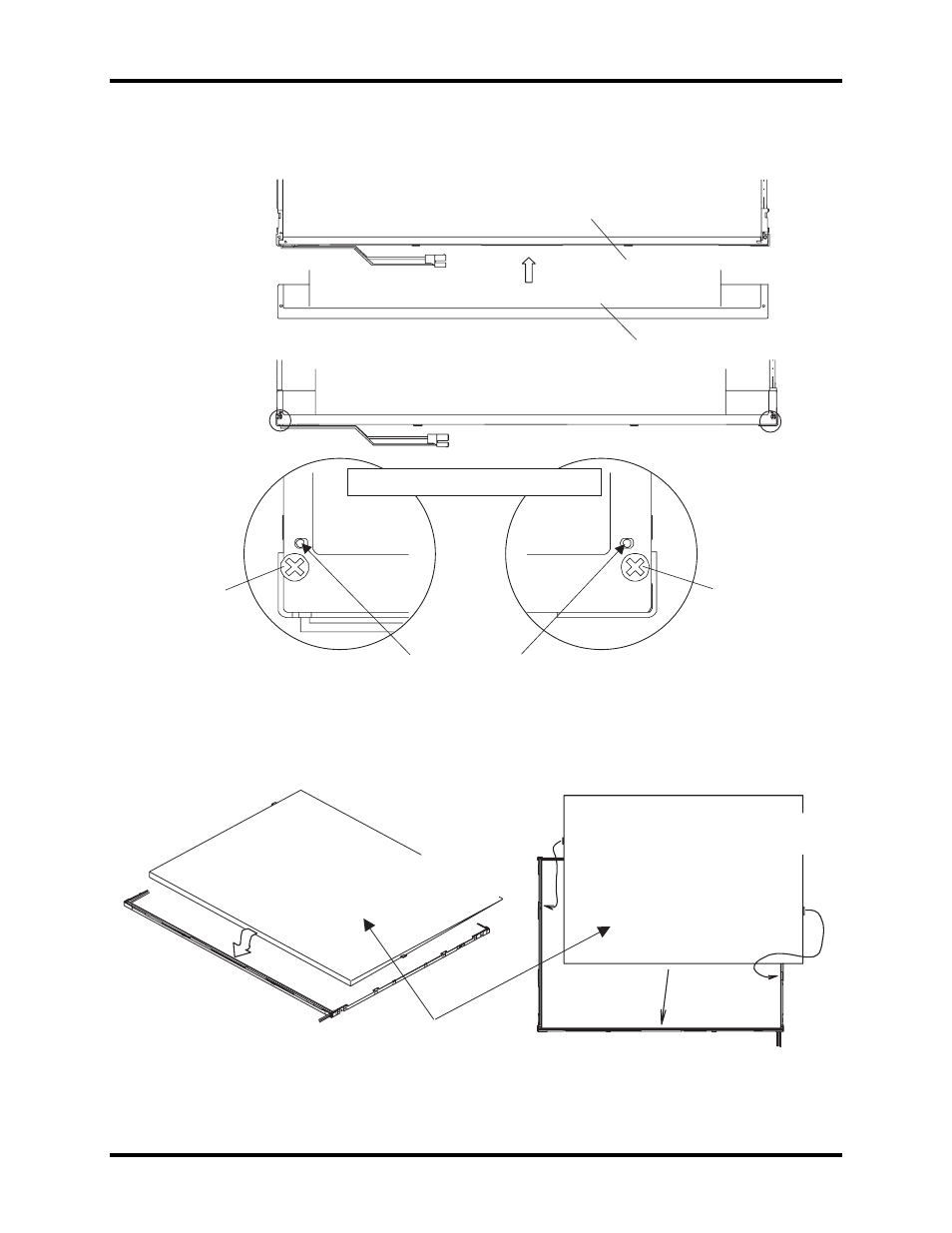

2. Seat the lamp cover on the backlight unit and secure it with two screws.

V

W

Lamp cover

Tighten the screws with 1.0kgf•cm of torque.

Detail of W

Detail of V

Backlight unit

Screw

Screw

Align the holes on the lamp cover

with the pins on the frame.

Figure 4-137 Installing the lamp cover

3. Install the light guide sheet in the backlight unit.

1

2

3

Light guide sheet

Insert the light guide sheet straight
to avoid deforming any sheets.

Insert three tabs on the edge of
the light guide sheet into the notches
on the frame as ordered in
this illutration.

Figure 4-138 Installing the light guide sheet
