Toshiba M10 User Manual
Page 341
4.32 TFT FL (Model 15.0 SXGA+ Samsung LTN150P3-L03)
4 Replacement Procedures
Satellite Pro M10 Series Maintenance Manual (960-431)
4-129
4. Release nine hooks (four hooks on the bottom side first and five hooks on the right
and left side) and remove the top chassis from the LCD module starting from the
bottom end.
CAUTION: When you release hooks on the top chassis, be careful not to apply pressure
to the FL. The FL can be damaged easily.
Hook
Hook
Hook
Hook
Hook
Hook
Hook
Hook
Hook

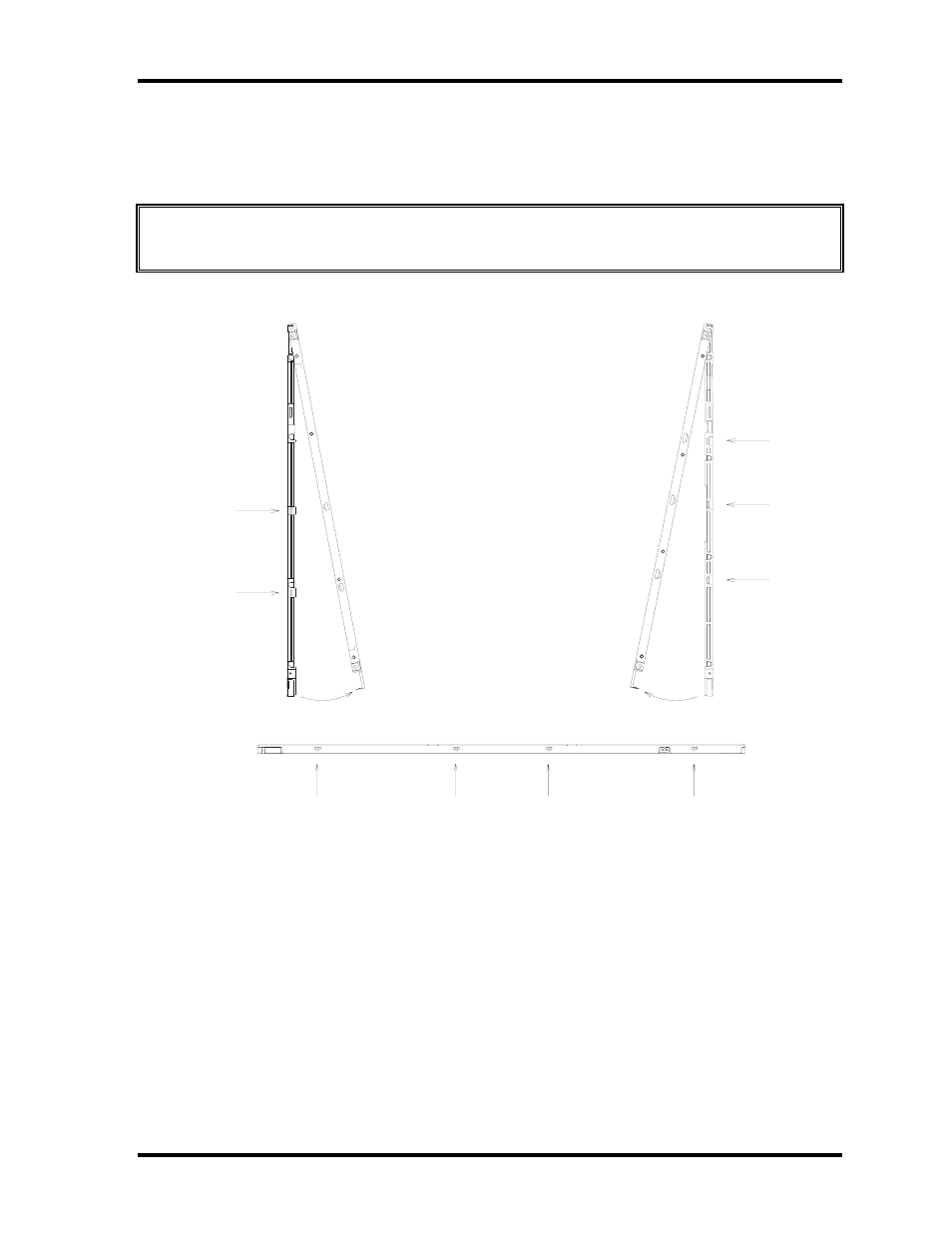

Figure 4-99 Removing the top chassis
