4 Replacement Procedures 4.12 Internal Microphone
4-44 Satellite Pro M10 Series Maintenance Manual (960-431)
4.12 Internal Microphone
Removing the Internal Microphone
To remove the internal microphone, follow the steps below and refer to Figure 4-29.
1. Remove one strip of tape securing the internal microphone cable.
2. Disconnect the internal microphone cable from PJ5002 on the sound board.
3. Remove the internal microphone.
Internal microphone
Tape
Internal microphone cable
PJ5002

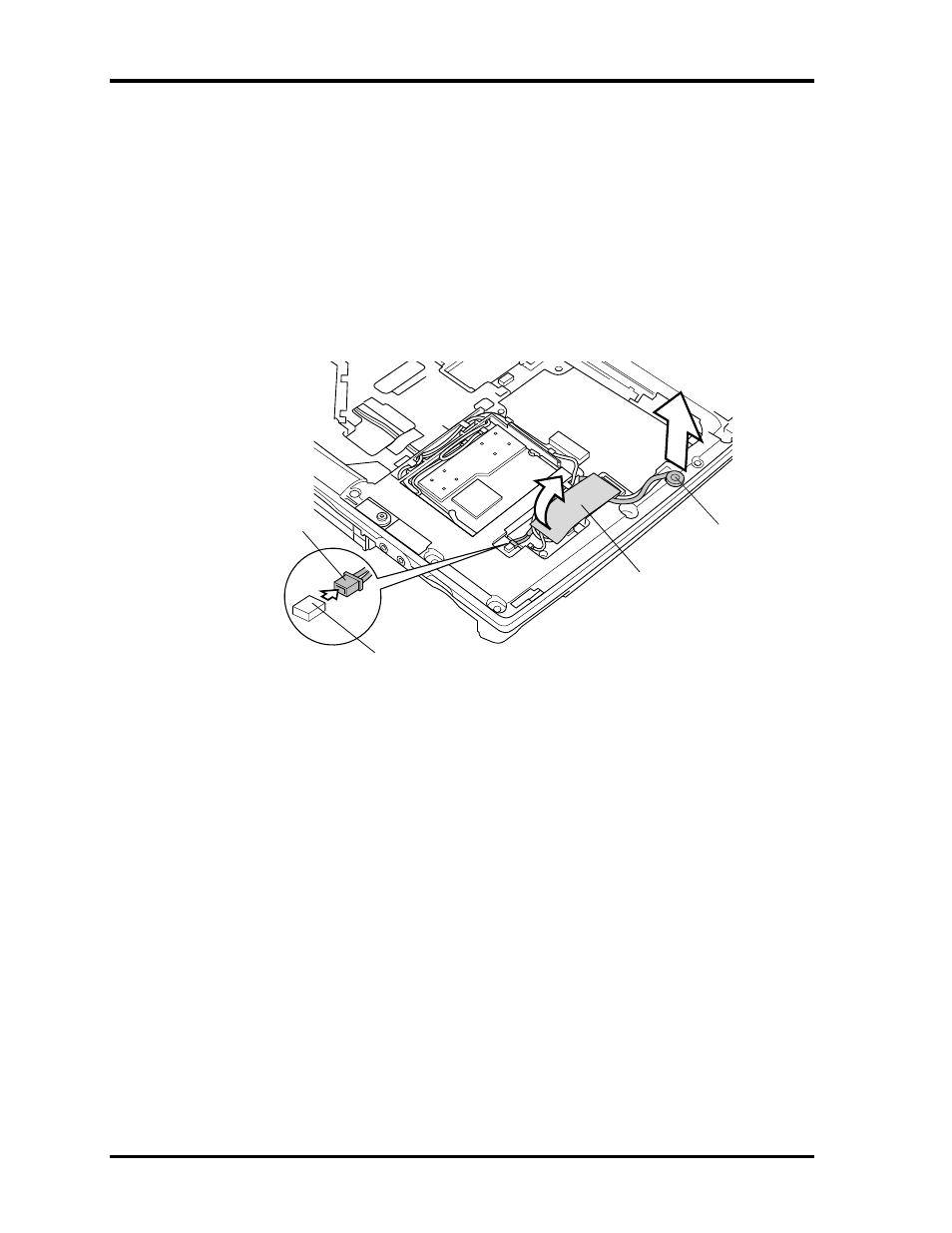

Figure 4-29 Removing the internal microphone
Installing the Internal Microphone
To install the internal microphone, follow the steps below and refer to Figure 4-29.
1. Seat the internal microphone.
2. Connect the internal microphone cable to PJ5002 on the sound board.
3. Secure the internal microphone cable with one strip of tape.
