4.23 FL Inverter Board
4 Replacement Procedures
Satellite Pro M10 Series Maintenance Manual (960-431)
4-67
4.23 FL Inverter Board
Removing the FL Inverter Board
To remove the FL inverter board, follow the steps below and refer to Figures 4-46 and 4-47.
1. Remove one M2
×4 flat-head screw securing the FL inverter board.
2. Turn over the insulator securing the HV cable.
Insulator
M2
×
4 flat-head screw
FL inverter board

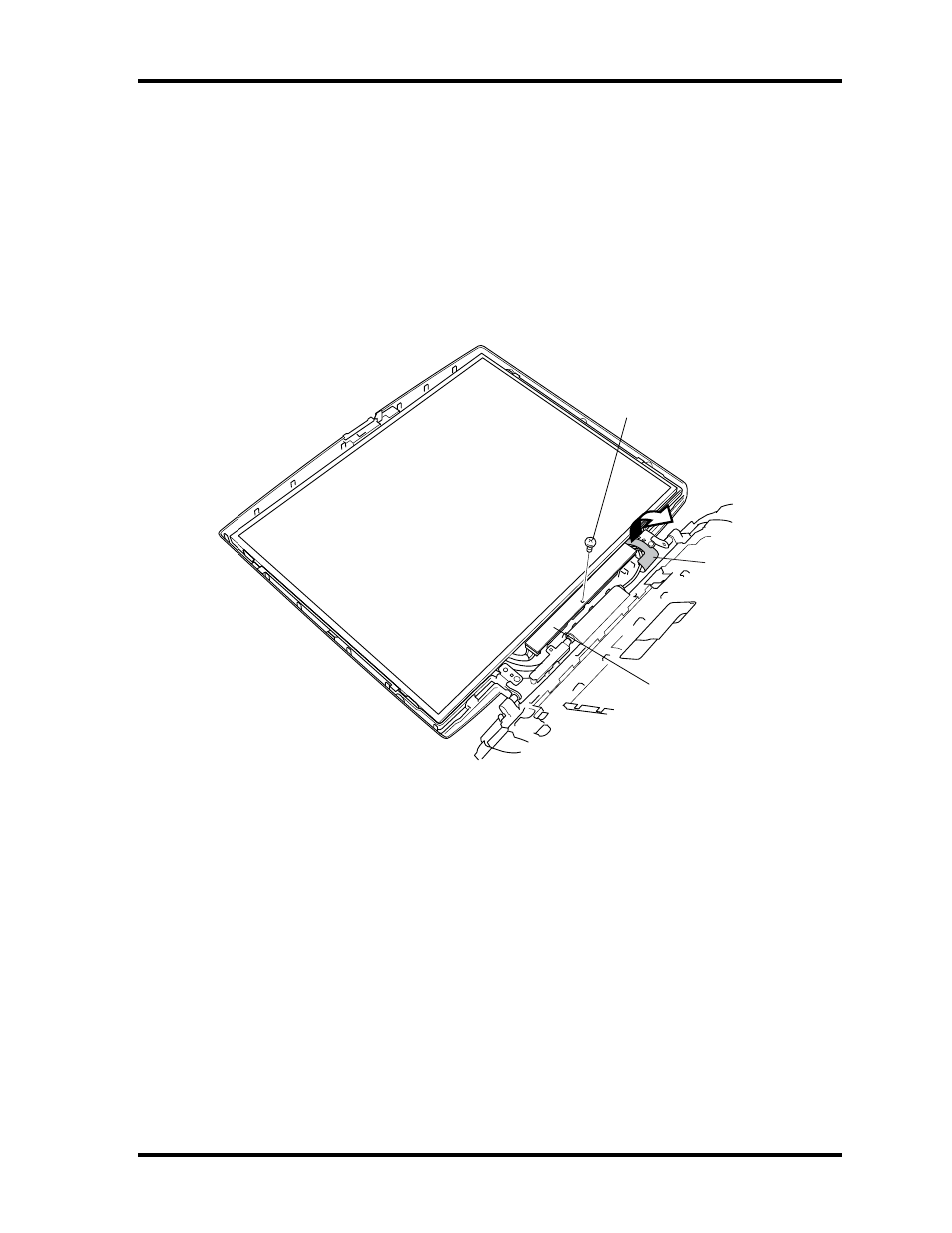

Figure 4-46 Removing the screw from the FL inverter board
