4 Replacement Procedures

4.28 TFT FL (Model 14.1 XGA LG. Philips LP141X7-C1TO)

4-92

Satellite Pro M10 Series Maintenance Manual (960-431)

Removing the control PCB, top case and cover assembly

6. Remove the FPC cable (1) used for the control PCB connecting.

CAUTION: Pressure or stress should not be given on the FPC cable.

7. Remove the control PCB (2).

CAUTION: At first, move the control PCB to the left

8. Remove the top case (3)

CAUTION: Pressure or stress should not be given on the top case and gate TCP

9. Remove the screw and cover assembly (4).

CAUTION: Pressure or stress should not be given on the source TCP

Maximum value of torque with screw should be below 2.0kgf.cm

Cover Assembly:3551L-0027A

Screw:1STZL-0001H

Control PCB:6870L-C017

Case Assembly:
3111L-00070A

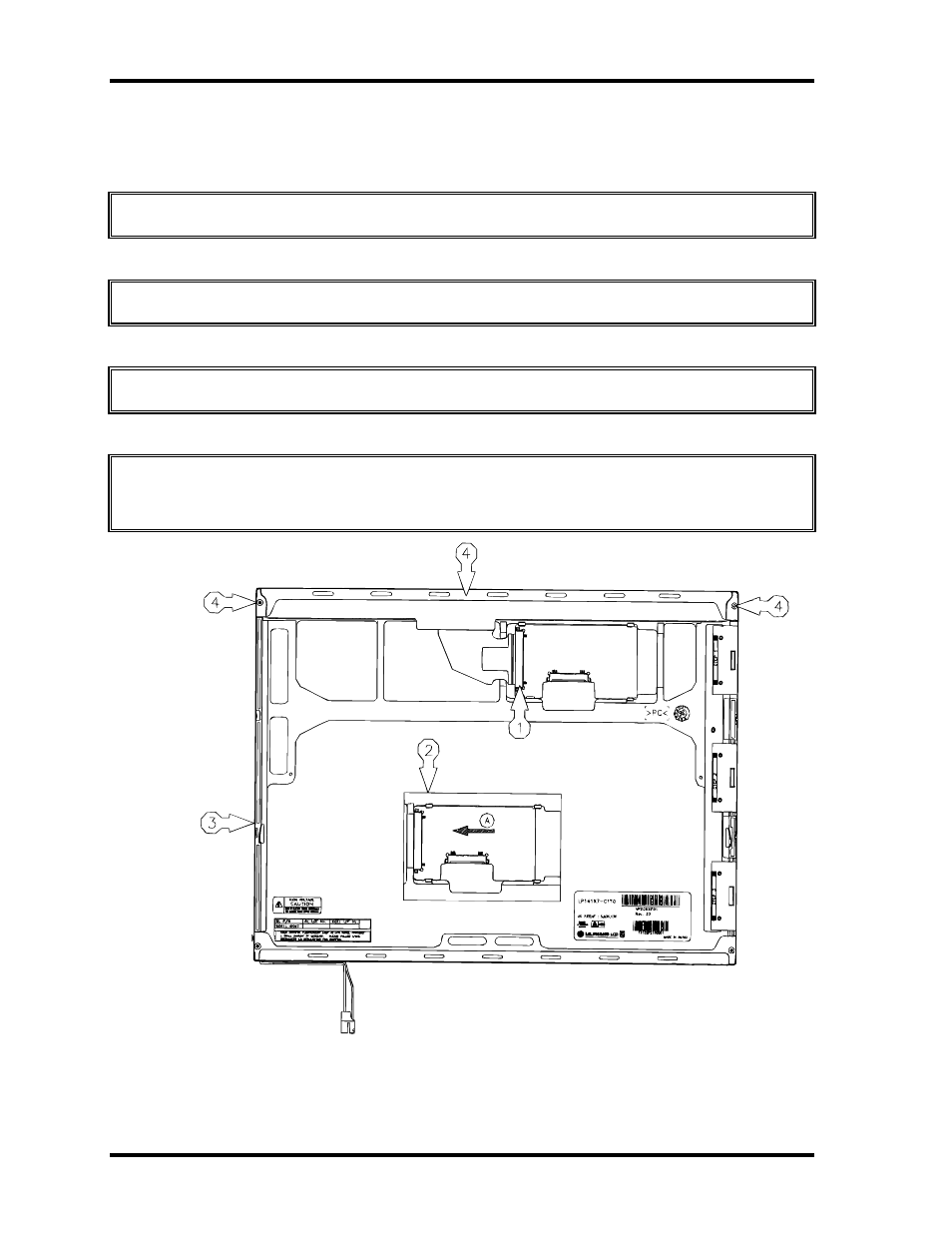

Figure 4-66 Removing the control PCB, top case and cover assembly
