4.13 Bluetooth Module 4 Replacement Procedures
Satellite Pro M10 Series Maintenance Manual (960-431) 4-45
4.13 Bluetooth Module
Removing the Bluetooth Module
To remove the Bluetooth module, follow the steps below and refer to Figure 4-30.
NOTE: The Bluetooth module is an option in some models.
1. Disconnect the Bluetooth antenna coaxial cable (brown) from module's connector
using an antenna coaxial cable disconnector.
2. Turn up the insulator.
3. Disconnect the Bluetooth module cable from PJ4900 on the system board.
4. Remove two M2 ×4 screws securing the Bluetooth module.
5. Remove the Bluetooth module.
6. Disconnect the Bluetooth module cable from the connector on the module.
M2
×
4 screws
Bluetooth module cable
PJ4900
Bluetooth module
Bluetooth antenna
coaxial cable
Insulator

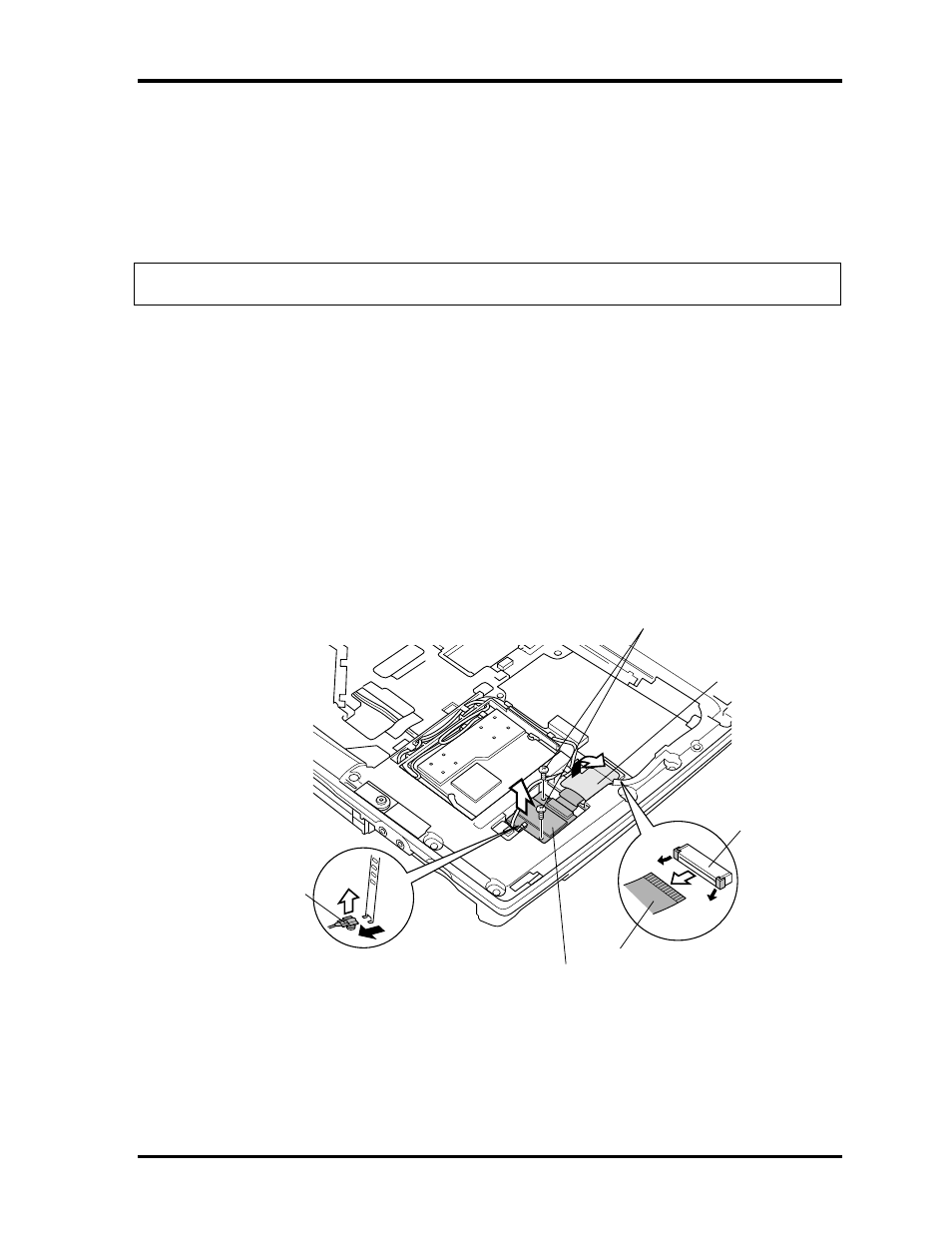

Figure 4-30 Removing the Bluetooth module
