4.27 TFT FL (Model 14.1 XGA Samsung LTN141XF-L02) 4 Replacement Procedures
Satellite Pro M10 Series Maintenance Manual (960-431) 4-81
4
4.27 TFT FL (Model 14.1 XGA Samsung LTN141XF-L02)
Removing the TFT FL (Model 14.1 XGA Samsung LTN141XF-L02)
To remove the TFT FL (Model 14.1 XGA Samsung LTN141XF-L02), follow the steps
below and refer to Figures 4-57 to 4-65.
1. Flip the LCD module over and remove the PCB cover and three pieces of tape.
CAUTION: Use care not to damage the PCB.
PCB cover
Wire tape
Tape
Tape
1
2
3
4

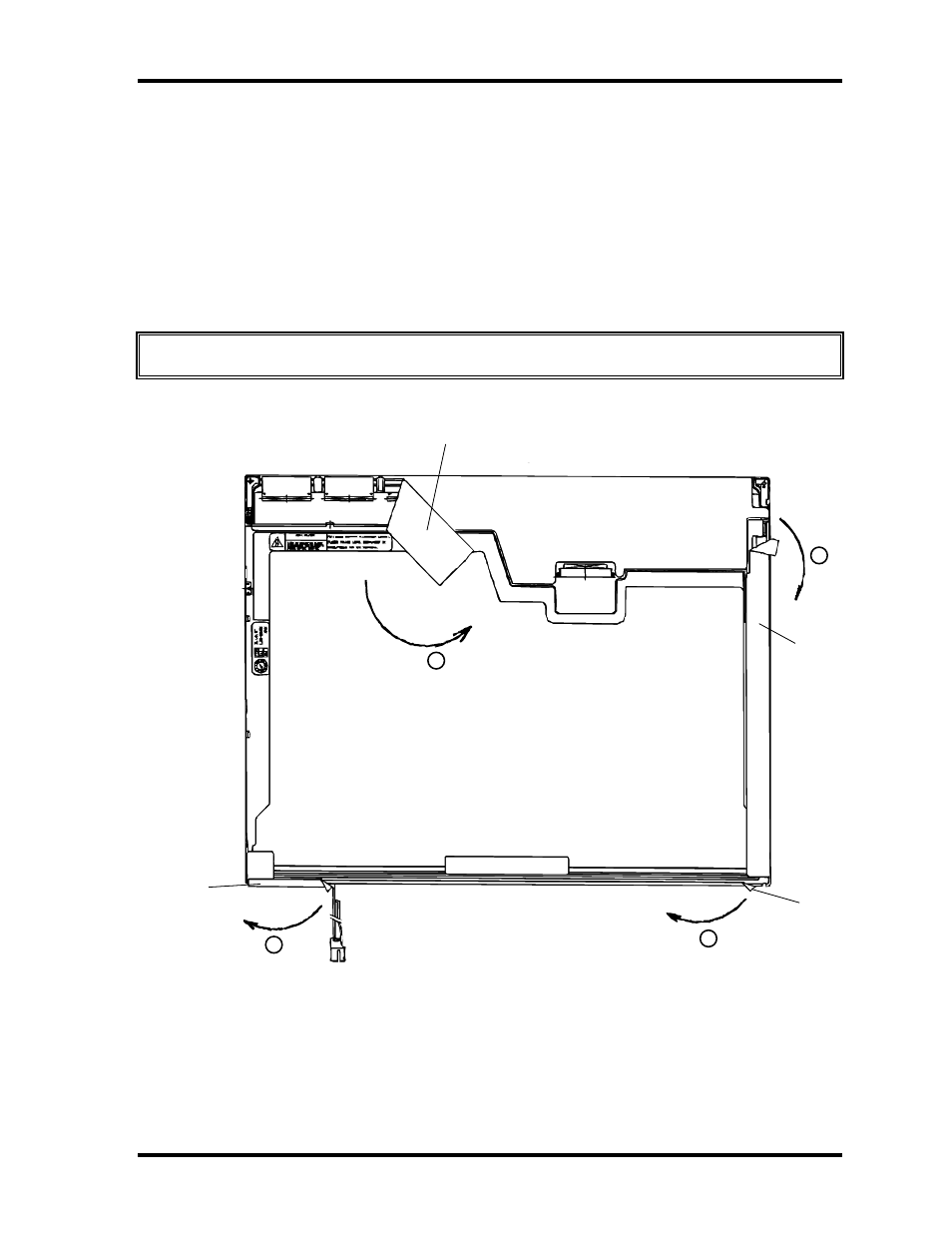

Figure 4-57 Removing the PCB cover and tape
