4.3 HDD
4 Replacement Procedures
Satellite Pro M10 Series Maintenance Manual (960-431)
4-17
5. Place the HDD pack on a flat surface, and remove four M3
×4 silver flat-head
screws.
6. Remove the HDD bracket.
M3
×
4 silver flat-head screws
M3
×
4 silver flat-head screws
HDD
HDD bracket

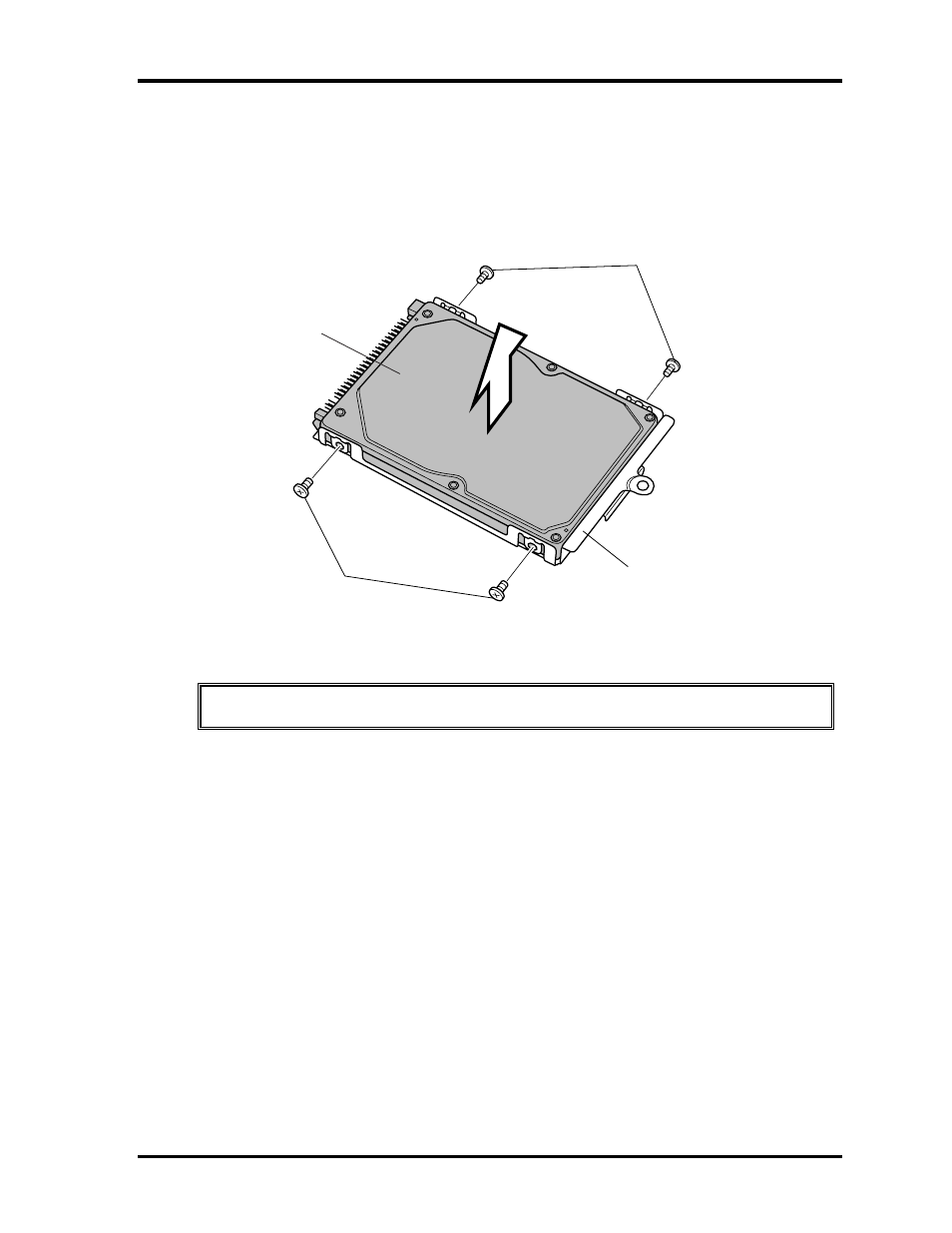

Figure 4-8 Removing screws and HDD bracket
CAUTION: Do not apply pressure to the top or bottom of the HDD.
