82 C OMMAND C ENTER S ECURE G ATEWAY A DMINISTRATOR G UIDE
5. Type a port name in the Port Name field. For ease of use, you should name the port after the
server that is connected to the port.
6. Click on the Application Name drop-down arrow and either use the default application as
configured in Application Manager or select another application if desired.
7. Select the associated category and element from the Port Associations table.
8. Click In-Band Parameters if you want to allow in-band access for this KVM port.

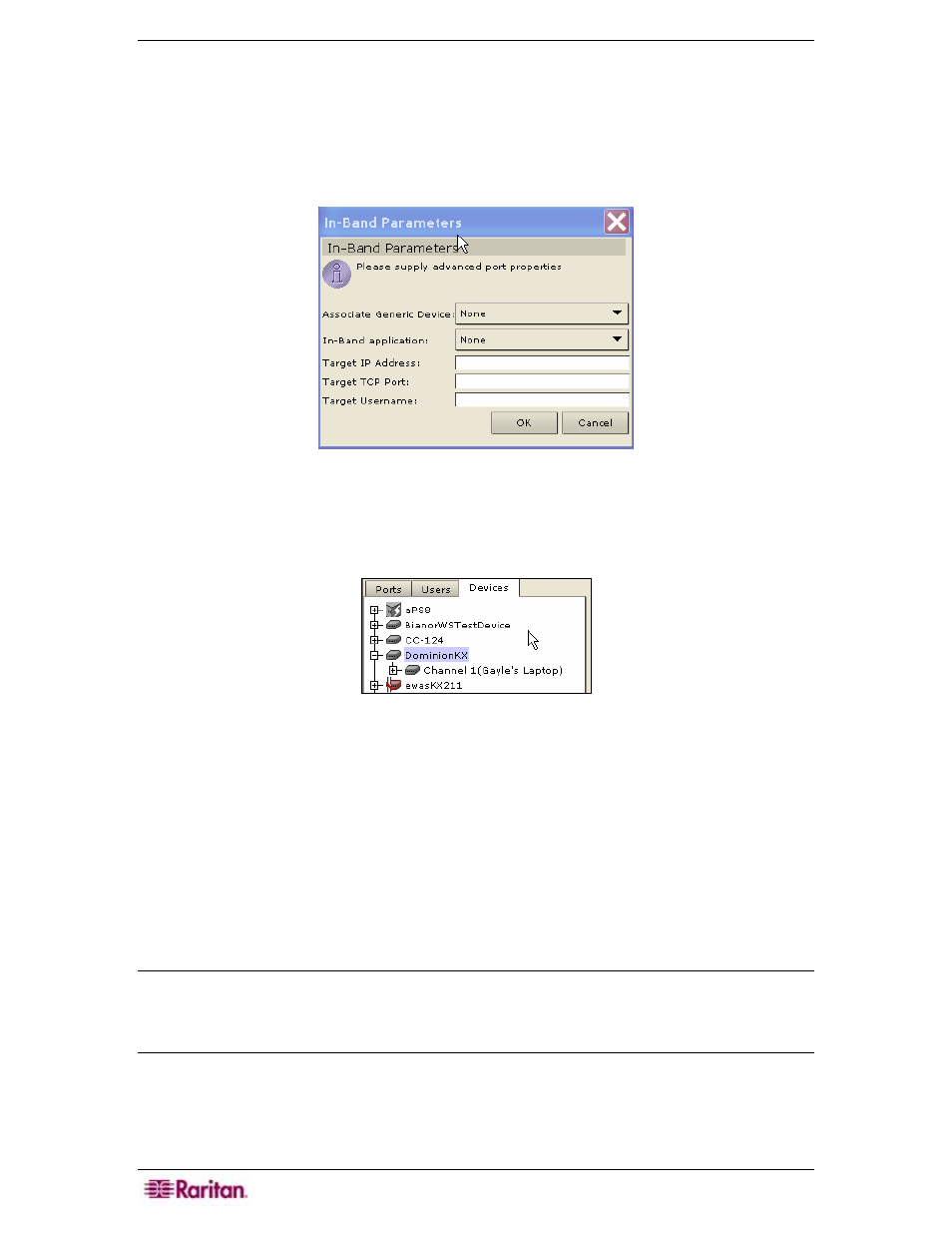

Figure 100 In-Band Parameters
9. Click on the Associate Generic Device drop-down arrow and select a Generic device, which
will be associated with this KVM port. When a Generic device is associated with a KVM port,
it looks like this in the Devices tree:
Figure 101 Associated Generic Device with a KVM Port
10. Click on the In-band application drop-down arrow and select either RemoteDesktop
Viewer, SSH Client, VNC Viewer. Type the IP address of the target associated with this
port in the Target IP Address field, type the port used by the In-band application in Target
TCP Port, and type a username that is used to login to the in-band application in the Target
Username field. If a target name is supplied, then only a password is required when
accessing a target. Click OK to save the In-band parameter settings or Cancel to exit without
saving.
11. Click OK to configure the KVM port or Cancel to exit with configuring. A Port Configured
Successfully message confirms that port has been created.
12. Repeat steps 1 through 11 to configure other KVM ports.
Note: You can access a Generic device that is associated with a KVM port by right-clicking on
the port in the Ports tree and selecting Connect, which uses the application selected, such as
Raritan Remote Console, or by selecting In-band Access, which uses the in-band application as
configured in the In-band Parameters screen.
