Web OS 10.0 Application Guide
Chapter 13: Firewall Load Balancing n 329
212777-A, February 2002
Configuring Four-Subnet FWLB
An example network for four-subnet FWLB is illustrated in Figure 13-7 . While other complex
topologies are possible, this example assumes a high-availability network using block (rather
than diagonal) interconnections between switches.

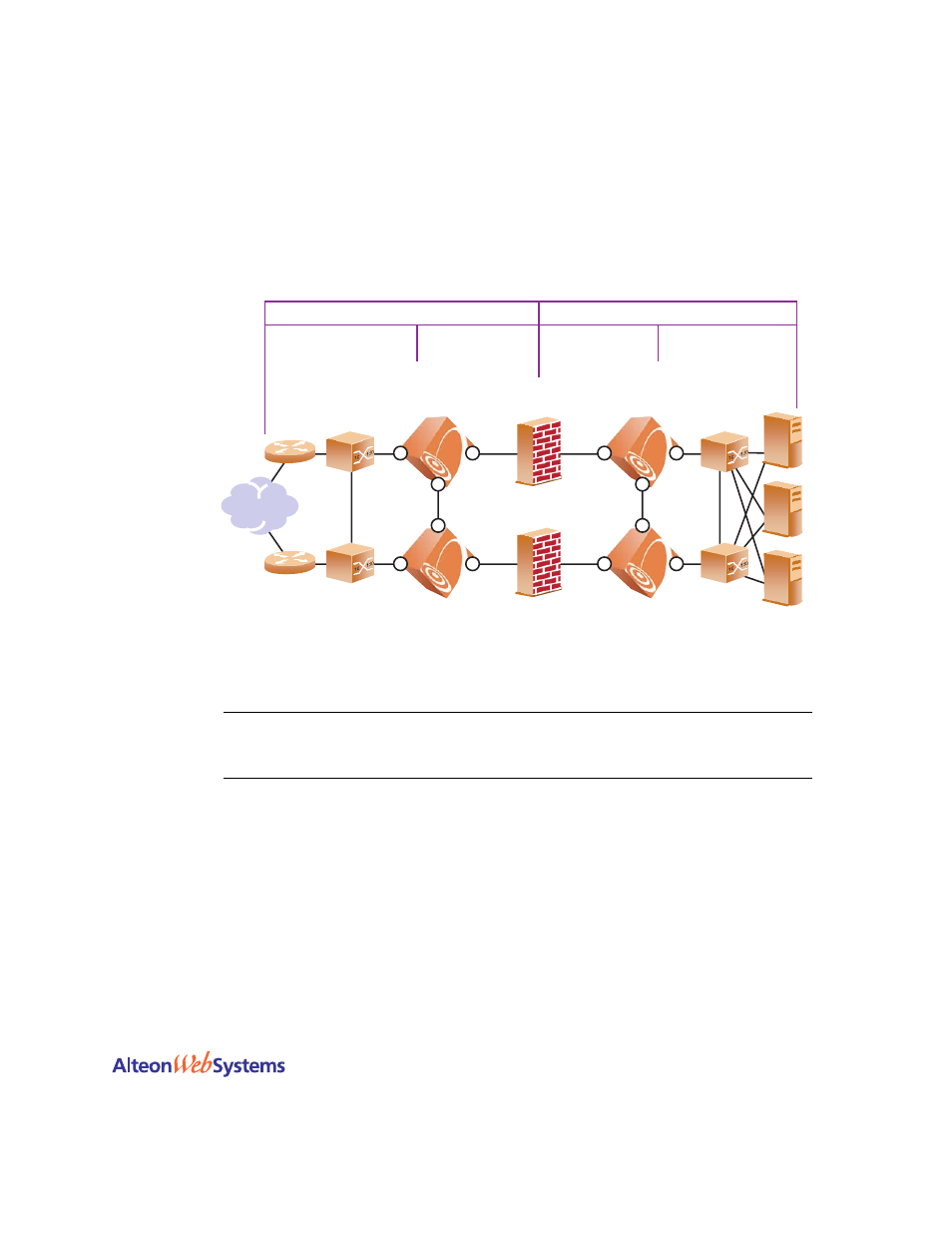

Figure 13-7 Four-Subnet FWLB Example Network
N OTE – The port designations of both dirty-side Web switches are identical, as are the port
designations of both clean-side Web switches. This simplifies configuration by allowing you to
synchronize each primary Web switch’s configuration with the secondary.
Four-subnet FWLB configuration is summarized as follows:
n
Configure routers and firewalls and test them for proper operation.
n
Configure VLANs, IP interfaces, and static routes on all Web switches and test them.
n
Configure secondary web switches with VRRP support settings.
n
Configure FWLB groups and redirection filters on the primary dirty-side Web switch.
n
Configure and synchronize VRRP on the primary dirty-side Web switch.
n
Configure FWLB and SLB groups, and add FWLB redirection filters on the primary
clean-side Web switch.
n
Configure VRRP on the primary clean-side Web switch and synchronize the secondary.
These steps are explained in detail in the following sections.
Subnet 1 (VLAN 1):
195.1.1.0/24 Subnet 2 (VLAN 2):
10.10.2.0/24 Subnet 3 (VLAN 3):
10.10.3.0/24 Subnet 4 (VLAN 4):
10.10.4.0/24
Dirty Side Clean Side
Internet
1
1
2
2
9
9
3
3
4
4
9
9
Router
195.1.1.1
Router
195.1.1.2
Firewall #1
Dirty: 10.10.2.3
Clean: 10.10.3.3
Firewall #2
Dirty: 10.10.2.4
Clean: 10.10.3.4
10.10.4.20
10.10.4.21
10.10.4.22
Web Switch #3
IF1: 10.10.4.10
IF2: 10.10.3.1
IF3: 10.10.3.2/32
VIP: 10.10.4.100
Web Switch #4
IF1: 10.10.4.11
IF2: 10.10.3.11
IF3: 10.10.3.12/32
VIP: 10.10.4.100
Web Switch #1
IF1: 195.1.1.10
IF2: 10.10.2.1
IF3: 10.10.2.2/32
Web Switch #2
IF1: 195.1.1.11
IF2: 10.10.2.11
IF3: 10.10.2.12/32
VIR
195.1.1.9
VIR
10.10.2.9 VIR
10.10.3.9
VIR
10.10.4.9
