SV61436 Rev. B 2-9
DM500™ and DM550™ Digital Mailing System Operating Guide
Connectors on the Back of the IntelliLink ® Control Center
Internal Analog Phone Line Connector - Depending on the version of
your IntelliLink ® Control Center, you may have an internal analog mo-
dem. The Interna�� Ana��o� Phone Line Connector label in the figure below
identifies the PCN numbers of the IntelliLink ® Control Centers that have
an internal analog modem and can connect directly to an analog phone
line. The PCN number is located on the bottom of your IntelliLink ® Control
Center.
The term analog phone line refers to a RJ11C or RJ11W compatible
(single line) telephone wall plug typically used for a residential phone or
facsimile hookup.
External (Modem) USB Connector - The IntelliLink® Control Center
has a connector for a USB device. If the PCN number of your IntelliLink ®
Control center is one of the ones listed under USB Connector label in the
figure below, you must connect an external modem to this USB connector
to dial into Pitney Bowes to perform feature updates or add postage. The
PCN number is located on the bottom of your IntelliLink ® Control Center.
IntelliLink® Control Center AC Adapter Receptacle - The receptacle for
the AC adapter is located on the back of the IntelliLink ® Control Center.
If you need to remove the control center from the mailing system base
and move it to an analog telephone line, you plug the AC adapter into this
receptacle. When the control center is connected to the mailing system
base, access to the AC adapter is blocked as indicated by the dotted line
in the picture below.
Mailing System
Exterior
continued
USB Connector
Use this to connect an
external modem if the
PCN on the bottom of the
IntelliLink
® Control Center
has the number: 1CXX

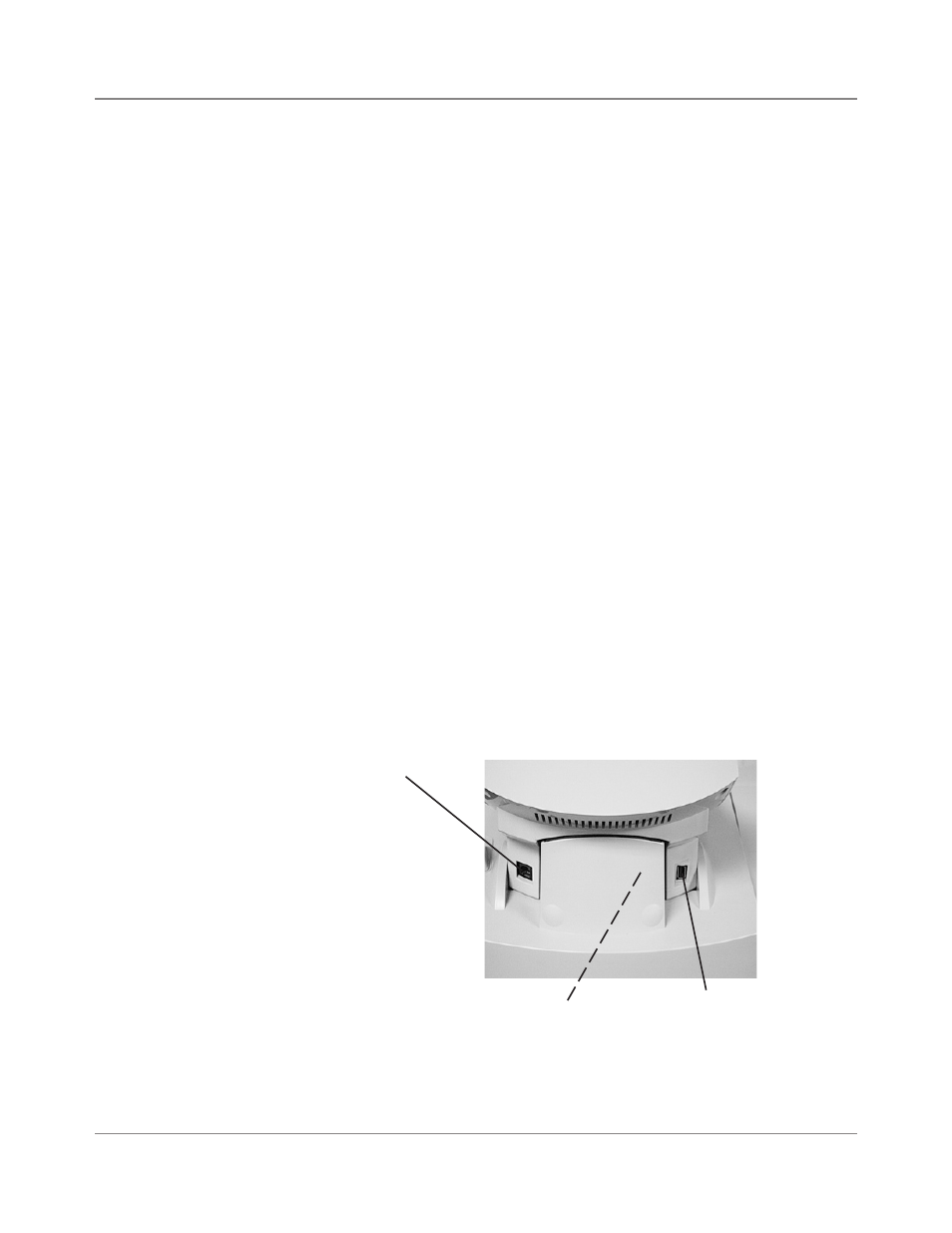

IntelliLink ® Control Center
installed on a DM Series ™
System base. Dotted line indicates
AC Adapter Receptacle is covered
by base
Internal Analog Phone Line
Connector
Use this to connect directly
to an analog phone line
if the PCN on the bottom
of the
IntelliLink
®
Control Center
has the number: 1DXX
