6-4 SV61436 Rev. B
6 • Adding Postage
Connecting
Your
Postage
Meter to
an Analog
Phone Line
1
Connecting Your Postage Meter - Local Analog Phone Line
Which connector do I use?
Internal Analog Phone Line Connector - Depending on the version of
your IntelliLink® Control Center, you may have an internal analog modem.
The Interna�� Ana��o� Phone Line Connector label in the figure below iden-
tifies the PCN numbers of the IntelliLink® Control Centers that have an
internal analog modem and can connect directly to an analog phone line.
The PCN number is located on the bottom of your control center.
External (Modem) USB Connector - The IntelliLink® Control Center
has a connector for a USB device. If the PCN number of your IntelliLink®
Control Center is one of the ones listed under USB Connector label in the
figure below, you must connect an external modem to this USB connector
to dial into Pitney Bowes to perform feature updates or add postage. The
PCN number is located on the bottom of your control center.
If your mailing system is not located near an analog phone line and you
need to remove the control center when you perform feature updates or
add postage, refer to Connectin� Your Posta�e Meter - Remote Ana��o�
Line in this section.
USB Connector
Use this to connect an ex-
ternal modem if the PCN
on the bottom of the control
center has the number:
1CXX
Internal Analog Phone Line
Connector
Use this to connect directly
to an analog phone line if
the PCN on the bottom of
the control center has the
number: 1DXX

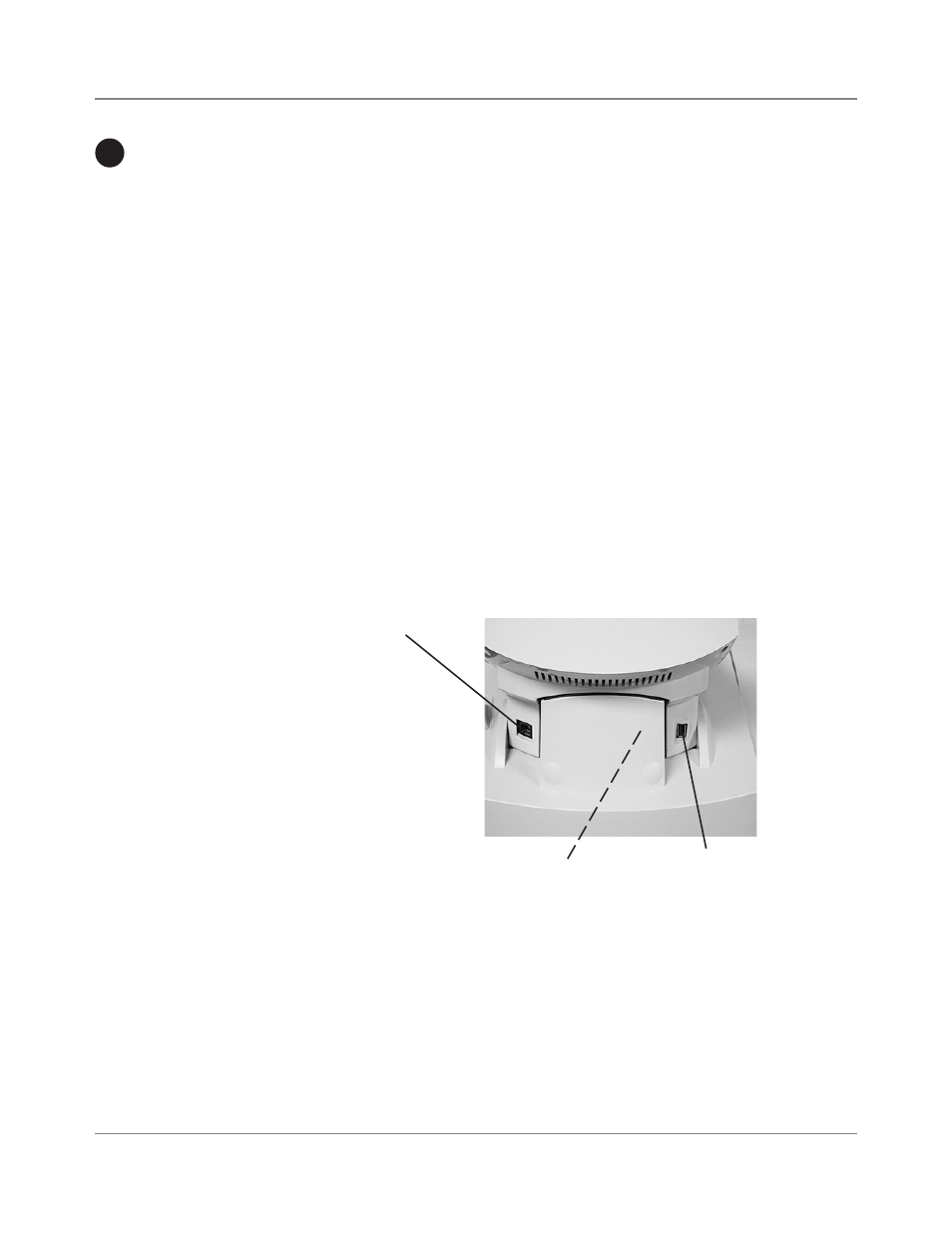

IntelliLink® Control Center
installed on a DM500™ or
DM550™ Digital Mailing System
base. Dotted line indicates AC
Adapter Receptacle is covered by
base
