DM500™ and DM550™ Digital Mailing System Operating Guide
Connecting Your Mailing System - Remote Analog Phone
Line
If you need to connect to an analog phone line that is not located near
your mailing system, you can remove the IntelliLink® Control Center and
move it to a location near the analog phone line. At the remote location,
plug one end of the AC Adapter (P/N 1C85005) into the back of the control
center and the other end into an AC outlet.
To remove the control center and move it to another location:
1. Turn off the power to the mailing system.

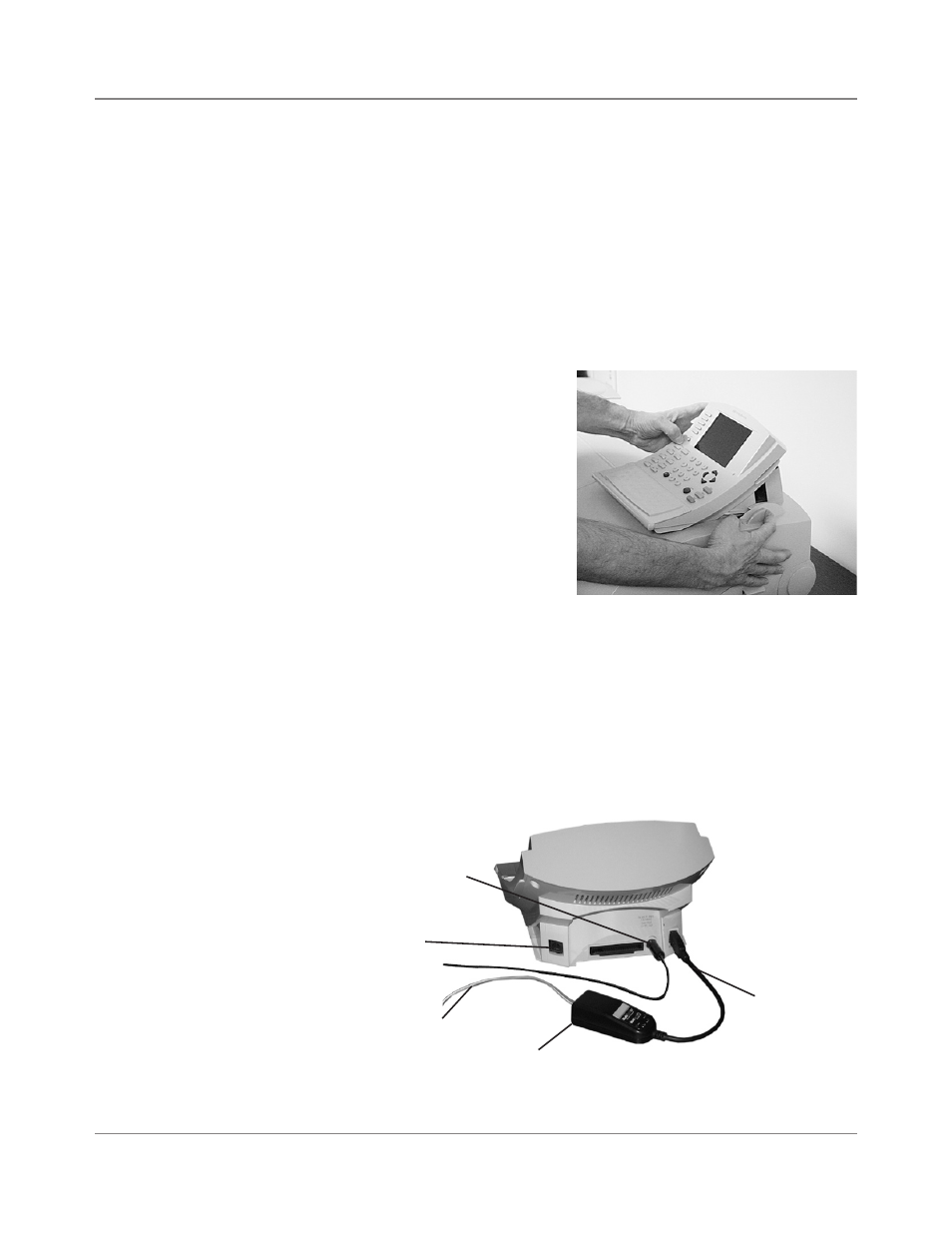

2. Pull the blue lever at the right
of the control center towards
you.
3. Slide the control center for-
ward to remove it.
4. Take the control center (and external modem) to where the analog
phone line is.
5. Depending on the PCN number of your IntelliLink® Control Center,
connect the telephone cord (AWG 26) from either the external modem,
or the internal analog connector to the analog telephone line.
Connect the A/C Adapter (P/N 1C85005) to the back of the control cen-
ter and plug it into an AC outlet. Refer to the figure below.
Connecting
Your Postage
Meter to an
Analog Phone
Line
continued
External USB
Modem Cable
for PCN 1CXX
only
External Modem
AC Adapter plugged
into IntelliLink® Control
Center
Telephone Cord for
Analog Line
(26 AWG)
Internal analog line for
PCN 1DXX only
