DTMX5000 IP Gateway Operation
Rev. 1 3–43

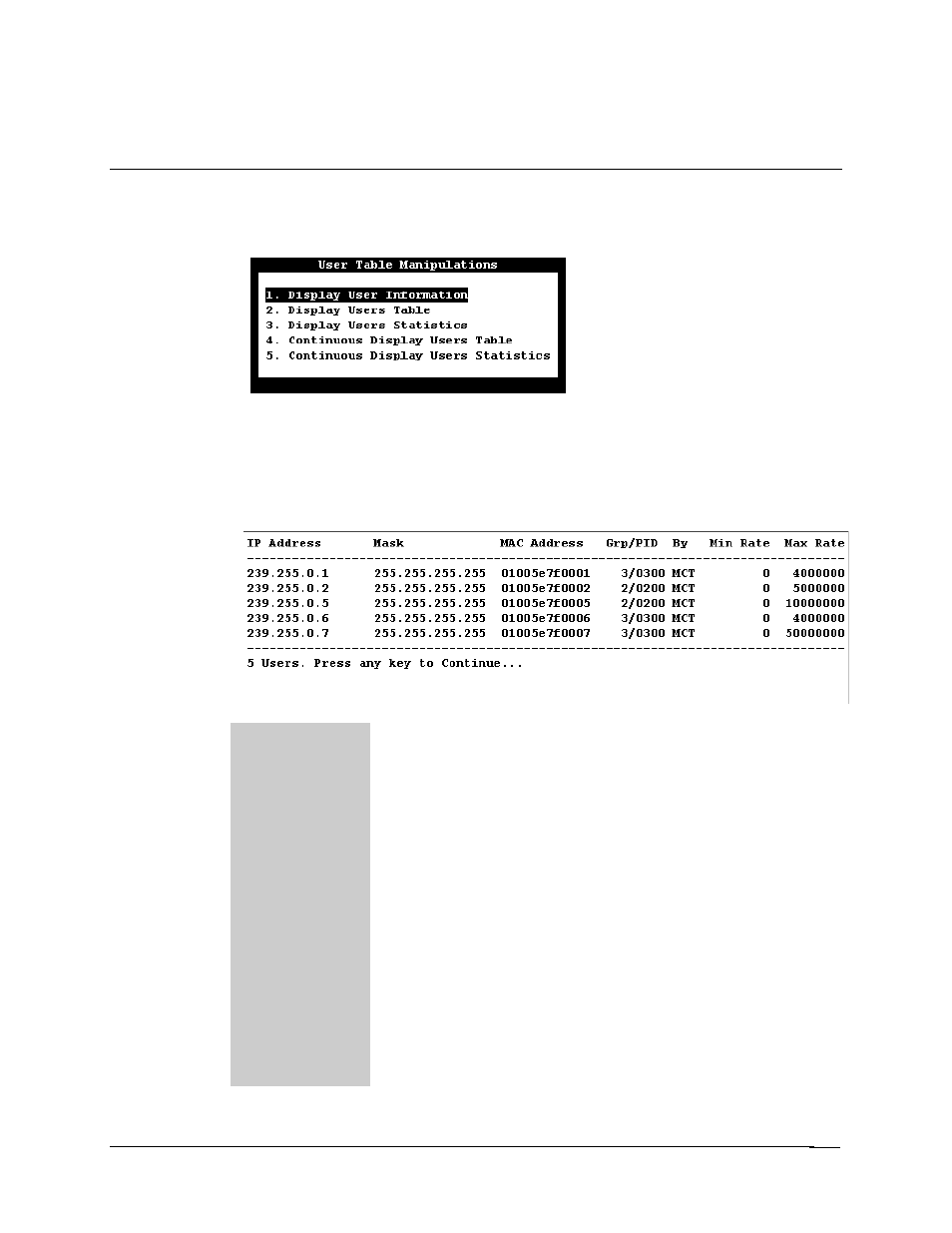

3.5.1.8 User Table Manipulation
The User Table Manipulations option consists of the following:
3.5.1.8.1 Display Users Table
This option enables the user to receive information about the users currently registered in
the Gateway routing table.
IP Address The IP address of the user. The IP address is used as an index for
the table.
Mask The subnet mask of the user. The user might be a host or a subnet.
MAC Address The MAC address of the user’s receive card.
Group / PID The index of the Group PID to which the user belongs.
By Define the way the user was added to the table.
•
USER: The user is a multicast channel that was
automatically added by the Gateway.
•
STU: The user is a registered static user.
•
MCT: The user is a registered multicast channel.
•
CCU: The user is a dynamic user that was added by the
CCU.
•
Min Rate: The QoS parameter defining the minimum rate
for the user, if QoS is enabled.
•
Max Rate: The QoS parameter defining the maximum rate
for the user, if QoS is enabled.
