Central Configuration Unit DTMX5000 IP Gateway
B-14 Rev. 1
The new properties must be saved in order to configure the CCU to the CCU
Server. This can be performed in either of the following two ways:
1. To save the CCU Server properties without performing further
configurations, proceed as follows:
•
Click OK. The CCU Server Properties dialog closes and the
properties are saved.
2. To save the CCU Server properties and continue with further
configurations:

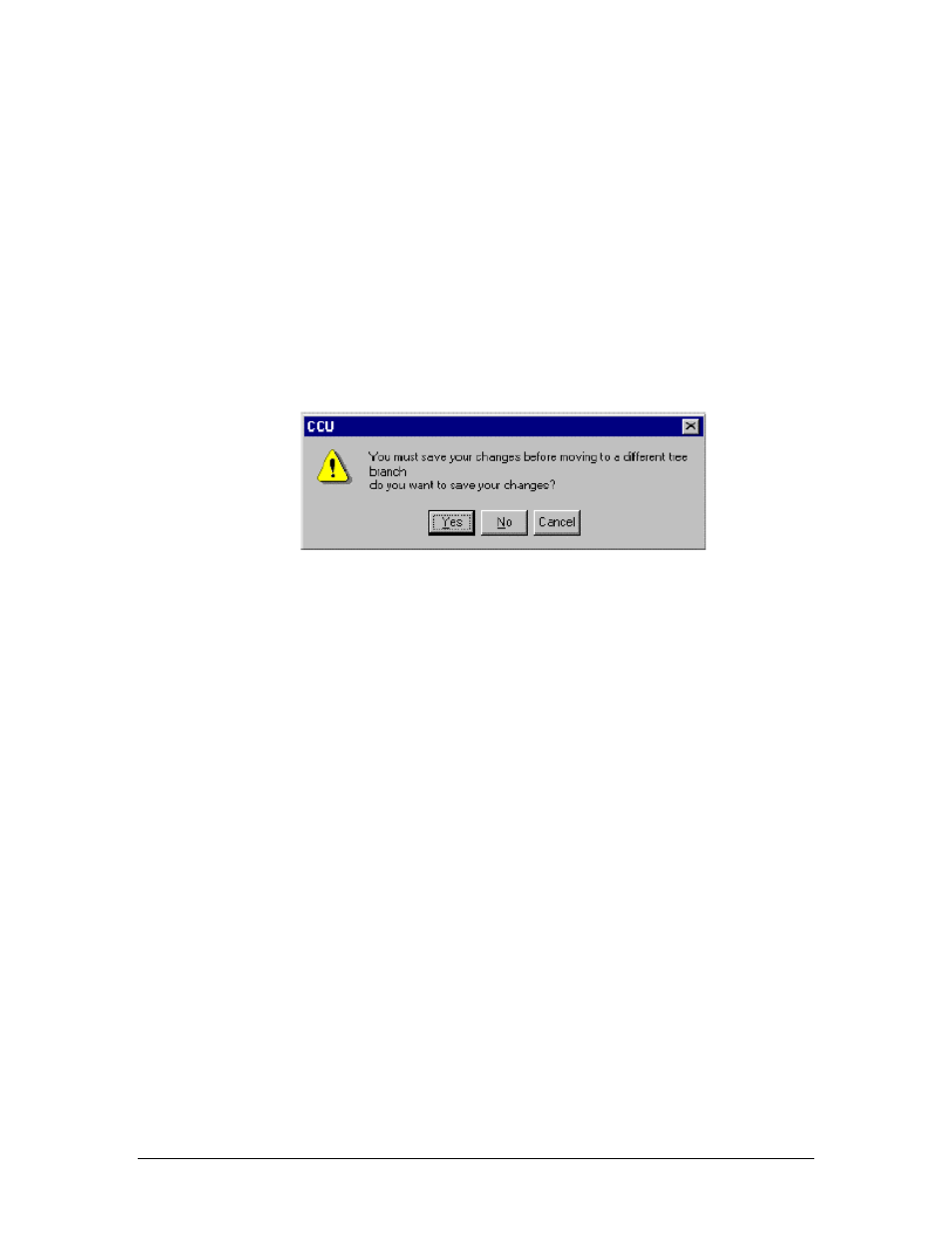

a. In the tree branch, click the next element to be configured. The
following window opens:
Note: Clicking Yes to save the changes before moving to a different
tree branch is an irreversible process, meaning the changes cannot be
undone, even by clicking the Cancel button.
b. Click Yes. The properties are saved, the CCU Server Properties
dialog closes and the next element can be configured.
