118 9469200990 Rev C

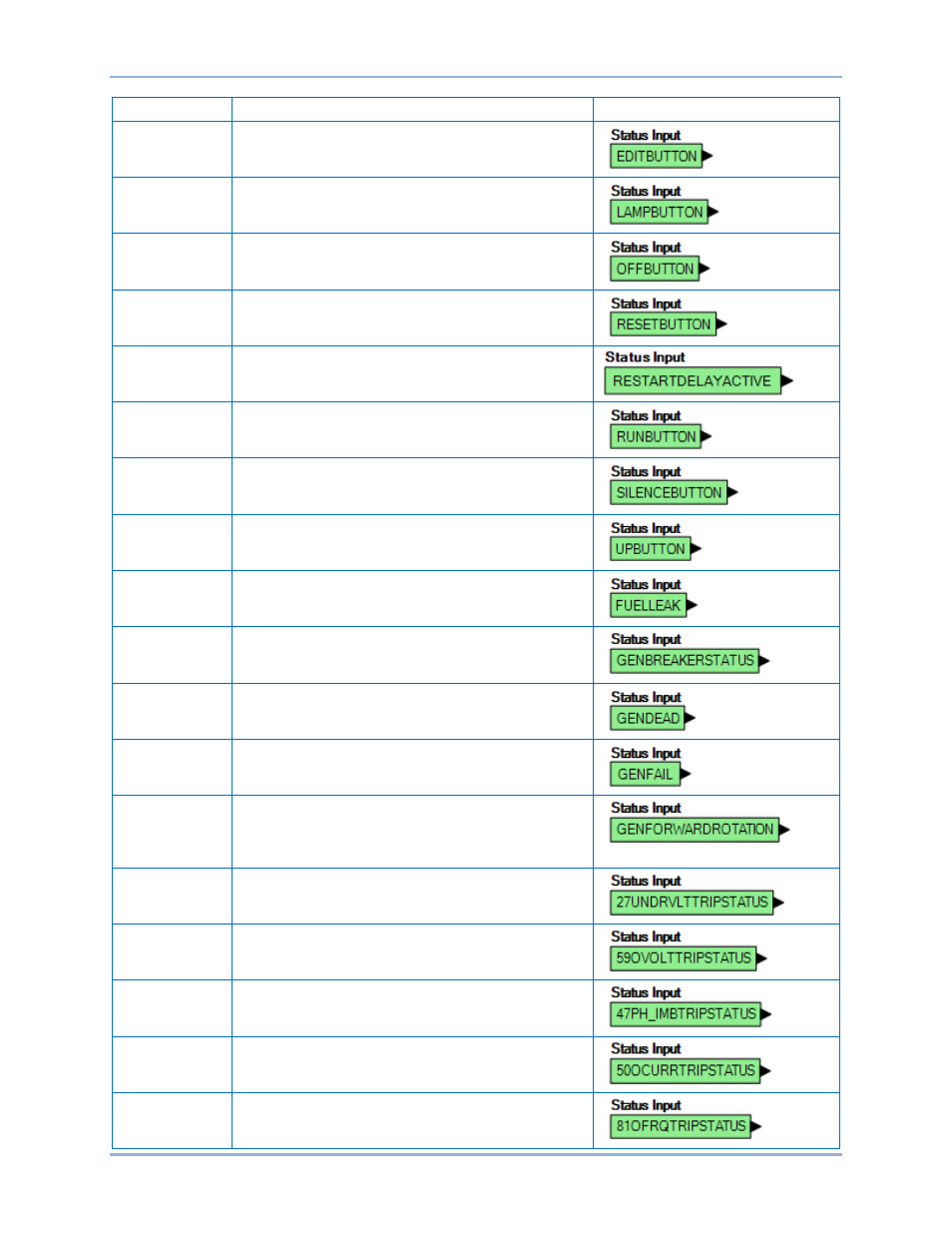

Name Description Symbol
Status Input
Front Panel
Buttons True while the Edit front panel button is pressed.
Status Input
Front Panel
Buttons True while the Up and Down front panel buttons are
simultaneously pressed.
Status Input
Front Panel
Buttons True while the Off front panel button is pressed.
Status Input
Front Panel
Buttons True while the Back front panel button is pressed.
Status Input
Restart Delay
Active True when the restart delay is currently active.
Status Input
Front Panel
Buttons True while the Run front panel button is pressed.
Status Input
Front Panel
Buttons True while the Back and Edit front panel buttons are
simultaneously pressed.
Status Input
Front Panel
Buttons True while the Up front panel button is pressed.
Status Input
Fuel Leak True when the Fuel Leak Detect input is true.
Status Input
Generator
Breaker Status True when the generator breaker is closed.
Status Input
Generator Dead True when the Gen Dead condition settings have been
exceeded.
Status Input
Generator Fail True when the Gen Fail condition settings have been
exceeded.
Status Input
Generator
Forward
Rotation True when the generator rotation matches the Phase
Rotation setting.
Status Input
Generator
Protection True when the 27 element is tripped.
Status Input
Generator
Protection True when the 59 element is tripped.
Status Input
Generator
Protection True when the 47 element is tripped.
Status Input
Generator
Protection True when the 50 element is tripped.
Status Input
Generator
Protection True when the 81 Over element is tripped.
BESTlogic
™Plus
DGC-2020ES
