Ethernet Configuration and Remote Programming SG Series Programming
5-8 M550129-03 Rev K
interface adapter. The following figures show the DIP switch configuration for
the Ethernet connection. On the Ethernet master, set the rear panel switch to
Remote On, and disregard all remaining switches.
Note: There is one of two types of DIP switches: toggle or rocker.
For toggle switches, the shading indicates the position of the toggle switch.
For rocker switches, the shading indicates the depressed side.

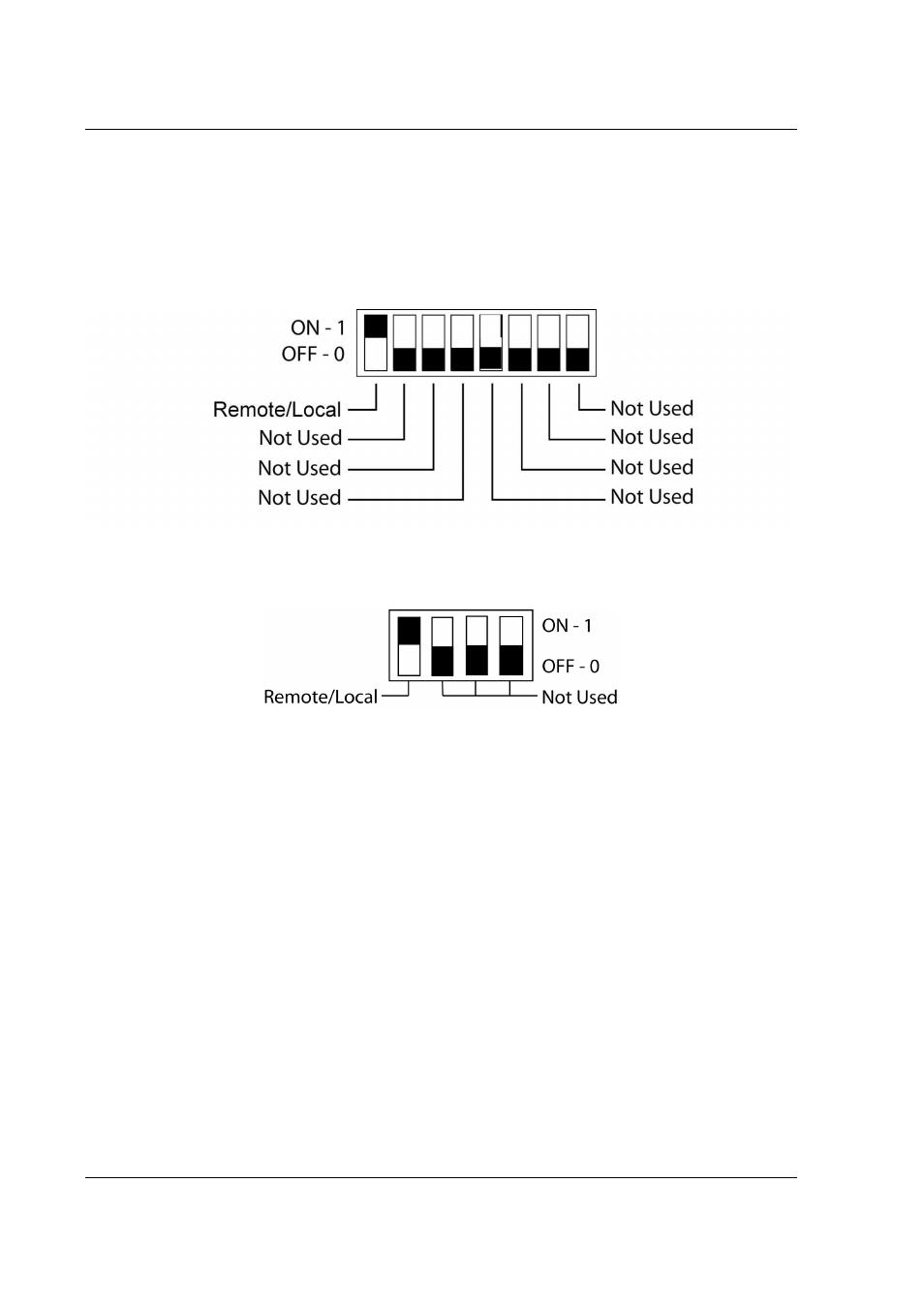

Figure 5-5. SG 8-pin Configuration Switch for the Ethernet Option
Figure 5-6. SG 4-pin Configuration Switch for the Ethernet Option
