Chapter 5 Configuring POS
ML-Series Card to ONS 15310 ML-100T-8 Card
Figure 5-3 ML-Series Card to G-Series Card POS Configuration
Example 5-7 shows the commands associated with the configuration of ML-Series card A.
Example 5-7 ML-Series Card A Configuration
hostname ML_Series_A
!
interface FastEthernet0
ip address 192.168.1.1 255.255.255.0
!
interface POS0
ip address 192.168.2.1 255.255.255.0
crc 32
!
router ospf 1
log-adjacency-changes
network 192.168.1.0 0.0.0.255 area 0
network 192.168.2.0 0.0.0.255 area 0
ML-Series Card to ONS 15310 ML-100T-8 Card
Figure 5-4 illustrates a POS configuration between an ML-Series card and an ONS 15310 ML-100T-8
card. For step-by-step circuit configuration procedures for the connected ML-100T-8 card, refer to the
Cisco ONS 15310-CL and Cisco ONS 15310-MA Ethernet Card Software Feature and Configuration
Guide.

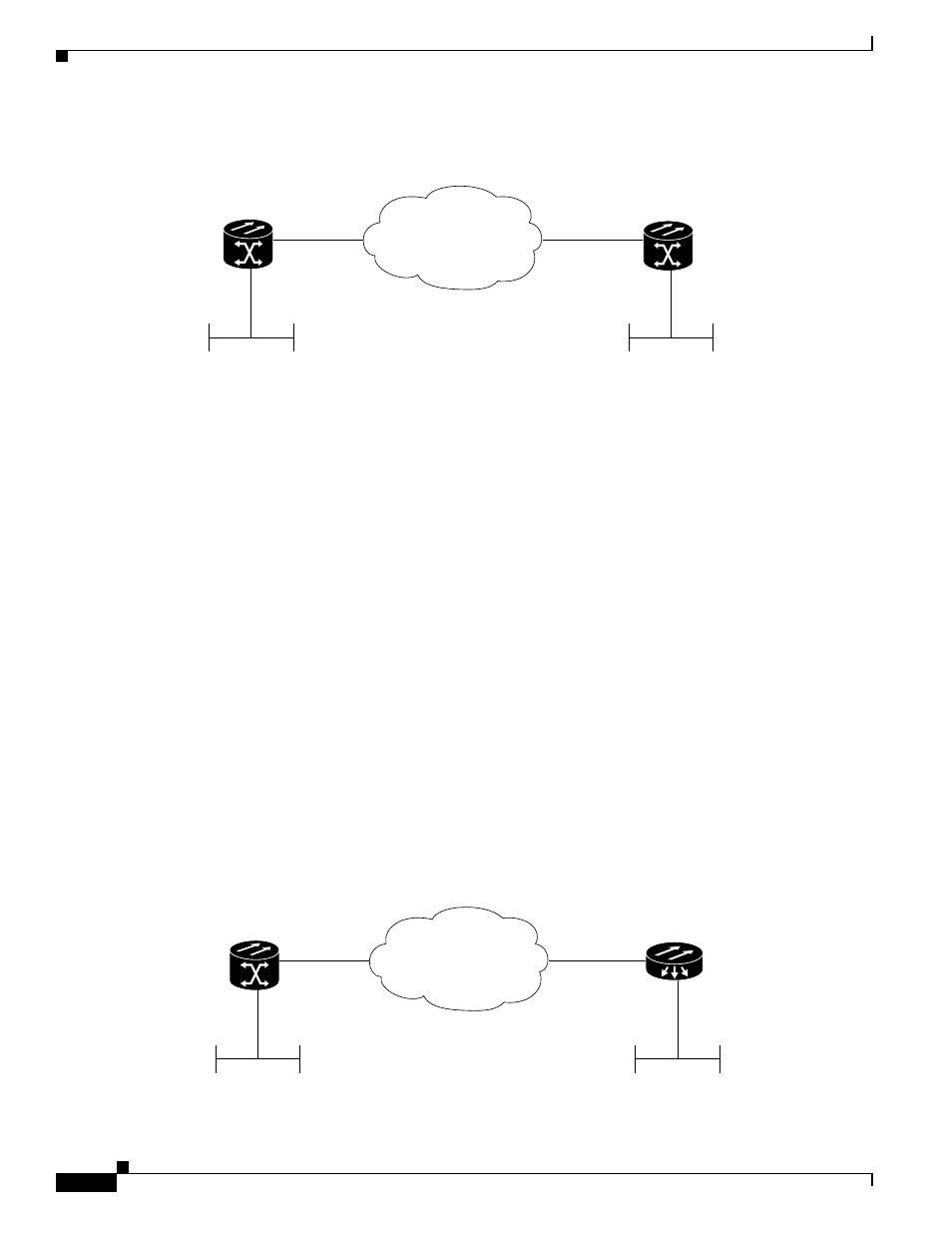

Figure 5-4 ML-Series Card to ONS 15310 CE-100T-8 Card Configuration
ONS 15454
with ML100T-12
fast ethernet 0
pos 0
ML_Series_A
SONET/SDH
192.168.1.1
192.168.2.1
ONS 15454
with G-Series
Ethernet
83125
ONS 15454
with ML100T-12
fast ethernet 0
pos 0 pos 0
fast ethernet 0
ML_Series_A
SONET/SDH
192.168.1.1
192.168.2.1 192.168.2.2
192.168.3.1
ONS 15310
with ML-100T-8
ML_Series_B
115725
