Chapter 18 Configuring Ethernet over MPLS
EoMPLS Configuration Example

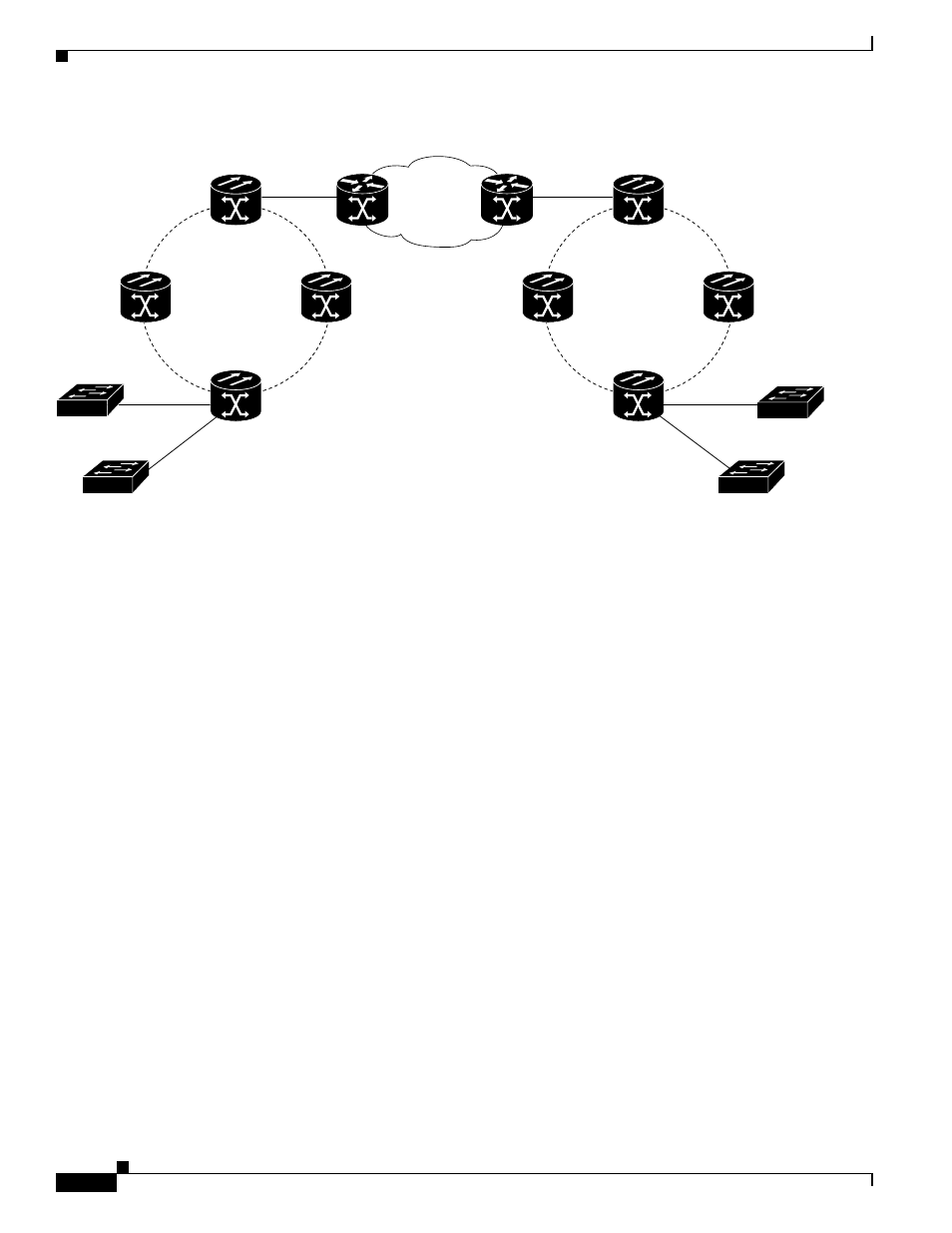

Figure 18-2 EoMPLS Configuration Example
Example 18-1 ML-Series Card A Configuration
microcode mpls
ip subnet-zero
no ip domain-lookup
!
mpls label protocol ldp
!
interface Loopback0
ip address 10.10.10.10 255.255.255.255
!
interface SPR1
ip address 100.100.100.100 255.255.255.0
no keepalive
spr station-id 1
mpls ip
hold-queue 150 in
!
interface GigabitEthernet0
no ip address
!
interface GigabitEthernet0.1
encapsulation dot1Q 10
mpls l2transport route 3.3.3.3 1
!
interface GigabitEthernet1
no ip address
mpls l2transport route 4.4.4.4 2
!
interface POS0
no ip address
spr-intf-id 1
crc 32
!
interface POS1
Core MPLS
RPR RPR
GigE 0.1
VC Type 4
SPR 1
GSR 12000
GigE 0
ML-Series Card A
ML-Series Card B
ML-Series Card C
ML-Series Card D
GigE 0
GigE 0.1
VC Type 4
SPR 1
GigE 1
VC T
ype
5
GigE 1
VC T
ype
5
