10-3
Ethernet Card Software Feature and Configuration Guide, R7.2
Chapter 10 Configuring Link Aggregation
EtherChannel Configuration Example
For information on other configuration tasks for the EtherChannel, refer to the
Cisco IOS Configuration Fundamentals Configuration Guide.
To assign Ethernet interfaces to the EtherChannel, perform the following procedure, beginning in global
configuration mode:
EtherChannel Configuration Example
shows an example of EtherChannel. The associated commands are provided in
(Switch A) and
(Switch B).

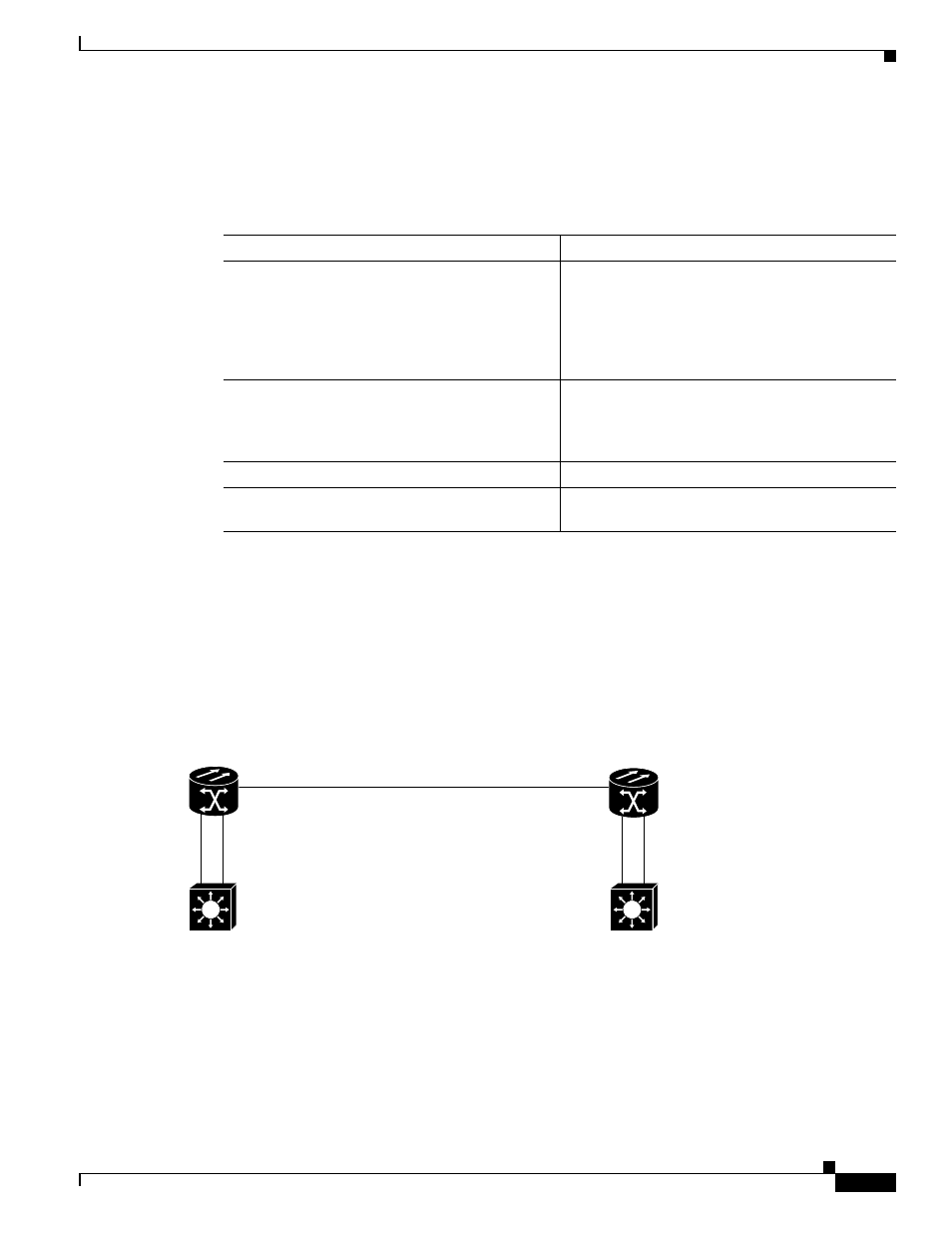

Figure 10-1
EtherChannel Example
Example 10-1 Switch A Configuration
hostname Switch A
!
bridge 1 protocol ieee
!
interface Port-channel 1
no ip address
Command
Purpose
Step 1
Router(config)# interface fastethernet
number
or
Router(config)# interface gigabitethernet
number
Enters one of the interface configuration modes to
configure the Fast Ethernet or Gigabit Ethernet
interface that you want to assign to the
EtherChannel. You can assign any Ethernet
interface on the system to the EtherChannel, but
both interfaces must be either FEC or GEC.
Step 2
Router(config-if)# channel-group
channel-number
Assigns the Fast Ethernet or Gigabit Ethernet
interfaces to the EtherChannel. The channel
number must be the same channel number you
assigned to the EtherChannel interface.
Step 3
Router(config-if)# end
Exits to privileged EXEC mode.
Step 4
Router# copy running-config startup-config
(Optional) Saves configuration changes to
NVRAM.
ONS 15454
with ML100T-12
Fast Ethernet 0
POS 0
POS 0
Fast Ethernet 0
SONET STS-N
ONS 15454
with ML100T-12
Fast Ethernet 1
Fast Ethernet 1
bridge-group 1
bridge-group 1
83234
Port-Channel
bridge-group 1
Port Channel
bridge-group 1
Switch_A
Switch_B
