O H z 5 0 H z
Output frequency
6 0 H z O H z 6 0 H z 8 0 H z
Output frequency
Note 2) When
Note 3)
fc y P

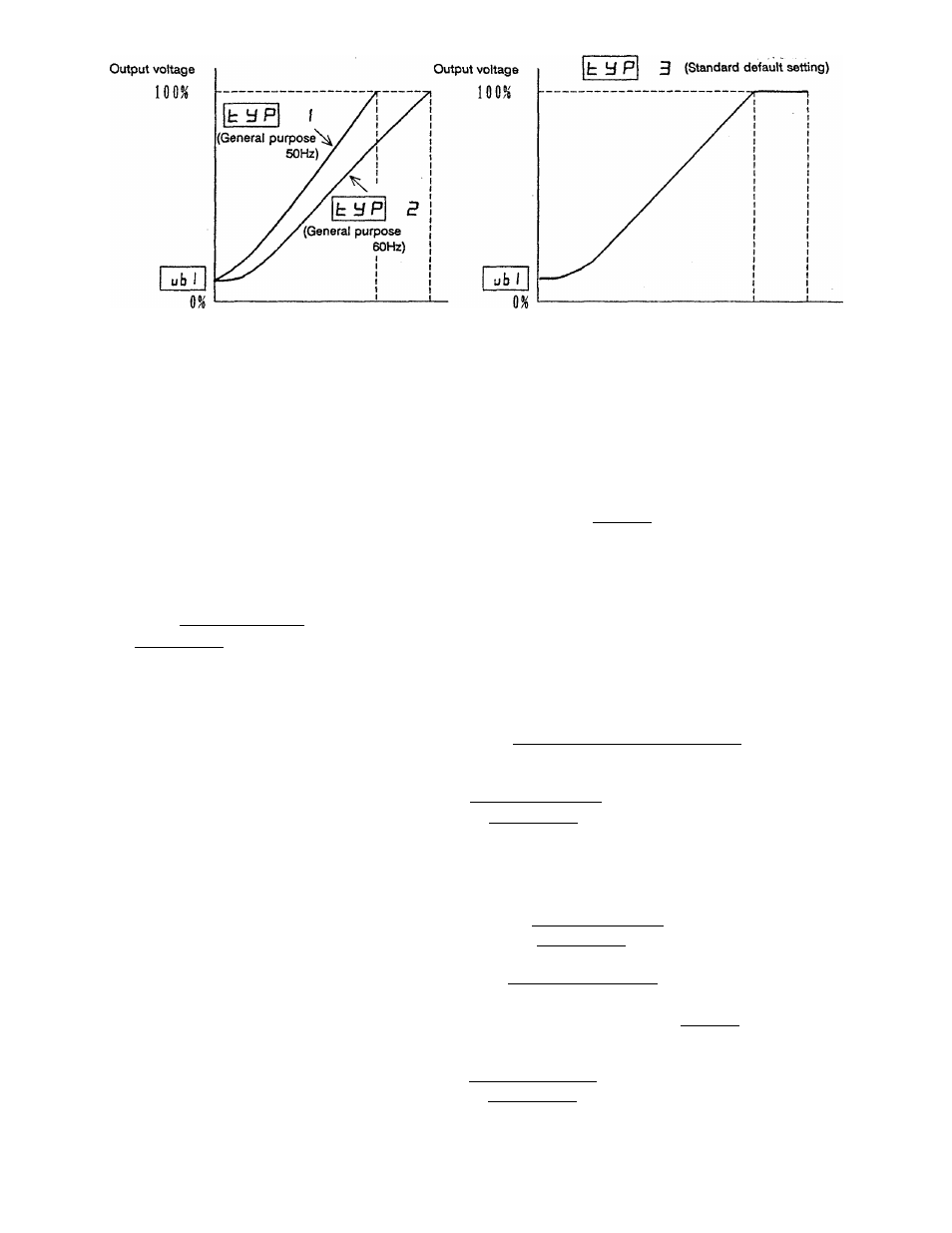

Fig. 7.5 Standard Setting Value
= 3 is selected, all parameters other than those in C i - . R n will return
to factory settings.
= 1 is used to clear an E t y P error that may occur when a control PCS is t yp
installed in a different inverter unit, and to reset the typeform to that of the new inverter.
Verify that the inverter typeform contained in the table on page 124 matches the
value of F O r n in C n . U t , and then execute the fc y P function.
7.4.6 Selection of Stopping Method from the Panel
In addition to the normal decelerated stop (deceleration according to the set deceleration time) with the
STOP/RESET key, the following stopping methods can be used from the panel.
Stopping method Operation Method and setting
Coast-stop The power output to
the motor from the
inverter is shut off,
so the motor will
coast and then
stop.
This is possible only when operation from the panel is
valid.
1. Press PANEI7REMOTE during panel run.
2
.
3.
Standard monitor mode will be entered, and the LED
will display C t r L ■
Coast-stop will be activated by pressing
STOP/RESET . (If another key is pressed, the
C t r L display will go out and the process will be
canceled. The process will also be canceled if the key
is not pressed within 3 seconds.)
Emergency stop
(To forcibly stop
with the panel when
not in panel run
mode.)
Select from the
following:
• Coast-stop
• Decelerated stop
• Emergency DC
injection braking
stop
(note)
The default setting
of |E 5 fc P| in
Assume that terminal block run mode is active. (Normal
stopping is possible when in panel mode.)
1
.
2.
3.
4.
Press the STOP/RESET key.
Standard monitor mode will be entered, and the LED
will display E 0 F F .
Press STOP/RESET again.
and the motor will stop
in ESfc P
The LED will display E
according to the setting of
a i ~ . p r ~
This mode will be canceled if a key other than
STOP/RESET is pressed when E d F F is
C r . P r -
coast-stop.
IS
displayed.
- 4 3
-
