STEERING-IVT

88

Wheel alignment

NOTE: The transmission neutral adjustment
must be done prior to adjusting the steering link-
age.

1.

Remove the three screws holding each steering
gear cover in place. See Figure 6B.21.

2.

Rotate the front tires until the marks on the axle
gears and the steering gears align.
See Figure 6B.22.

3.

Insert a 5/16” pin through the hole in the steer-
ing gear on each side. The pins should pass
through the gears, through the lower cover plate
and into the pivot bar. See Figure 6B.23.

NOTE: If the alignment is off, the holes may not
line up. If this is the case, adjust the front end by:

3a. Loosen the jam nuts on both ends of the

drag link. See Figure 6B.24.

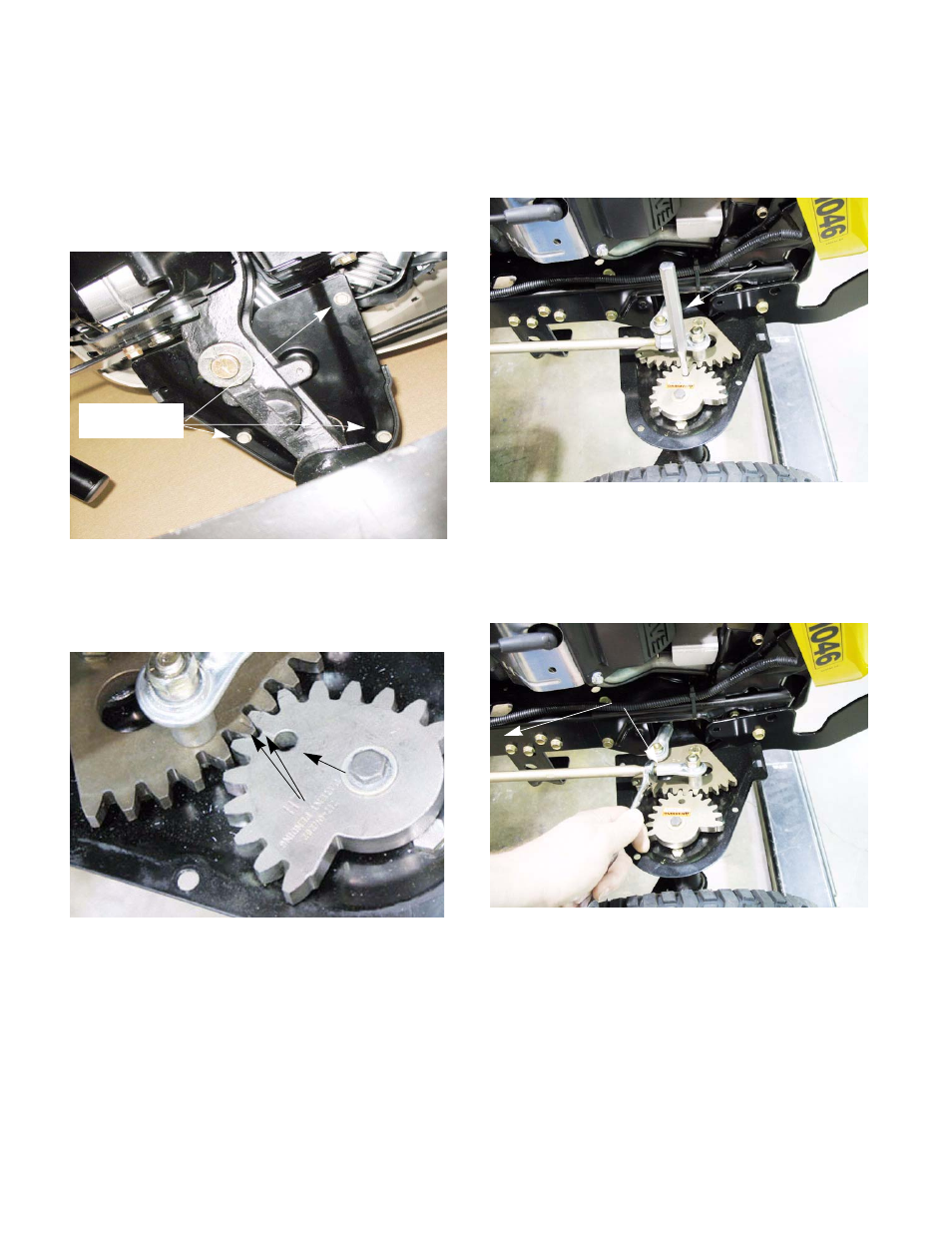

Figure 6B.21

Remove
these screws

Figure 6B.22

Align the timing marks

Insert a 5/16” pin
here

Figure 6B.23

5/16” punch

Figure 6B.24

Loosen both jam nuts
