STEERING-HYDROGEAR
79
22.
Install the pivot bar by following steps 3 - 7 in
reverse order.
NOTE: When installing the pivot bar, use a
clamp to line up the screw holes in the frame,
pivot bar and bumper mounting brackets.
See Figure 6A.100.
23.
Slide the front wheels on and secure them with
new cotter pins.
NOTE: Make sure the washer is installed
between the wheel bearings and the cotter pin.
24.
Push the hub caps on till they snap in place.
25.
Take the tractor off of the jack stands.
26.
Perform a neutral adjustment and wheel align-
ment as described in the beginning of this chap-
ter.
27.
Test drive the tractor in a safe area before
returning to service.

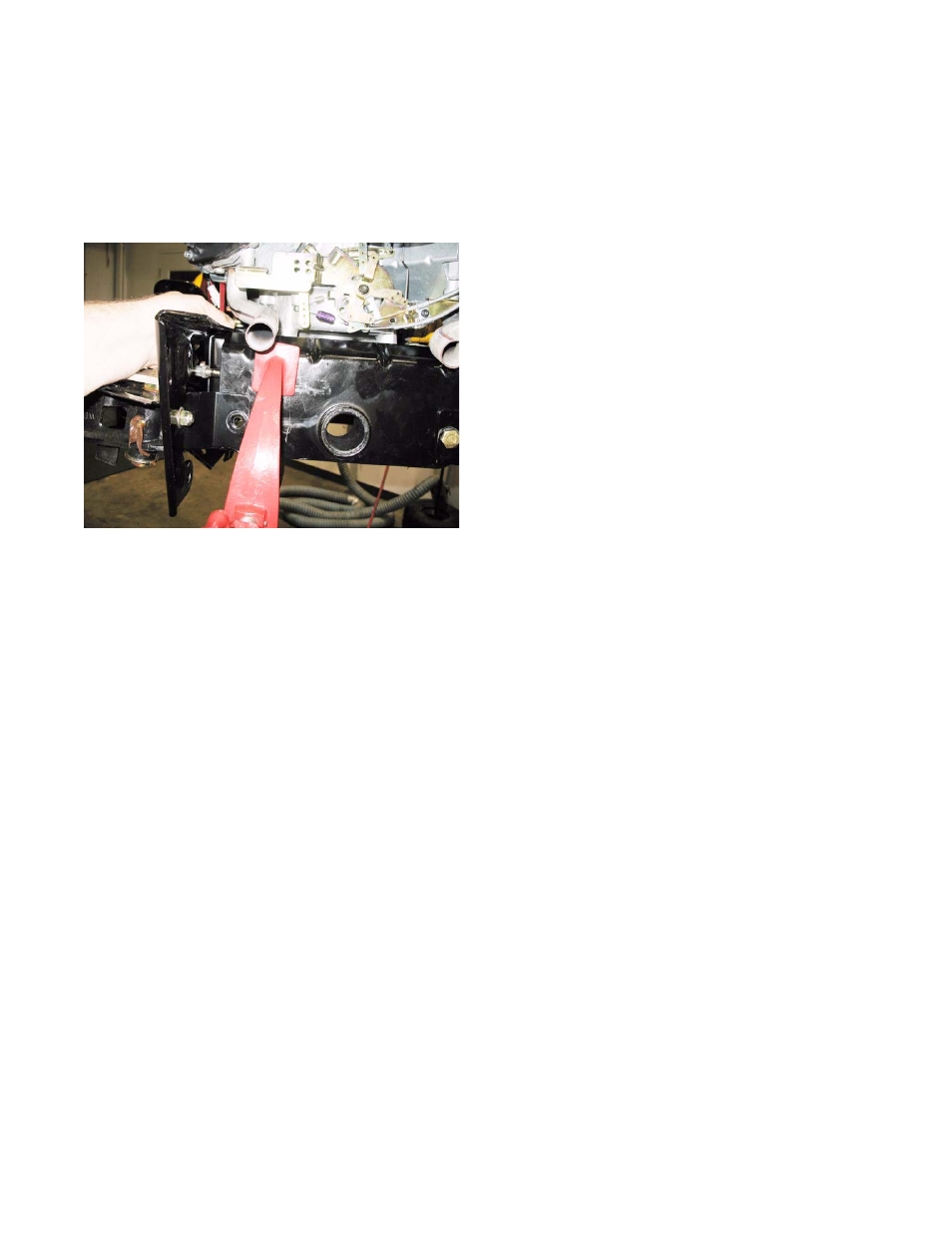

Figure 6A.100
