Cub Cadet ISeries User Manual
Page 68

STEERING-HYDROGEAR
62
13.
Inspect the input sector gear bushings for dam-
age and/or signs of wear. If they show signs of
wear of damage, press both of the bushings out
of the input sector gear using a press.
See Figure 6A.41.
14.
Remove the internal cam, the washer under it
and the steering shaft. See Figure 6A.42.
15.
Remove both of the bevel gears.
See Figure 6A.43.
16.
Remove the spiral ring from the post on the
bevel gear. Slide the roller off of the bevel gear.
See Figure 6A.44.

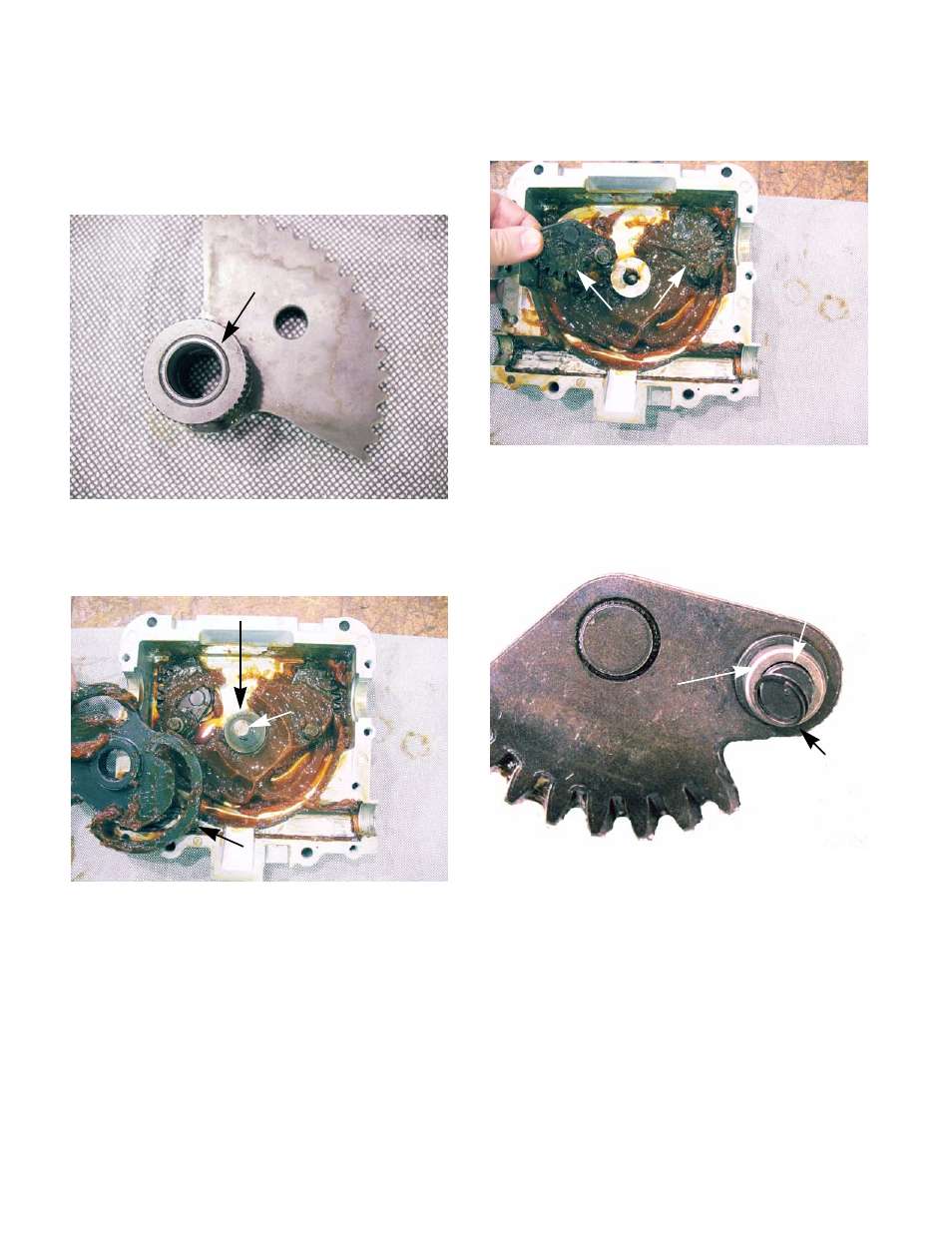

Figure 6A.41
Press out the
bushings
Figure 6A.42
Internal cam
Washer
Steering
shaft
Figure 6A.43
Bevel gears
Figure 6A.44
Spiral ring
Post
Roller
