DRIVE SYSTEM-IVT
47
15. Install the right side brake link onto the brake
pedal shaft using a new cotter pin.
See Figure 5B.61
16. Install the reverse drive pedal shaft.
16a. Rotate the reverse drive pedal shaft into
the reverse pedal support.
See Figure 5B.45
16b. Install the split hex bushing.
NOTE: The split must face up while the bushing
is installed.

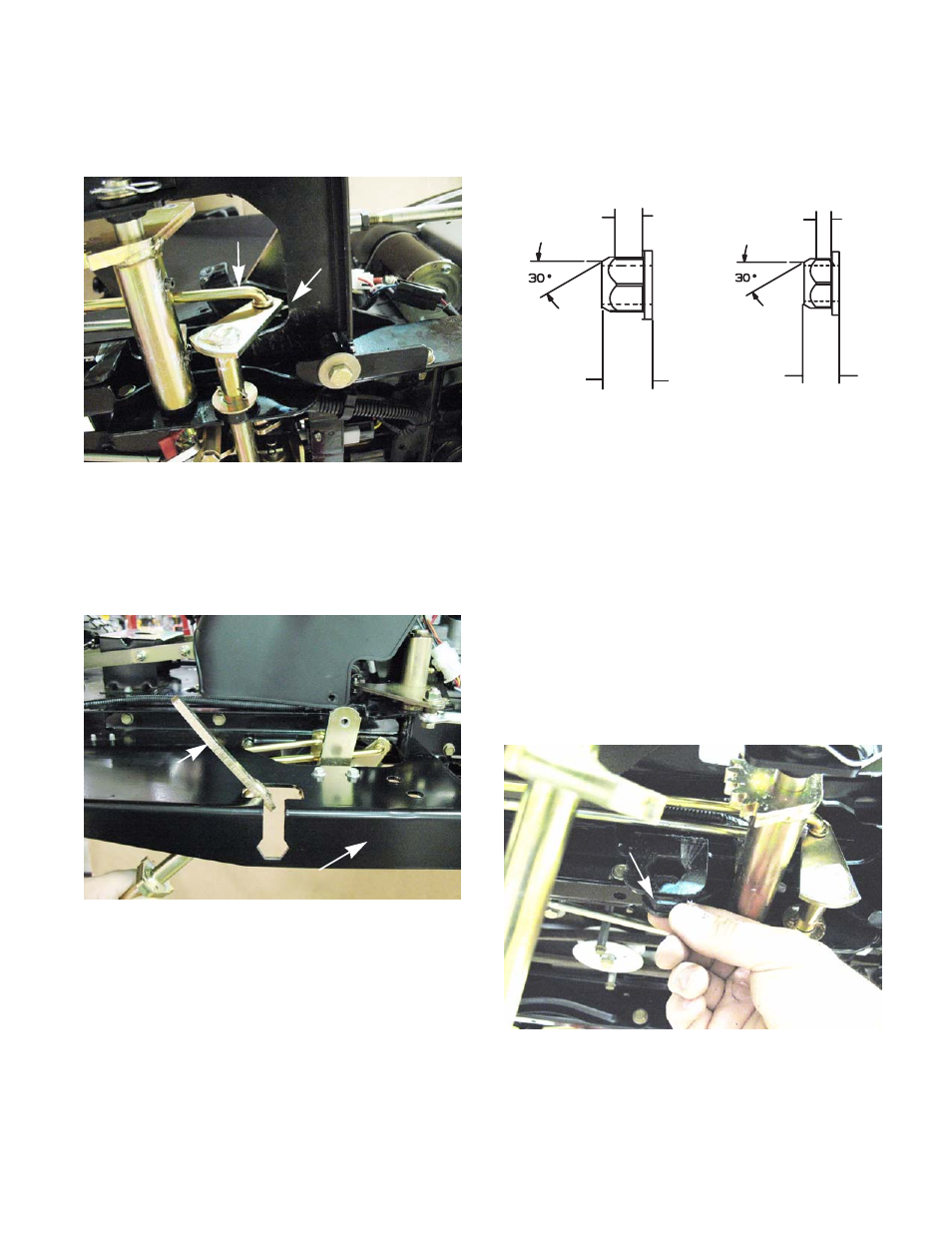

Figure 5B.61
Brake link Cotter
pin
Figure 5B.62
Reverse pedal support
reverse drive
pedal shaft
16c. Modify the hex bushing by:
• Cut or grind the bushing to an overall height
of 1/2” . See Figure 5B.63
• Grind a 30 o tapper on the hex end of the
bushing.
NOTE: The hex part of the bushing must be at
least 0.2” in height.
NOTE: Using a modified bushing will allow the
bushings on the reverse drive pedal shaft to be
serviced in the future without taking the fenders
off of the tractor.
16d. Install the modified hex bushing.
See Figure 5B.64
´
´ ´
´
1(: 02',),('
Figure 5B.63
Figure 5B.64
Modified hex bushing
