DRIVE SYSTEM-IVT
44
8. Remove the hair pin clip, washer and hex bush-
ing from the right side of the main drive pedal
shaft. See Figure 5B.49
9. Drive out both of the roll pins securing the drive
pedal bracket to the main shaft using a 1/4” pin
punch. See Figure 5B.50
10. Remove the three screws that secure the
reverse pedal support using a 1/2” wrench.
See Figure 5B.51
11. Lift up on the outer edge of the reverse pedal
support while rotating it to the front to remove
the support.
12. Slide the drive pedal bracket off of the main
shaft.
13. Remove the rear screw on both sides of the
drive pedal shaft support bracket.
See Figure 5B.52
14. Remove the middle hex bushing.
See Figure 5B.52

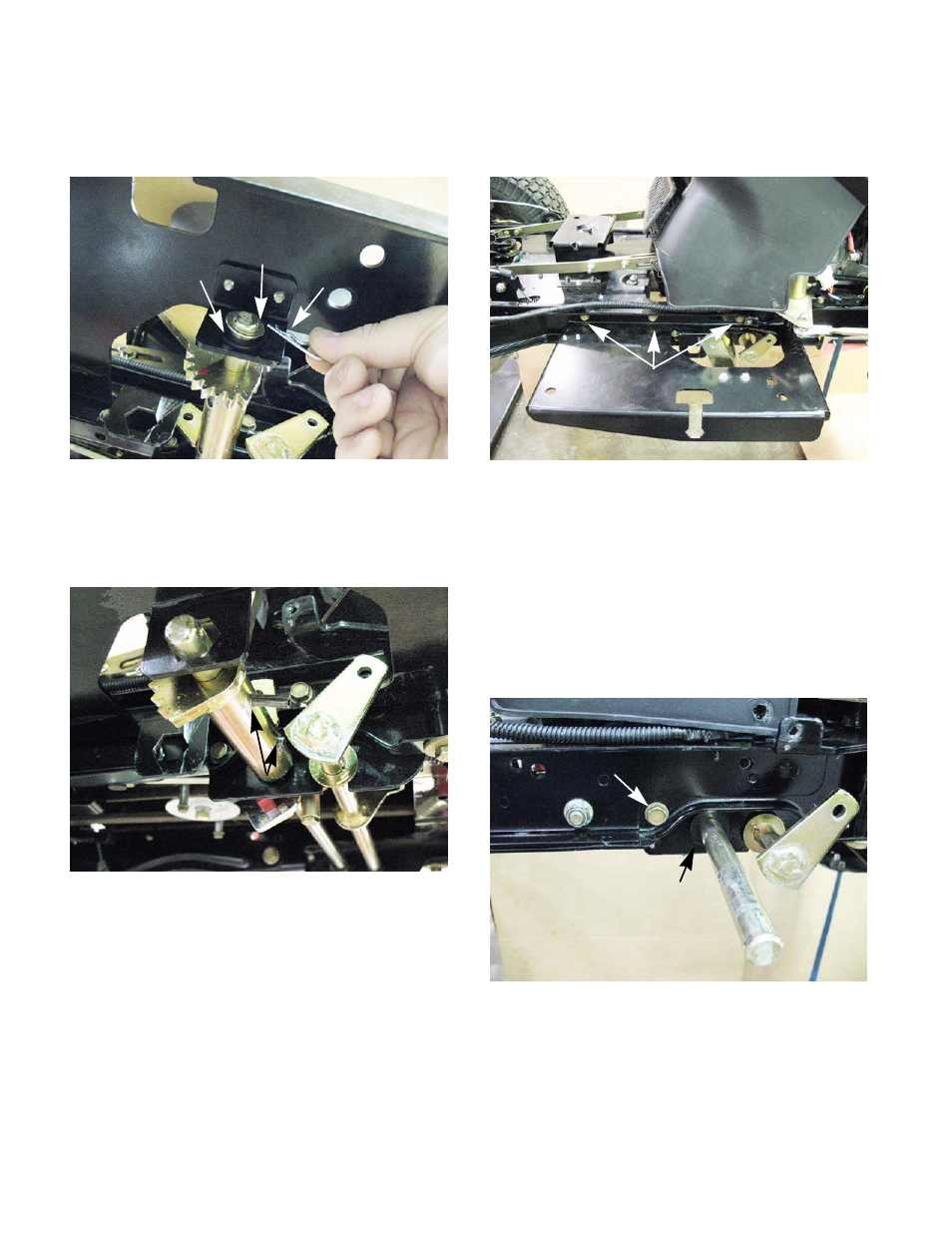

Figure 5B.49
Washer
Hair pin clip
Hex bushing
Figure 5B.50
Roll pins
Figure 5B.51
Remove these screws
Figure 5B.52
Remove this screw
Middle hex
bushing
