ENGINE RELATED PARTS

5

Exhaust pipes

The exhaust pipes are manufactured by Cub

Cadet. To remove/replace the exhaust pipes:

1.

Remove the muffler following the steps
described in the previous section.

2.

Remove the mounting bolts using a 1/2” wrench.
See Figure 2.7.

3.

DIscard the old exhaust gaskets. Clean all gas-
ket material from the cylinder head (and exhaust
pipe if it is being reused.

4.

Using new gaskets, install the exhaust pipes fol-
lowing the above steps in reverse order.

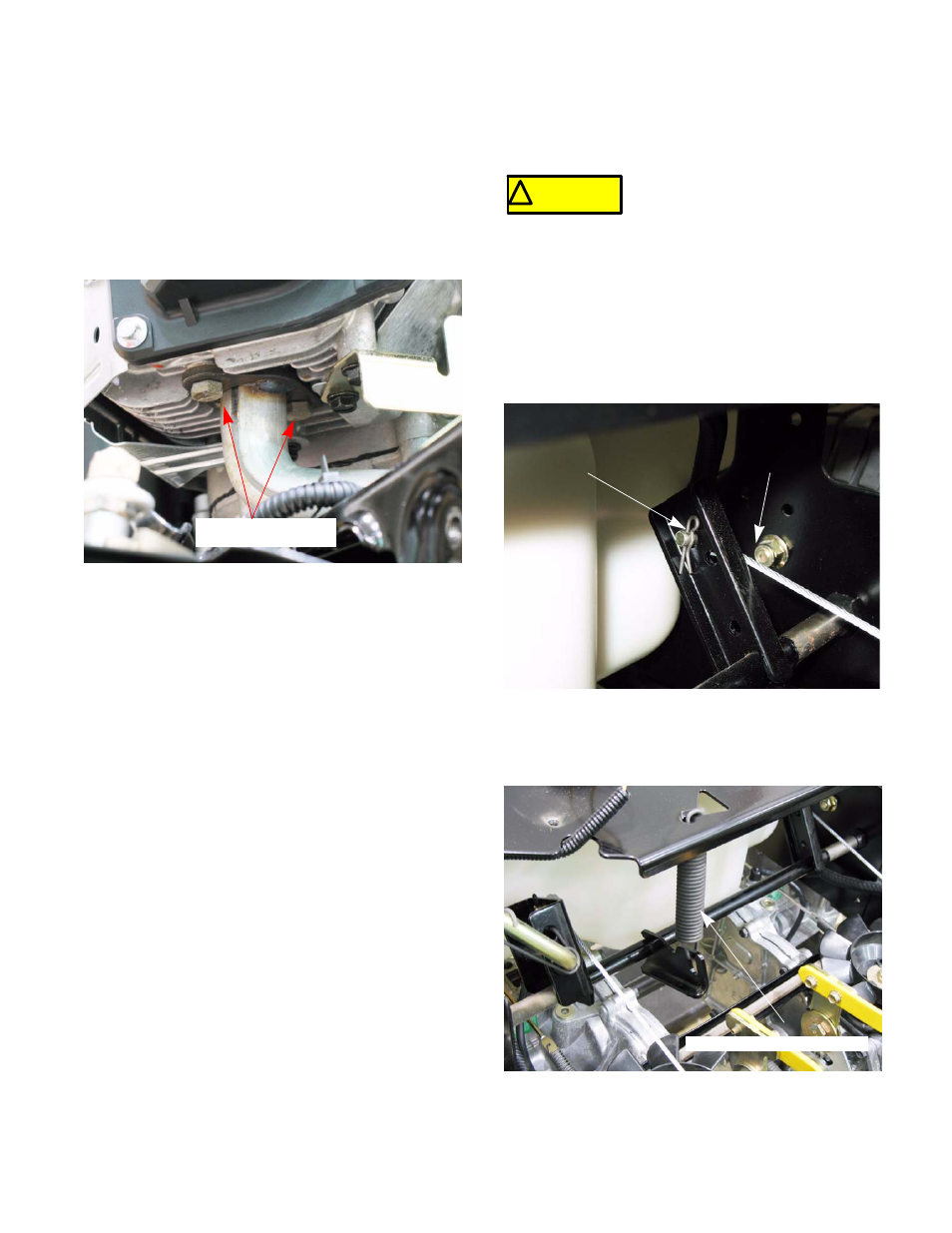

Figure 2.7

Remove these bolts

Fuel tank removal/replacement

Remove/replace the fuel tank by following these steps:

1.

Remove the deck.

2.

Remove the fender by following the steps
described in Chapter 4: Body/Chassis.

3.

Remove the hair pin clips retaining the deck lift
cables and disconnect the cables.
See Figure 2.8.

4.

Unhook the deck lift assist spring.
See Figure 2.9.

! CAUTION

! CAUTION

Gasoline and it vapors are
extremely flammable. Use common
sense when working around the fuel

system

Hair pin clip

Deck lift cable

Figure 2.8

Figure 2.9

Deck lift assist spring
