ELECTRICAL SYSTEM
130
3f. With the engine off, connect Kohler tool #25
7651-20 to the regulator/rectifier: The two
black leads go to the terminals normally
connected to purple stator leads. The red
lead goes to the center terminal (B+). The
ground clip goes to ground.
3g. Plug the tester into a 110V AC outlet, turn it
ON and push the test button until it clicks.
Repeat the test to confirm.
3h. Read the illuminated jewel for the verdict.
See Figure 7.31.
NOTE: A flashing “LOW” jewel may result from a
poor ground connection.
NOTE: If the regulator rectifier is being tested
on the engine, check the ground quality using
the voltage drop test described elsewhere in this
section.
Batteries
1. Precautions: See Figure 7.32.
• Do not smoke or allow an open flame or heat
source near the battery.
• Charge batteries in an open area
• Wear eye protection and acid resistant gloves
when handling batteries.
• Do not allow direct metal contact across the
posts. This will produce extreme heat that may
cause direct burns or ignite flammable gas.
NOTE: The batteries used in Current Cub Cadet
equipment are sealed. It is not possible to check,
test or add fluid.

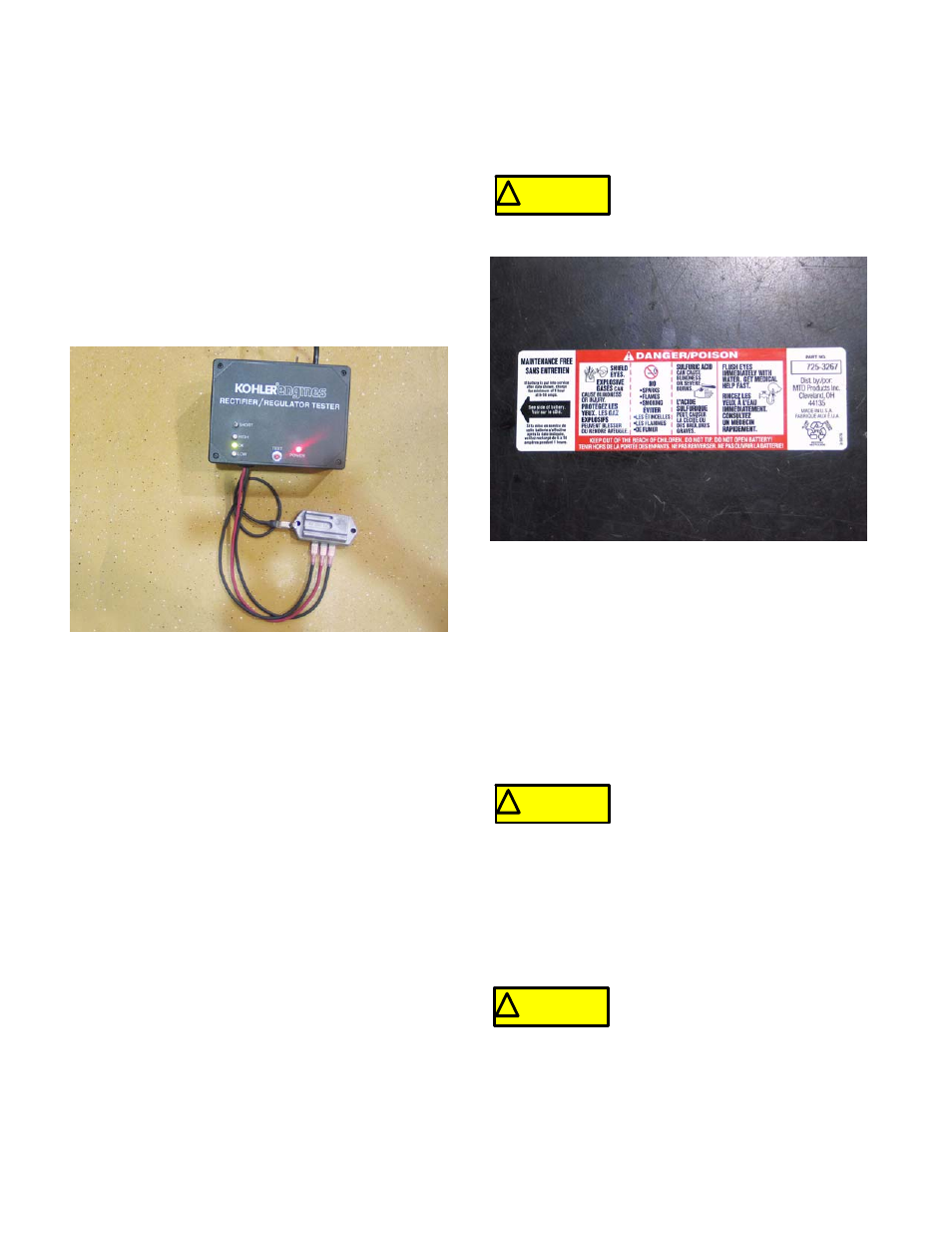

Figure 7.31
! CAUTION ! CAUTION
Batteries produce flammable and
explosive gases, particularly during
charging.
Figure 7.32
Precautionary battery label
! CAUTION ! CAUTION
California Proposition 65 warning:
Battery posts, terminals, and related
accessories contain lead and lead
compounds. These chemicals are known in the State
of California to cause cancer and reproductive harm.
Wash hands after handling.
! CAUTION ! CAUTION
Batteries contain electrolyte, which
is highly corrosive. If a battery is
ruptured, neutralize the electrolyte
with baking soda, then carefully rinse the effected area
with water.
